Specifications
Brand Name :
Comelink
Model Number :
2P
Certification :
ROHS/ISO9001/CE
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
USD 15.2 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500+PCS+per week
Delivery Time :
7 days
Packaging Details :
Carton
Material :
Plastic
Wavelength :
TX: 1310nm, RX: 1490nm
Weight :
0.24Kg
Dimension :
180mm*107mm*28mm
Optical Interface :
SC/UPC Connector
Power Consumption :
≤6W
Power Supply :
DC 12V/1A
Description
OUR ONU :
1. Come-2P is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services.
2. Come-2P is based on mature and stable, cost-effective XPON technology.
3. Come-2P adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

Port characteristics:

1.Support EPON/GPON mode and switch mode automatically
2.Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
3.Support IPv4 and IPv6 dual mode
4.Support 2.4G WIFI and Multiple SSID
5.Support LAN IP and DHCP Server configuration
6.Support Port Mapping and Loop-Detect
7.Support Firewall function and ACL function
8.Support IGMP Snooping/Proxy multicast feature
9.Support TR069 remote configuration and maintenance
10.Specialized design for system breakdown prevention to maintain stable system

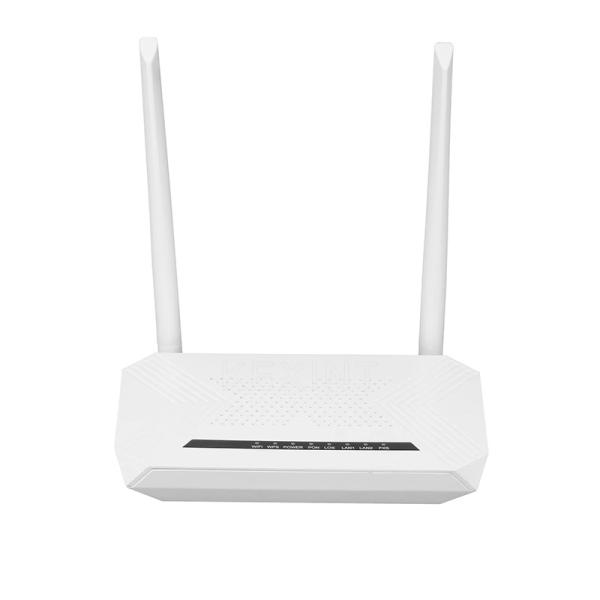

Panel lights Introduction:
Pilot Lamp
Status
Description
WIFI
On
The WIFI interface is up.
Blink
The WIFI interface is sending or/and receiving data (ACT).
Off
The WIFI interface is down.
WPS
Blink
The WIFI interface is securely establishing a connection.
Off
The WIFI interface does not establish a secure connection.
PWR
On
The device is powered up.
Off
The device is powered down.
LOS
Blink
The device doses not receive optical signals or with low signals.
Off
The device has received optical signal.
PON
On
The device has registered to the PON system.
Blink
The device is registering the PON system.
Off
The device registration is incorrect.
LAN1~LAN2
On
Port (LANx) is connected properly (LINK).
Blink
Port (LANx) is sending or/and receiving data (ACT).
Off
Port (LANx) connection exception or not connected.

Hardware specification:

Technical item
Details
PON Interface
1 GPON BOB (Bosa on Board)
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0.5~5dBm
Transmission distance: 20KM
Wavelength
TX: 1310nm, RX: 1490nm

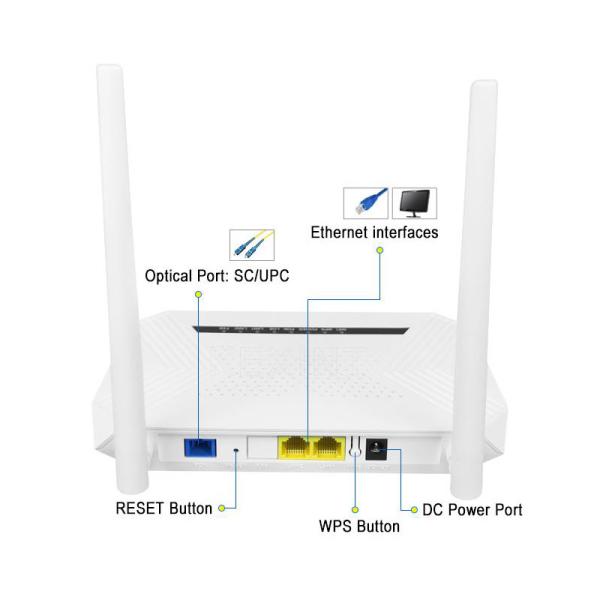

Optical Interface
SC/UPC Connector
Design Scheme
RTL9602C+RTL8192FR BOB(RTL8290B)
Flash
SPI Nor Flash 16MB
LAN Interface
1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless
Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED
7 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2
Push-Button
3,For Function of Reset, WLAN, WPS
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%(non-condensing)
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply
DC 12V/1A
Power Consumption
≤6W
Dimension
180mm×107mm×28mm(L×W×H)
Net Weight
0.24Kg
