Specifications
Brand Name :
Comelink
Model Number :
XP44
Certification :
ROHS/ISO9001/CE
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
USD 20 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500+PCS+per week
Delivery Time :
7 days
Packaging Details :
Carton
Network :
wifi, 4g
Power Supply :
DC 12V 1A 1.5A
Optical Wavelength :
T*1310nm,Rx 1490nm
Adaptor Type :
SC/UPC SC/APC
Operating temperature :
- 5 ~ 55 ℃
Description
OUR ONU COMPLY WITH:
1. ITU-T g.984 standard
2. 802.11 n / B / g protocol standard
3. H.248, MGCP and SIP protocol standards

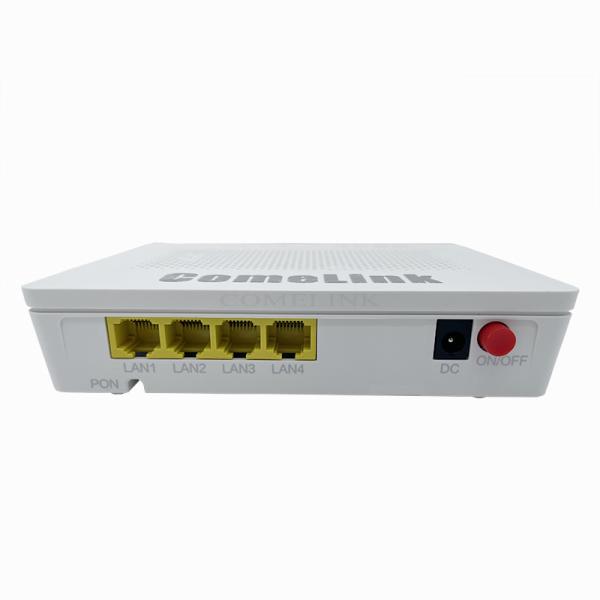

Port characteristics:

PON: Connect the OLT equipment at the source end through the optical fiber line.
Ethernet port: Connected to user side equipment through twisted pair network cable, lan 1 port speed is 10 / 100 / 1000 m, adaptive, lan 2 - lan 4 Port rate is 10 / 100 M adaptive.
Reset button: Restart the equipment; Press and hold for more than 3 seconds and the system will return to the factory default.
Led button: LED indicator on / off
Power switch: Power on / off
Power interface: Connected to external power supply.
OUR ONU SUPPORT:
1. 4094 VLANs
2. data encryption
3. 2.6.3 IgM snooping
4. power failure alarm
5. GPON / EPON dual mode
6. power lightning protection
7. dynamic bandwidth allocation
8. frame filtering and suppression
9. remote reset and restart functions
10. status detection and fault reporting
11. PPPoE, ipoe, bridge and other services
12. the function of restoring factory parameters
13. the standard 802.1Q VLAN function and VLAN conversion
14. Ethernet port speed limit, loop detection and layer-2 isolation
15. layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
16. QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic control

Optical properties:
support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
interface type: SC / APC
maximum spectral ratio: 1:128
rate: uplink 1.25gbps, downlink 2.5Gbps
receiving wavelength: 1490nm
transmission wavelength: 1310nm
output optical power: - 1 ~ + 4dbm
receiving sensitivity: < - 27dBm
The longest distance between OLT and ONU is 20km
power supply: DC 12V 1A 1.5A
Humidity: 10 ~ 90% non condensing
Operating temperature: 0 ° ~ 40 ℃
Storage temperature: - 40 ° ~ 70 °
