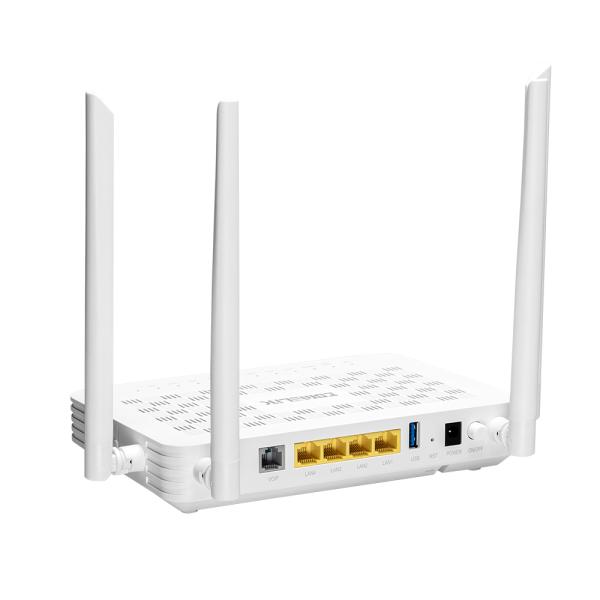

COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
Specifications
Brand Name :
Comelink
Model Number :
COME-445G
Certification :
ROHS/ISO9001/CE
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
USD 25 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500+PCS+per week
Delivery Time :
7 days
Packaging Details :
Carton
Power Source :
DC 12V/1.5A
Power Consumption :
≤15 W
Distance :
0~ 20Km Max
Typical Solution :
FTTO/FTTB/FTTH/FTTR
Optical output power :
-1~+4dBm
Receiving sensitivity :
< -25dBm
Description

XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu

The AC1200 WIF5 ONU is designed and manufactured for a next-generation Passive Optical Network (XPON) terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 1.244Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences, and WIFI(2.4G & 5.8G).

Feature:

✦ PON: connect the OLT equipment at the source end through the optical fiber line
✦ Ethernet port: connected to user side equipment through twisted pair network cable, lan1 port speed is 10 / 100 / 1000m, adaptive, lan2-lan4 end Adaptive port rate of 10 / 100M
✦ WiFi button: wireless routing function on / off
✦ Power switch: power on / off
✦ Power interface: connected to external power supply

FTTR Home Terminal All Optical Main Gateway Product Form:

1 * GPON, 4 * GE electrical port,

1 * USB, AC1200 WiFi5

1 * POTS voice port

COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu

Specification:

ITEM
All-Optical Main COme-445G
Port
Uplink Port: XGPON Combo Interface
line Rate: XGPON downlink 9.95328Gbps, uplink 2.48832Gbps；GPON downlink2.48832Gbps,uplink 1.24416Gbps；
Downlink Port:1*GPON,1 * GPON, cascaded optical routing through splitters, can support up to 16 optical routing accesses.
4 * GE port, 1 * USB; AC1200 Dual band WiFi5; 1 * POTS voice port
Port Working Wavelength of Xgpon Combo
Complies with ITU-T G.987/G.988 standards
Central wavelength:XGPON downlink 1577nm ,uplink1270nm；
GPON downlink 1490nm,uplink 1310nm
Optical Interface Type
SC/UPC
Processor Capability
Dual Core 1G Hz
RAM
4Gbit SDRAM
Storage
2Gbit Nand Flash
EasyMesh
Support
VLAN
Support
Power Supply
Ac: Input 90 ~ 264V, 47 ~ 67Hz;
Adapter output DC: 12V/2A
Consumption
≤15W
Weight
≤0.7kg
Dimension(L*W*H)
240*160*41(cm)
Environmental Parameters
Operating Temperature:-5°C～45°C
Storage Temperature:-40°C～70°C
Relative Humidity:10%～90%,no condensation
Button
Reset Button, WiFi Switch Button, WPS

COMELINK XPON ONU AC1200 WIFI5 4GE+1POTS+WIFI 2.4G&5.8G Wireless Onu
