10A Multipurpose Wire Cutting Machine MS 430AC Vibration Resistant
10A Multipurpose Wire Cutting Machine MS 430AC Vibration Resistant
10A Multipurpose Wire Cutting Machine MS 430AC Vibration Resistant
10A Multipurpose Wire Cutting Machine MS 430AC Vibration Resistant
Specifications
Brand Name :
Li Zhun
Model Number :
MS-430AC
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 Work Days
Packaging Details :
Wooden Box
Type :
Wire Cutting
Condition :
New
Warranty :
1 year
Machine Dimension :
1650mm*1350mm*2000mm
Machine Weight :
1450kg
Max Work Current :
10A
Description

High Efficiency Wire Cutting Machine MS-430AC High Precision and Rigidity

Product Description

The MS-430AC is a wire cutting machine which features in high precision, high rigidity and high efficiency. The machine is mainly composed of machine tool, numerical control system and high frequency power supply. It has high strength and excellent load capacity due to the excellent structural design. It uses the V-shape long span and long guiding rail structure lined with steel which helps the stability. The feeding wire part of the machine uses the driving system of gearwheel with lower noise and longer service life.The wire tube uses the chroming material with good wear resistance. The power supply adopts the advanced and unique pulse power supply, which can achieve high speed, output super current and super small pulse width, and also can achieve high precision and high finish. It uses high precision ball screw, which has high transmission efficiency, good positioning accuracy, long service life and well synchronization.

Main Features

  • High Precision and Rigidity
  • Excellent Structural Design
  • Maximum Workpiece Weight: 500kg
  • Positioning Accuracy: 0.01mm
  • Re-positioning Accuracy: 0.005mm
  • Machining Accuracy: ±0.003mm
  • Max Work Current: 10A
  • High Precision Ball Screw

Main Parameters

Specification & Models MS-430AC
Worktable Travel (X,Y) 400*320mm
Worktable (W*D) 750*550mm
Working Tank Dimensions(W*D*H) 880*650*450mm
Taper Axis Travel (U, V) 60*60mm
Maximum Cut Taper 6°/80mm
Z Axis Travel 280mm
Maximum Workpiece Thickness 300mm
Maximum Workpiece Weight 500kg
Speed of Electrode Wire (group wire) 1.18-11.18m/s
Diameter of Electrode Wire (group wire) 0.16-0.22mm
Tension of Electrode Wire (wire group) 10-30N
Positioning Accuracy 0.01mm
Repositioning Accuracy 0.005mm
Machining Accuracy ±0.003mm
Power Supply 380V50/60Hz1.5KVA
Max Work Current 10A
Maximum cutting speed ≥280mm²/min
Tank Size 80L/550*455*320mm
Control Cabinet Size 580*580*1860mm
Machine Dimension 1650*1350*2000mm
Machine Weight 1450kg

Product Details

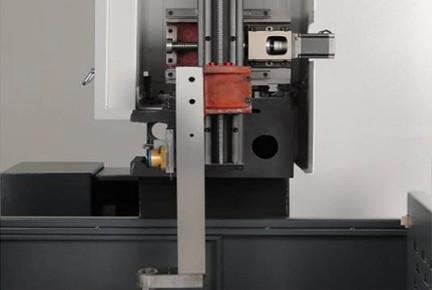

10A Multipurpose Wire Cutting Machine MS 430AC Vibration Resistant10A Multipurpose Wire Cutting Machine MS 430AC Vibration Resistant

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
