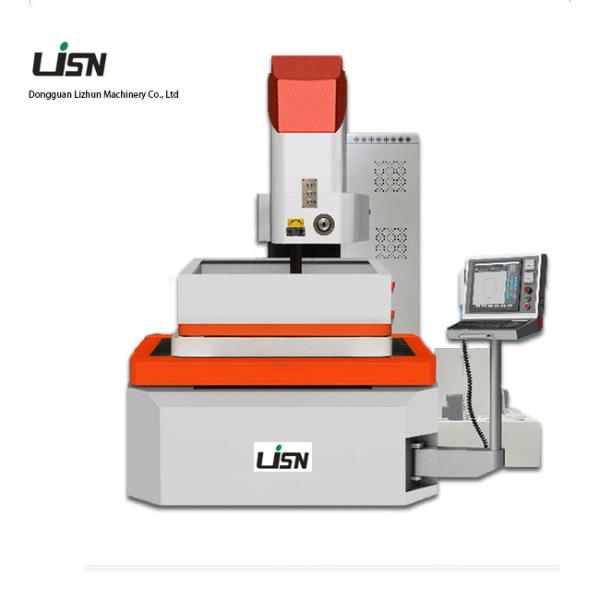

Li Zhun High Speed Wire Cutting Machine Multiscene 380V 50/60Hz
Li Zhun High Speed Wire Cutting Machine Multiscene 380V 50/60Hz
Specifications
Brand Name :
Li Zhun
Model Number :
MS-430AC/MS-540AC/MS-650AC/MS860AC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Product Name :
High Precision Wire Cutting Machine High rigidity
Condition :
New
Warranty :
1 Year
Weight :
1450-3850kg
Z Axis Travel :
280-480mm
Machining Accuracy :
±0.003mm-±0.004mm
Description

PRODUCT DESCRIPTION

High Precision Wire Cutting Machine High rigidity

The machine has the characteristics of high efficiency, high precision and high finish, Suitable for cold stamping plate, precision and complex shape parts processing, etc., such as automotive parts and other large thickness mold and complex shape parts processing. It is an efficient equipment for enterprises in high-speed rail, automobile, shipbuilding, aviation, UAV, automatic machinery and other industries to improve precision processing. It is also an ideal equipment for processing medium and large quantities of parts.

Main Technical Parameters

Specification & Models MS-430AC MS-540AC MS-650AC MS-860AC
Worktable Travel (X,Y) 400*320mm 500*400mm 600*500mm 800*600mm
Worktable (W*D) 750*550mm 800*560mm 920*680mm 1120*780mm
Working tank dimensions(W*D*H) 880*650*450mm 1010*700*450mm 1150*830*450mm 1350*920*450mm
Taper Axis Travel (U, V) 60*60mm 60*60mm 60*60mm 60*60mm
Maximum Cut Taper 6°/80mm 6°/80mm 6°/80mm 6°/100mm
Z Axis Travel 280mm 280mm 280/380mm 280/380/480mm
Maximum Workpiece Thickness 300mm 300mm 300/400mm 300/400/500mm
Maximum Workpiece Weight 500kg 800kg 1000kg 1200kg
Speed of Electrode Wire (group wire) 1.18-11.18m/s 1.18-11.18m/s 1.18-11.18m/s 1.18-11.18m/s
Diameter of Electrode Wire (group wire) 0.16-0.22mm 0.16-0.22mm 0.16-0.22mm 0.16-0.22mm
Tension of Electrode Wire (wire group) 10-30N 10-30N 10-30N 10-30N
Positioning Accuracy 0.01mm 0.01mm 0.015mm 0.015mm
Repositioning Accuracy 0.005mm 0.005mm 0.008mm 0.008mm
Machining Accuracy ±0.003mm ±0.003mm ±0.004mm ±0.004mm
Power Supply 380V50/60Hz1.5KVA 380V50/60Hz1.5KVA 380V50/60Hz2.0KVA 380V50/60Hz2.0KVA
Max Work Current 10A 10A 10A 10A
Maximum cutting speed ≥280mm²/min ≥280mm²/min ≥280mm²/min ≥280mm²/min
Tank Size 80L/550*455*320mm 130L/870*470*320mm 130L/870*470*320mm 130L/870*470*320mm
Control cabinet size 580*580*1860mm 580*580*1860mm 580*580*1860mm 580*580*1860mm
Machine size 1650*1350*2000mm 1850*1550*2100mm 1950*1650*2100mm 2150*1850*2200mm
Machine Weight 1450kg 2050kg 2500kg 3850kg

Product Introduction

Li Zhun High Speed Wire Cutting Machine Multiscene 380V 50/60Hz

Using the classic T-shaped structure bed design, with beautiful appearance, stable structure, superior performance.
