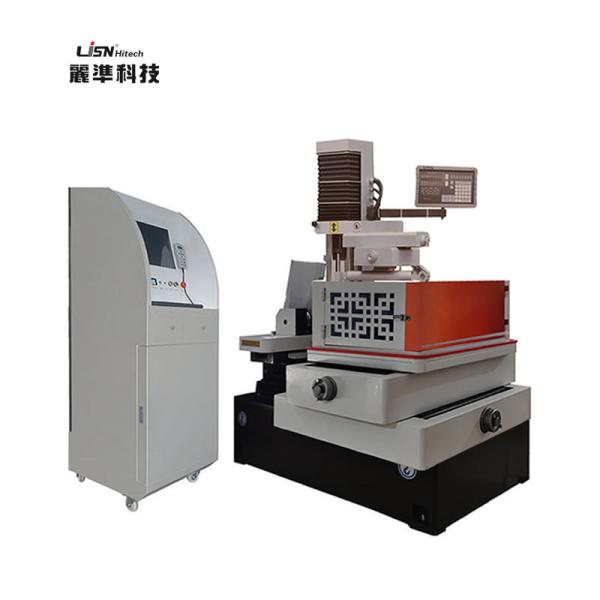

50 / 60Hz MS-430AC EDM Wire Cut Machine Multifunctional Practical
50 / 60Hz MS-430AC EDM Wire Cut Machine Multifunctional Practical
Specifications
Brand Name :
Li Zhun
Model Number :
MS-430AC
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 Work Days
Packaging Details :
Wooden Box
Maximum Work Current :
10A
Positioning Accuracy :
0.015mm
Re-positioning Accuracy :
0.008mm
Type :
Wire Cutting
Condition :
New
Warranty :
1 Year
Description

High Efficiency edm wire cut machineHigh Precision and Rigidity MS-430AC

Product Description

The MS-650AC is a high performance wire cutting machine which can provide high efficiency and precision for parts processing. The machine has the characteristics of high efficiency and high precision, it is suitable for cold stamping touch, plastic extrusion die, gear hobbing cutter and some complex shape parts processing, such as auto parts, television or washing machine and other household appliances shell mold. This machine uses rectangular box structure design, its' casting uses high strength resin sand, and has been secondary tempering treatment, which can provides excellent rigidity for the machine.

The main parts of the machine are imported, such as the Hiwin rail from Taiwan. Excellent parts provide good stability and precision for the mahcine, which can ensure that the machine can respond quickly and can maintain high stability and precision during the process of processing.

Main Features

  • Select paired clearance-free bearings to improve accuracy.
  • Selection of high quality ball screw
  • Using steel-inlaid guide rail
  • Good assembly process requirements
  • By using frequency converter, the speed of the wire drum can be adjusted arbitrarily, thus improving the smoothness of the workpiece.

Main Parameters


Item
Specifications		 Unit MS-430AC MS-540AC

Travel Range
X/Y AxisTravel		 mm 400/320 500/400

Z AxisTravel		 mm 280 280

Control System
CNC System		 / Windows7 Windows7

Worktable
Worktable (WidthxLength)		 mm 750x550 800x560

Max. Workpiece Thickness		 mm 300 300

Max Workpiece Weight		 kg 500 800

Working Tank Dimensions(WxDxH)		 mm 880x650x450 1010x700x450

Spindle
Taper Axis Travel (Ux V)		 mm 60x60 60x60

Max Cut Taper		 mm 6°/80 6°/80

Feedrate
Max Cutting Speed		 mm²/min ≥300 ≥300

Speed of Electrode Wire (group wire)		 m/s 1.18-11.18 1.18-11.18

Diameter of Electrode Wire (group wire)		 mm 0.16-0.22 0.16-0.22

Motor
Power Supply		 KVA 380V50/60Hz1.5 380V50/60Hz1.5

Max Work Current		 A 10 10

Accuracy
Positioning Accuracy		 mm 0.01 0.01

Repositioning Accuracy		 mm 0.005 0.005

Machining Accuracy		 mm ±0.003 ±0.003

Machine Dimension		 (WxDxH)
Machine Dimension		 mm 1650x1350x2000 1850x1550x2100

Machine Weight		 kg 1450 2050


Product Details

50 / 60Hz MS-430AC EDM Wire Cut Machine Multifunctional Practical

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
