Specifications
Brand Name :
Li Zhun
Model Number :
MS-540AC
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Type :
Wire Cutting
Condition :
New
Warranty :
1 Year
Mac Work Current :
10A
Maximum Workpiece Weight :
800kg
Positioning Accuracy :
0.01mm
Description

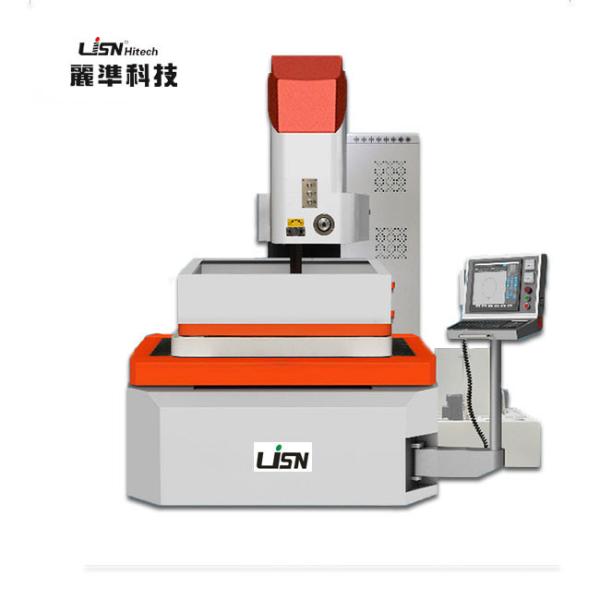

High Efficiency Wire Cutting Machine High Precision and Rigidity MS-540AC

Product Description

The MS-540AC is a high performance wire cutting machine which can provide extremely high efficiency and precision. It euips a high performance and high precision spindle which can provive high efficiency for the process of processing. The machine is equipped with an oil-water separator, which can greatly extend the service life and reduce the waste of resources. The rotary table of this model has been redesigned, and the rotary table is cast with the same high rigidity and hardness as the fuselage, which can effectively improve the stability and machining accuracy.

Main Features

  • High Efficiency Numerical control System
  • High Current Output
  • Ecellent Structural Design
  • Maximum Work Current: 10A
  • Positioning Accuracy: 0.01mm
  • Re-positioning Accuracy: 0.005mm

Main Parameters

Specification & Models MS-540AC
Worktable Travel (X,Y) 500*400mm
Worktable (W*D) 800*560mm
Working Tank Dimensions(W*D*H) 1010*700*450mm
Taper Axis Travel (U, V) 60*60mm
Maximum Cut Taper 6°/80mm
Z Axis Travel 280mm
Maximum Workpiece Thickness 300mm
Maximum Workpiece Weight 800kg
Speed of Electrode Wire (group wire) 1.18-11.18m/s
Diameter of Electrode Wire (group wire) 0.16-0.22mm
Tension of Electrode Wire (wire group) 10-30N
Positioning Accuracy 0.01mm
Repositioning Accuracy 0.005mm
Machining Accuracy ±0.003mm
Power Supply 380V50/60Hz1.5KVA
Max Work Current 10A
Maximum Cutting Speed ≥280mm²/min
Tank Size 130L/870*470*320mm
Control Cabinet Size 580*580*1860mm
Machine Dimension 1850*1550*2100mm

Machine Weight
2050kg

Product Details

Anti Vibration Wire Cutting Machine MS 540AC Multi Scene Durable

Anti Vibration Wire Cutting Machine MS 540AC Multi Scene Durable

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
