M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
Specifications
Brand Name :
Matsumoto
Model Number :
M5
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$4500-5000
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
plywood case
Table size :
1370*305
X axis travel :
900
Y axis travel :
400
Z axis travel :
450
Spindle taper :
R8/NT30/NT40
Spindle travel :
127
Description

M5 Turret Milling Machine M5 Vertical Milling Machine

Description:

Turret milling machine is a versatile, vertical-spindle milling equipment characterized by its removable and rotatable turret head, which houses multiple cutting tools. Unlike traditional milling machines, its turret can be swiveled horizontally (typically up to 360 degrees) and adjusted vertically, allowing operators to quickly switch between different tools without frequent manual retooling. The machine features a worktable that can move along three axes (X, Y, Z) to position the workpiece accurately relative to the cutting tool.

PROJECT

UNIT

M5

Table size

mm

1370*305

X axis travel

mm

900

Y axis travel

mm

400

Z axis travel

mm

450

Spindle taper

/

R8/NT30/NT40

Spindle travel

mm

127

Spindle speed

/

16

Spindle feed

mm

0.76/0.003

Range of rotation

r/min

60-4540/5440(50HZ)

Slot(number*width)

mm

3*16

T-slot spacing

mm

76

Main motor

kw

3HP/5HP

Lifting power

kw

1.1

Wright

kg

1380

Dimension(L*W*H)

mm

1800*1780*2150

Application:

Turret milling machines are widely used across various manufacturing and machining industries due to their versatility. Key applications include:

  • Automotive Industry: Machining small to medium-sized auto parts such as gears, brackets, bushings, and engine components. The machine’s precision and tool flexibility make it ideal for producing custom or prototype auto parts.
  • Aerospace Industry: Fabricating precision components for aircraft, such as aluminum alloy brackets, stainless steel fasteners, and lightweight structural parts. The turret’s ability to handle multiple tools efficiently meets the industry’s strict tolerance and quality requirements.
  • Electronics Industry: Manufacturing small electronic components, including circuit board fixtures, connector housings, and precision metal parts for electronic devices. The machine’s compact size and high precision suit the miniaturization needs of electronic products.
  • Tool and Die Making: Producing and repairing dies, molds, jigs, and fixtures. The turret milling machine can perform various operations (milling, drilling, boring, tapping) on a single workpiece, reducing the need for multiple machines.
  • General Machinery Manufacturing: Machining general mechanical parts such as shafts, flanges, and pulleys. It is also widely used in small workshops and hobbyist settings for custom machining projects due to its ease of use and versatility.

  • Details Images:

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

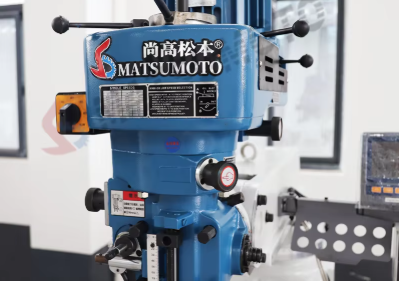

MILLING HEAD

High speed spindle

Head rotate 90°(L*R)

Head rotate 45°(F*B)

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

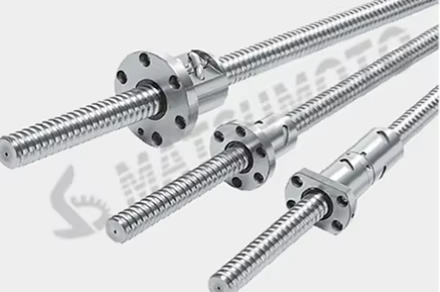

TAIWAN SCREW

The precision of the screw rod is strong, which improves the wear resistance and overall rigidity.

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

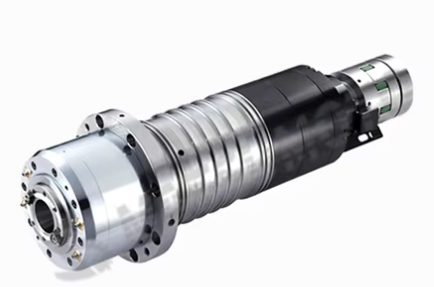

SPINDLE

Flanged spindle, powerful sleeve spindle, high precision and stability.

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

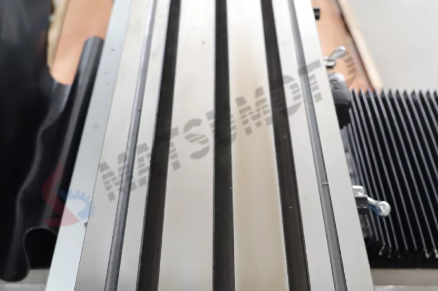

WORKTABLE

Grind the guide rail surface to improve the accuracy and service life of the machine tool.

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

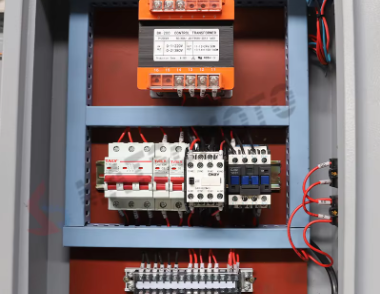

NEAT CIRCUIT

The electrical box is neat and clean, and the maintenance links are clear at a glance.

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

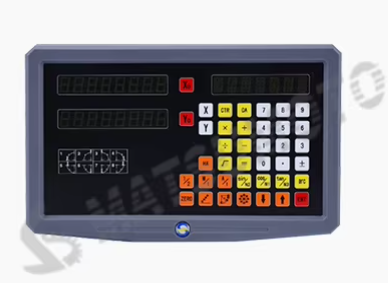

3 AXIS DRO

3 axis digital readout is optional, need extra cost.(optional)

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

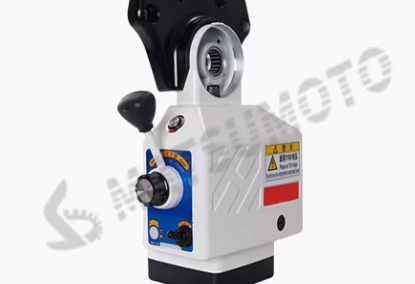

X/Y/Z AUTO FEED

X/Y axis auto feed, Z axis electric lifting, improve processing time.

Tool feeder(optional)

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine

M5 Vertical Spindle Milling Equipment High Accurate Rotatable Turret Head Mill Machine
