Specifications
Brand Name :
Matsumoto
Model Number :
ZX50C
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$2600-3000
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
plywood case
Table size :
800*240mm
Spindle travel :
120mm
Weight :
600/650kg
Dimension(L*W*H) mm :
1100*970*1650
Description

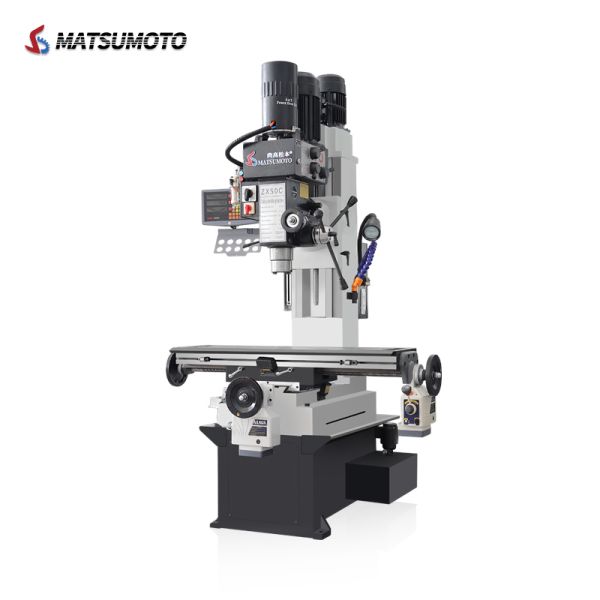

ZX50C Drilling Milling Machine Manual Vertical Milling Machine

Description:

Drilling milling machine is an integrated multi-functional equipment that combines drilling and milling capabilities. It features a vertical spindle that can switch between drilling bits and milling cutters, with a movable worktable adjustable along X, Y, Z axes for precise workpiece positioning. Most models adopt a compact, rigid structure, supporting both manual and semi-automatic operation. The spindle offers variable speeds to adapt to different materials, ensuring stable performance in both hole-drilling and surface-milling tasks with high operational flexibility.
PROJECT UNIT ZX50C
Max. Drilling diameter mm 50
End milling width mm 100
End milling diameter mm 25
Max. Boring diameter mm 120
Max. Tapping diameter mm M16
Distance from spindle to worktable mm 80-480
Spindle speed range rpm 230-1825
Spindle travel mm 120
Table size mm 800*240
Table travel mm 400*230
Motor power kw 0.85/1.5
Weight kg 600/650
Dimension(L*W*H) mm 1100*970*1650

The main performance characteristics:
1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive.
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axis
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
