Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
Specifications
Brand Name :
Matsumoto
Model Number :
M6W
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$3200-4000
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
plywood case
Description

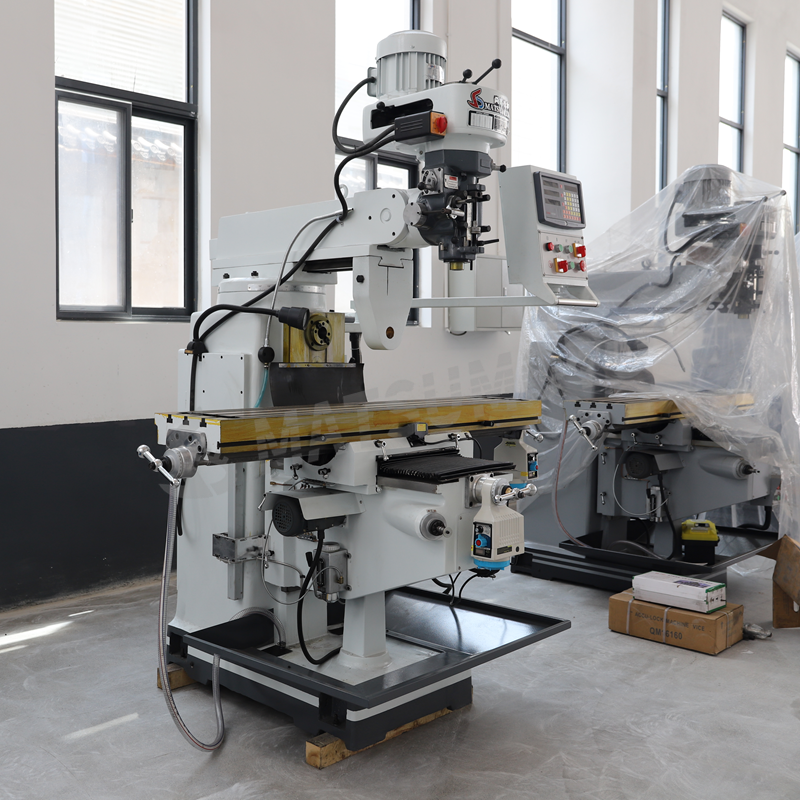

M6W Universal Vertical Horizontal Turret Milling Machine

Main performance characteristics:
1. High strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings, ensure high quality and high precision.
3. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4. Horizontal milling with 4 gear shaft speed , high speed,wide range of variable speed, torque.


Application:
The milling machine is a kind of universal light duty metal cutting machine, Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline,etc.Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Specifications
Unit
M5W
M6W
Table size
mm
1370*305
1570*320
Table travel
mm
900/400/450
1000/400/450
Spindle taper
-
(V) R8/ISO40
(H) ISO40
Spindle travel
mm
127
Spindle speed range
rpm
(V)50HZ:65-4540 60HZ:60-5440,16 steps;
(H)45-1350,12 steps
(V)50HZ:65-4540 60HZ:60-5440,16 steps;
(H)45-1350,12 steps
T slot(number-width-pitch)
mm
3-16-76
Spindle feed range
mm
0.76/0.003
Distance between spindle axis and table surface
mm
0-400
Main motor power
kw
380v 2.2/4(V) 3(H)
Lifting power
kw
1.1
Head rotation (left - right )
°
±90°
Head rotation (front - rear)
°
±45°
Weight
kg
1560
1780
Overall dimension
mm
1800*1780*2150
1980*1800*2250

Details Images:

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty

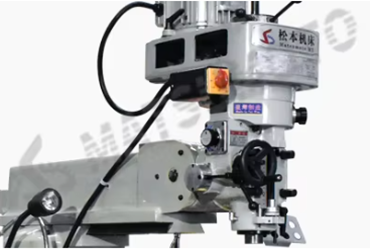

MILLING HEAD

High speed spindle

Head rotate 90°(L*R)

Head rotate 45°(F*B)

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty

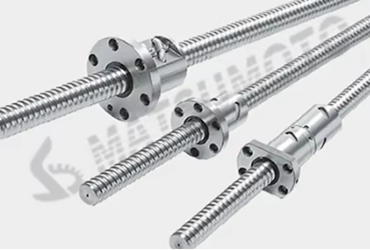

TAIWAN SCREW

The precision of the screw rod is strong, which improves the wear resistance and over all rigidity.

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty

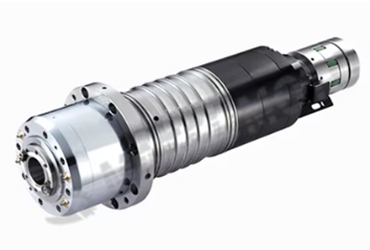

SPINDLE

Flanged spindle, powerful sleeve spindle, high precision and stability.

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty

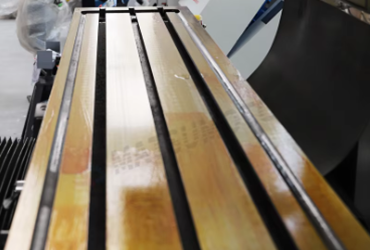

WORKTABLE

Grind the guide rail surface to improve the accuracy and service life of the machine tool.

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty

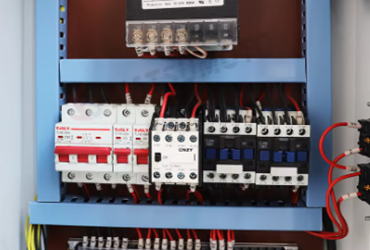

NEAT CIRCUIT

The electric box is neat and clean, and the maintenance links are clear at a glance.

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty

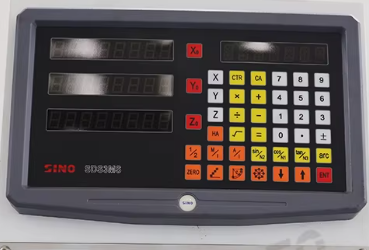

3 AXIS DRO(OPTIONAL)

3 axis digital readout is optional, need extra cost.

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty

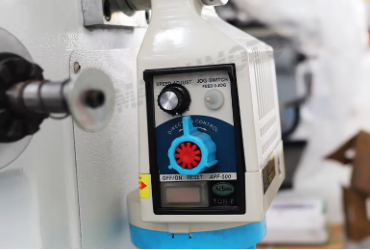

X/Y/Z AUTO FEED

X/Y axis auto feed, Z axis electric lifting, improve processing time.

Tool feeder(optional).

Cast Iron Vertical Horizontal Turret Type Milling Machine M6W Light Duty
