Specifications
Brand Name :
Matsumoto
Model Number :
M5W
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$5500-6000
Payment Terms :
T/T
Delivery Time :
10 working days
Packaging Details :
plywood case
Table size :
1370*305mm
X-axis travel :
900mm
Y-axis travel :
400mm
Z-axis travel :
450mm
Spindle taper :
R8(vertical)/ISO40(horizontal)
Spindle stroke :
127mm
Description

M5W Vertical and Horizontal Turret Milling Machine Universal Turret Milling Machine

Description:

Turret milling machine is a versatile vertical-spindle mill with a removable, rotatable turret head holding multiple cutting tools. Unlike traditional mills, its turret swivels horizontally (usually 360 degrees) and adjusts vertically, enabling operators to quickly switch between different tools without frequent manual retooling.

PROJECT

UNIT

M5W

Table size

mm

1370*305

X-axis travel

mm

900

Y-axis travel

mm

400

Z-axis travel

mm

450

Spindle taper

/

R8(vertical)/ISO40(horizontal)

Spindle stroke

mm

127

Spindle speed

/

16(vertical)/12(horizontal)

Spindle feed

mm

0.76/0.003

Range of rotation

r/min

60-4540/5440(50HZ)

Slot(number*width)

mm

3*16

T-slot spacing

mm

76

Main motor power

kw

3HP/5HP(vertical)3kw(horizontal)

Lifting power

kw

1.1

Weight

kg

1560

Dimension(L*W*H)

mm

1800*1780*2150

  • Details Images:

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

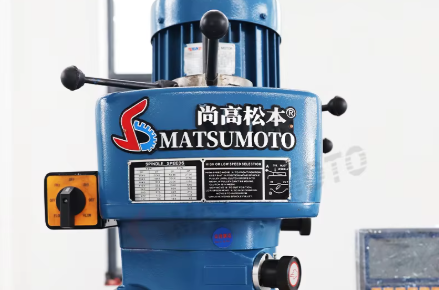

MILLING HEAD

High speed spindle

Head rotate 90°(L*R)

Head rotate 45°(F*B)

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

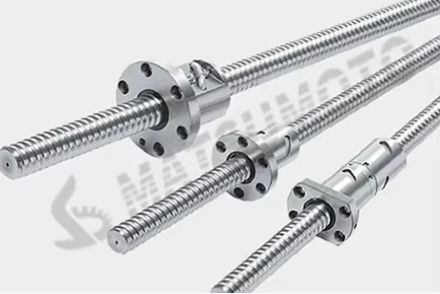

TAIWAN SCREW

The precision of the screw rod is strong, which improves the wear resistance and over all rigidity.

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

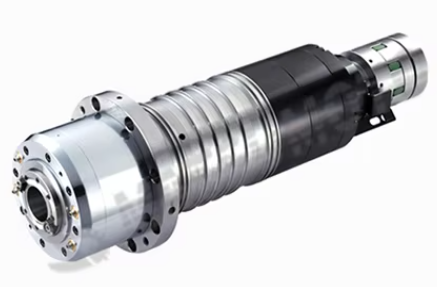

SPINDLE

Flanged spindle, powerful sleeve spindle, high precision and stability.

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

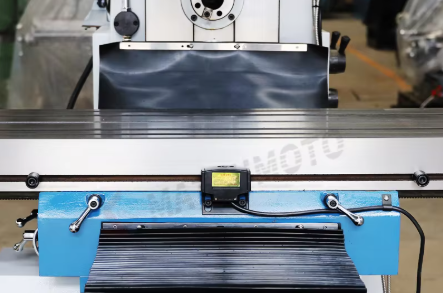

WORKTABLE

Grind the guide rail surface to improve the accuracy and service life of the machine tool.

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

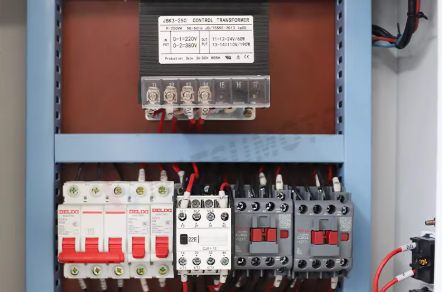

NEAT CIRCUIT

The electric box is neat and clean, and the maintenance links are clear at a glance.

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

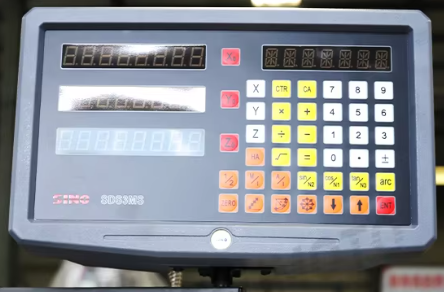

3 AXIS DRO(OPTIONAL)

3 axis digital readout is optional, need extra cost.

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

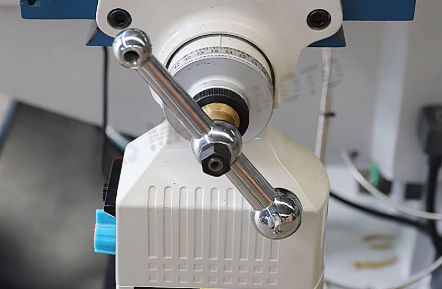

X/Y/Z AUTO FEED

X/Y axis auto feed, Z axis electric lifting, improve processing time.

Tool feeder(optional).

  • Application:

The milling machine is a kind of universal light duty metal cutting machine. Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline,etc.Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head
