Specifications
Condition :
New
Dimension :
6700x2400x3800
Use :
Material cutting
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
FAT :
Sample trial cutting verification
Mechanical control :
Intelligent control，Automation
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Hydraulic oil :
Reusable
Special requirement :
Customized services are available
Feeding precision :
±0.1mm
Color :
Red，Black
Certification :
HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Supply Ability :
500 Sets Per Year
Place of Origin :
China
Brand Name :
JSSCD
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Payment Terms :
FOB
Model Number :
JSSCD-GB42150
Description

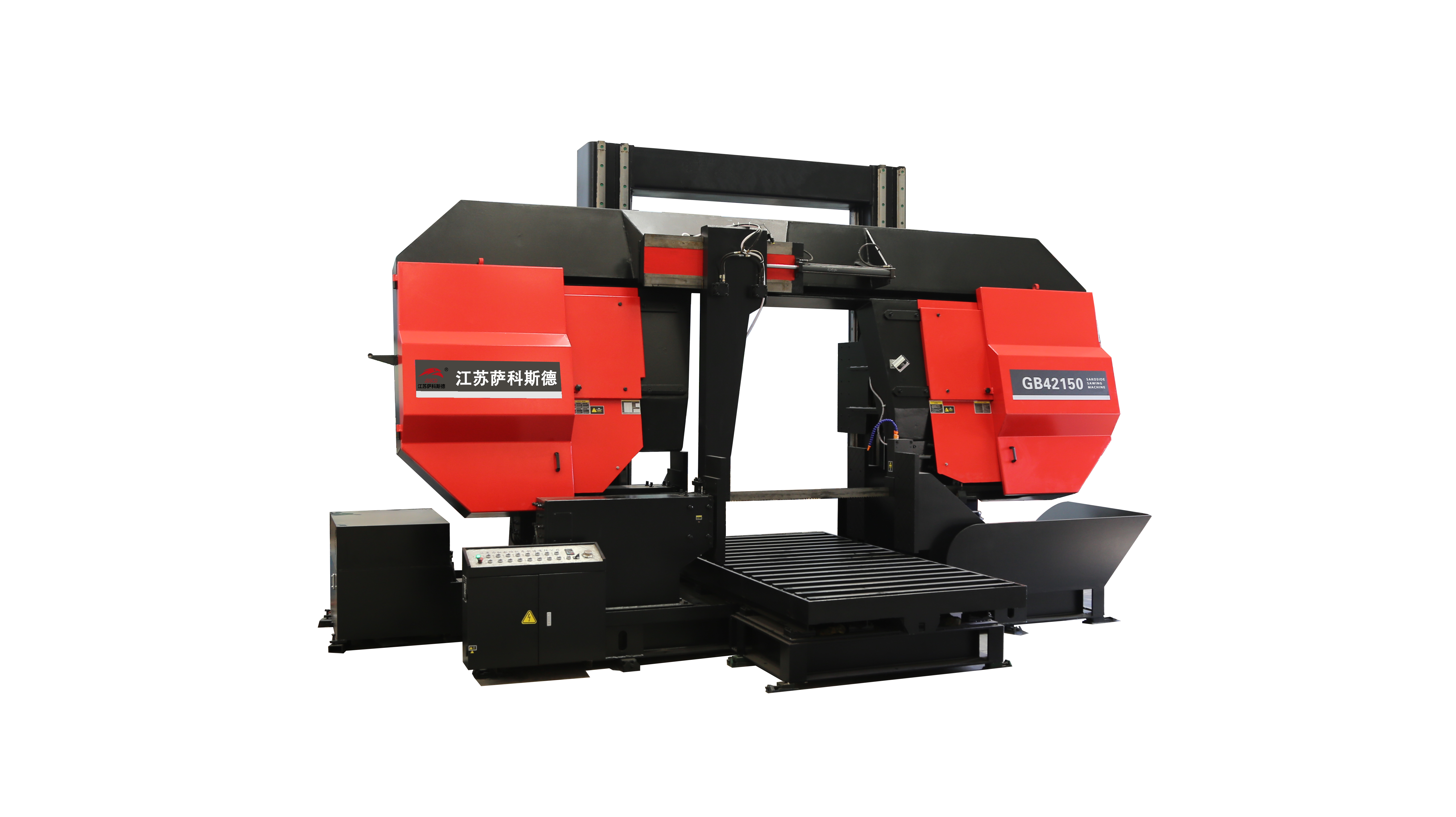

JSSCD-GB42150 Band Saw Machine
Jiangsu Sakoside Intelligent Machinery Technology Co., Ltd. is a comprehensive industrial manufacturer specializing in the research, development, and production of band sawing machinery. Our GB series column band saw machines represent the pinnacle of our technological advancement, designed for precision cutting of metal, plastic, and alloy materials.
Key Features
  • Increased Operational Efficiency: Higher cutting speeds with significant energy savings
  • Heavy-Duty Construction: Reinforced transmission system and upgraded main drive motor for superior cutting power
  • Enhanced Cutting Quality: Delivers excellent surface precision and finish, especially when used with specialized cutting fluids
  • Extended Durability: Industrial-grade hard-chrome plated columns for wear resistance and dimensional stability

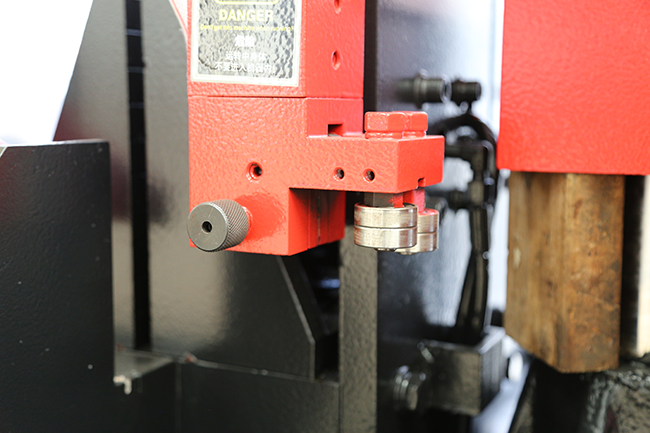

  • Precision Control: Hydraulic lifting system with bearing-supported blade guides and adjustable tungsten steel guide plates
Technical Specifications
Model Unit JSSCD-GB42150
Machine size mm 6700*2400*3800
Square bar & angle bar capacity mm 1500*1500
Round pipe capacity mm φ1500
Saw band speed m/min 20-80 (Variable frequency stepless speed regulation)
Saw band size 13480*80*1.6
Main motor power kw 18.5
Hydraulic motor power kw 5.5
Cooling motor power kw 4.5
Hydraulic fluid capacity L 100
Cutting fluid capacity L 60
Saw band tension Hydraulic

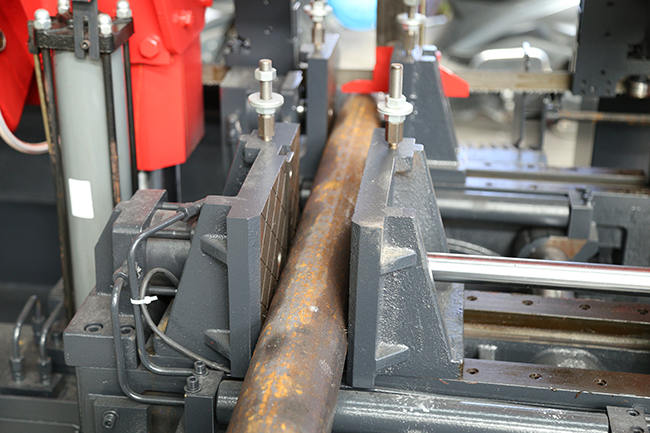

Clamping method Hydraulic
Feeding method Pulley type/drum type
Feeding stroke mm 1500
Product Images
6700MM High Speed Circular Saw Machine 1500MM Pipe Band Saw Machine 6700MM High Speed Circular Saw Machine 1500MM Pipe Band Saw Machine 6700MM High Speed Circular Saw Machine 1500MM Pipe Band Saw Machine 6700MM High Speed Circular Saw Machine 1500MM Pipe Band Saw Machine
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We use FOB (Free On Board) transaction terms.
Q5: What is your delivery time?
Typically 7-60 work days after order confirmation, depending on product type and quantity.
Q6: What are your payment terms?
30% deposit by T/T, with 70% balance paid before shipment. Other payment methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, our products have obtained CE and ISO international certifications.
