Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Specifications
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-300NC/P
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Payment Terms :
FOB
Supply Ability :
500 Sets Per Year
Name :
JSSCD- 300NC/P CNC High Speed Circular Saw Machine
Color :
Red，Black
Condition :
New
Dimension :
3000x3000x2500
Use :
Material cutting
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Mechanical control :
Intelligent control，Automation
Saw type :
Straight cut
Cutting precision :
±0.05mm
Feeding precision :
±0.1mm
FAT :
Sample trial cutting verification
Safety protection devices :
Emergency braking，Anti-splash shield
Hydraulic oil :
Reusable
Cutting debris removal device :
Chain plate chip conveyer
Description

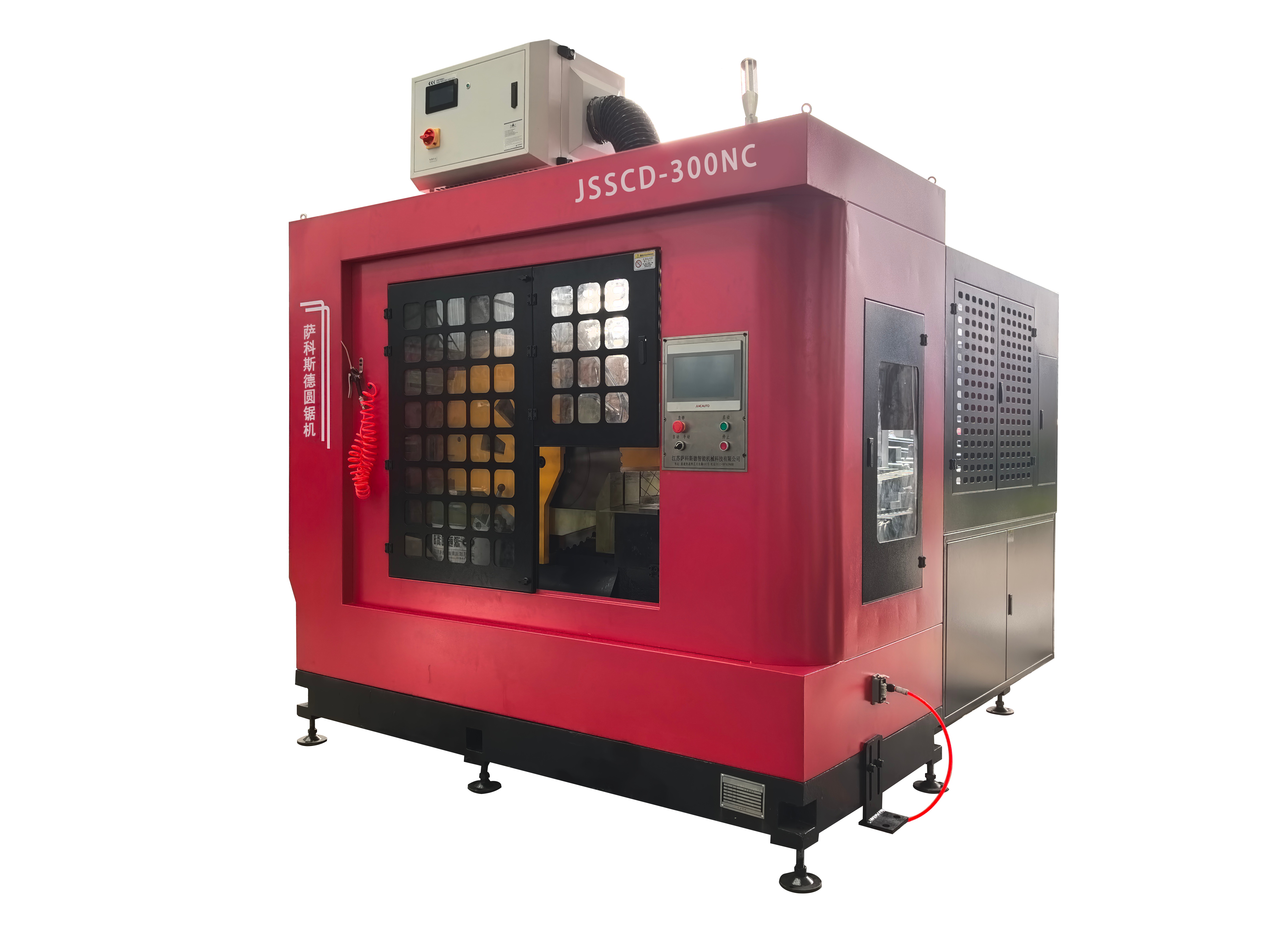

JSSCD-300NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Description

This CNC high-speed circular saw machine is specifically designed to meet the demands for efficient and precise cutting of metal profiles, excelling particularly in horizontal cutting operations. Integrating high-speed cutting, automatic control, precision operation, and environmental performance, it has become an indispensable key piece of equipment in modern metal processing production lines due to its outstanding performance and reliability.

This machine is suitable for the precision cutting of various metal profiles, including round pipes, angle steels, and square tubes. The optimized clamping system design (hydraulic horizontal/vertical clamps) significantly reduces the need for frequent fixture changes, greatly enhancing the equipment's adaptability and processing flexibility for materials of different sizes and shapes.

The intelligent control module allows for precise adjustment of cutting speed, angle, and other key process parameters, ensuring efficient and accurate cutting results. The high-precision CNC control system, paired with an intuitive human-machine interface (HMI), ensures simple operation and supports fully automated production processes.

Specifications
Model Unit JSSCD-300NC/P
Mainframe dimensions mm 3000*3000*2500
Bar & round pipe mm 130-300
Angle bar & square bar mm 130-250
Saw blade size mm φ840*4.0*φ80
Pin holes and hole diameters mm 4*φ21*180 φ80
Spindle motor power KW 45(6P)
Spindle speed rpm 20-08
Feed servo motor power KW 7.5
Feeding servo motor power KW 5.5
Material removal length at the front end mm 20-99
Single feeding length(repeatable) mm 10-800
Hydraulic drive motor power KW 7.5
Rated pressure of the hydraulic system mpa 7.5
Hydraulic oil capacity L 150
Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular Precision Cutting High Speed Circular Saw 45KW HMI Metal Saw Circular
Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?

A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q2. Where is your factory located?

A:Our factory is located in Nantong City, Jiangsu Province, China.

It will takes about 1.5 hours from Shanghai Hongqiao station to our city

Q3: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q4:What is your method of transaction?

A:We adopt the FOB(Free ON Board) transaction.

Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.

The specific delivery time depends on the items and the quantity of your order.

Q6:How about the payment term

A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q7:Does the band saw blade have any international certifications?

A:Yes,we have obtained CE,ISO international certification.
