Specifications
Place of Origin :
China
Brand Name :
JSSCD
Model Number :
JSSCD-260NC/P
MOQ :
1
Packaging Details :
depending on the machine model
Delivery Time :
7-60 work days
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Payment Terms :
FOB
Supply Ability :
500 Sets Per Year
Name :
JSSCD- 260NC/P CNC High Speed Circular Saw Machine
Color :
Red，Black
Condition :
New
Dimension :
2600x2700x2300
Use :
Material cutting
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Mechanical control :
Intelligent control，Automation
Saw type :
Straight cut
Cutting precision :
±0.05mm
Feeding precision :
±0.1mm
FAT :
Sample trial cutting verification
Safety protection devices :
Emergency braking，Anti-splash shield
Hydraulic oil :
Reusable
Cutting debris removal device :
Chain plate chip conveyer
Description

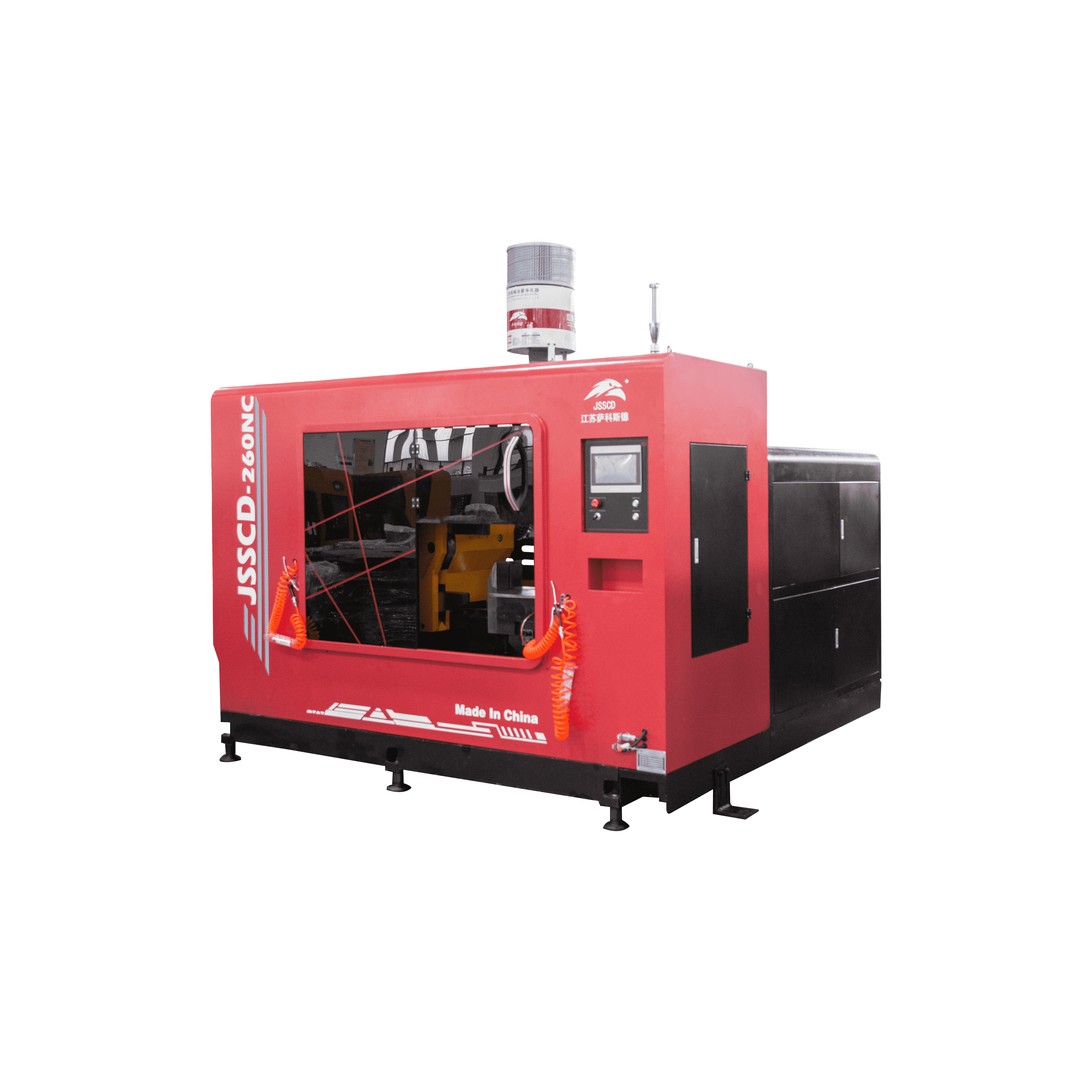

JSSCD-260NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Product Description

This high-performance CNC circular saw is engineered for rapid and accurate metal profile cutting, specializing in horizontal operations. Its integration of swift cutting technology, automated control, exacting standards, and eco-friendly operation has established it as a critical asset in contemporary metal fabrication lines, renowned for its dependable performance.

Designed for precision cutting of diverse profiles like round tubes, angle iron, and square sections, the machine features versatile clamping mechanisms (hydraulic horizontal/vertical). This minimizes fixture adjustments, significantly boosting flexibility when handling materials of varying dimensions and forms.

Key features include:

  • Advanced horizontal plunge cut technique powered by AC servo motor and ball screw
  • High-strength components and meticulous engineering in drive and clamping systems
  • Intelligent control module for exact tuning of cutting parameters
  • High-accuracy CNC system with intuitive HMI for simplified operation
  • Optional high-capacity automatic feeder for continuous material supply
  • Gear backlash compensator for accuracy preservation
  • Dependable hydraulic system with stable pressure rating
  • Self-lubrication system and tool micro-lubrication unit
  • Efficient debris removal system with saw blade chip extraction
Technical Specifications
Model Unit JSSCD-260NC/P
Mainframe dimensions mm 2600*2700*2300
Bar & round pipe mm 110-260
Angle bar & square bar mm 110-230
Saw blade size mm φ750*3.8*φ80
Pin holes and hole diameters mm 4*φ24*150 φ80
Spindle motor power KW 37(6P)/30(6P)
Spindle speed rpm 20-60
Feed servo motor power KW 7.5
Feeding servo motor power KW 3.5
Material removal length at the front end mm 20-99
Single feeding length(repeatable) mm 10-800
Hydraulic drive motor power KW 7.5
Rated pressure of the hydraulic system mpa 7.5
Hydraulic oil capacity L 150
2600MM Automation High Speed Circular Saw Machine Heayy Duty Horizontal Circular Saw ODM 2600MM Automation High Speed Circular Saw Machine Heayy Duty Horizontal Circular Saw ODM 2600MM Automation High Speed Circular Saw Machine Heayy Duty Horizontal Circular Saw ODM 2600MM Automation High Speed Circular Saw Machine Heayy Duty Horizontal Circular Saw ODM
Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?

A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q2. Where is your factory located?

A:Our factory is located in Nantong City, Jiangsu Province, China.

It will takes about 1.5 hours from Shanghai Hongqiao station to our city

Q3: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q4:What is your method of transaction?

A:We adopt the FOB(Free ON Board) transaction.

Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.

The specific delivery time depends on the items and the quantity of your order.

Q6:How about the payment term

A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q7:Does the band saw blade have any international certifications?

A:Yes,we have obtained CE,ISO international certification.
