15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
15 - 18.5KW High Speed Circular Saw Machine 20 - 120Rpm Steel Plate Saw
Specifications
Brand Name :
JSSCD
Model Number :
JSSCD-810NC
Certification :
HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Place of Origin :
China
MOQ :
1
Payment Terms :
FOB
Delivery Time :
7-60 work days
Packaging Details :
depending on the machine model
Supply Ability :
500 Sets Per Year
Name :
JSSCD-810NC CNC High Speed Steel Plate Saw
Color :
Red，Black
Condition :
New
Dimension :
3000x3000x2500
Use :
Material cutting
Cuttable material :
Carbon steel，Stainless steel，Alloy steel，Aluminum，Aluminum alloy，Copper，Copper alloy，Titanium alloy，PA
Application :
Automobile manufacturing，Aerospace，Rail transit，Mechanical equipment，Hardware tools，Ship building，Building material，Pipeline engineering，Mold manufacturing，Electronics manufacturing
Mechanical control :
Intelligent control，Automation
Saw type :
Straight cut
Cutting precision :
±0.05mm
Feeding precision :
±0.1mm
FAT :
Sample trial cutting verification
Safety protection devices :
Emergency braking，Anti-splash shield
Hydraulic oil :
Reusable
Cutting debris removal device :
Chain plate chip conveyer
Description

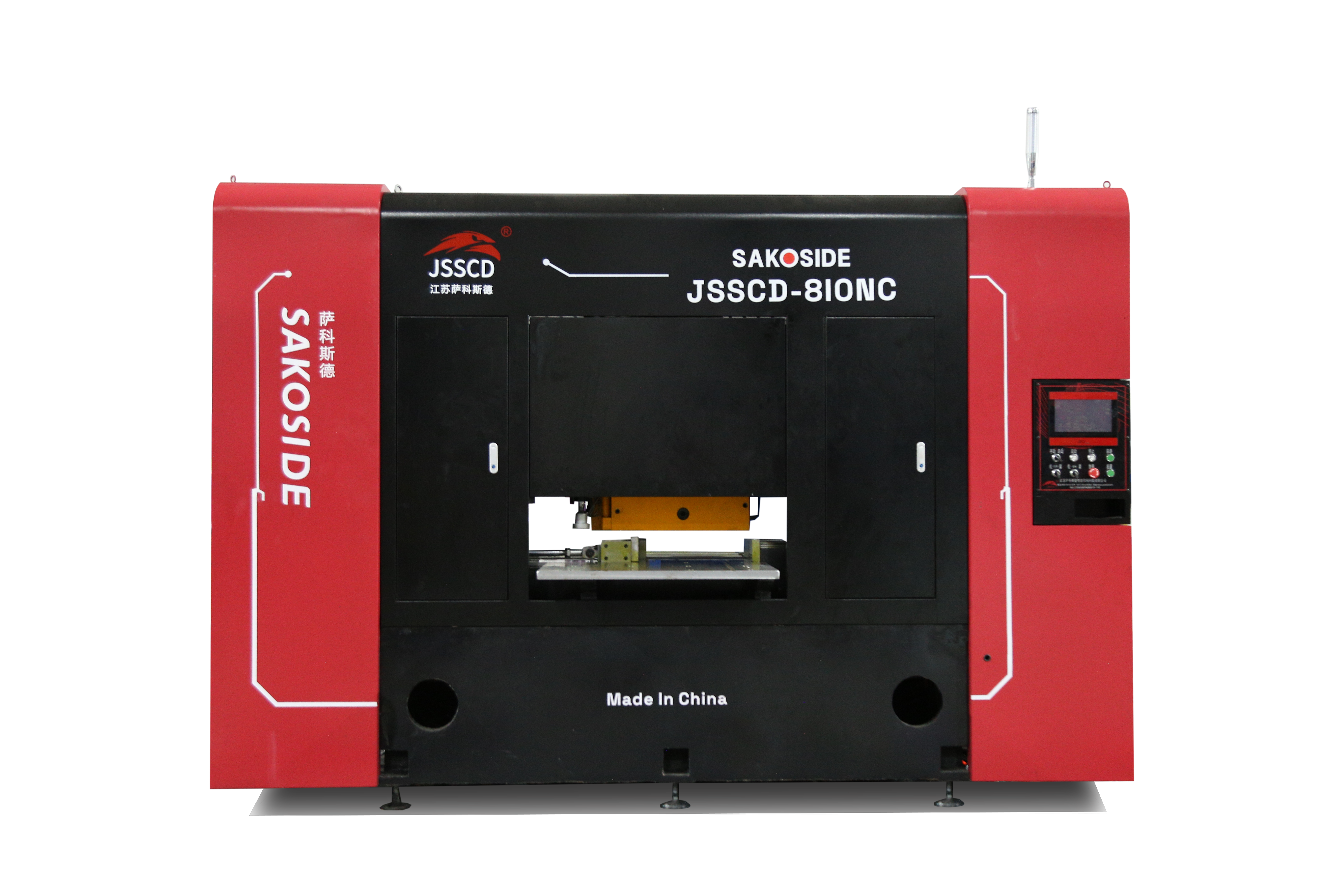

JSSCD-810NC CNC high-speed steel plate saw
Description

This machine is specifically designed for processing a variety of sheet metals. Its core functionality focuses on precision cutting, particularly for high-precision cutting of flat sheet metal. Combining precise cutting technology, intelligent control modules, efficient processing, and a low-energy, environmentally friendly design, it has become an indispensable piece of equipment in the modern sheet metal processing industry thanks to its excellent cutting performance and stable operation.
This CNC high-speed steel plate saw was developed specifically for metal profile processing, with the core goal of meeting the demands for efficient and precise cutting of metal profiles. Its optimized core component design effectively reduces processing time, ensures cutting accuracy, and significantly improves the machine's adaptability and reliability for processing metal profiles of various sizes and shapes.

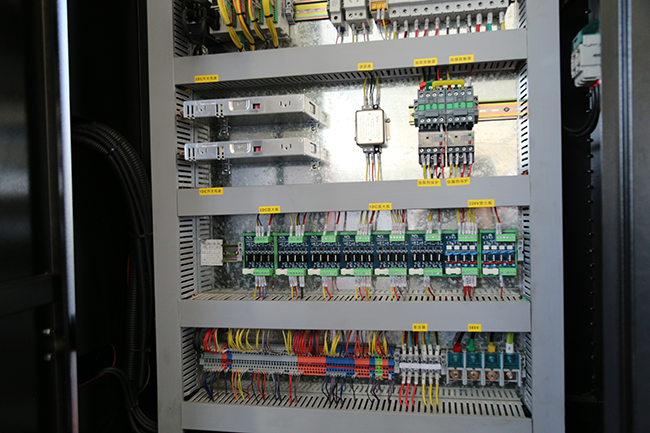

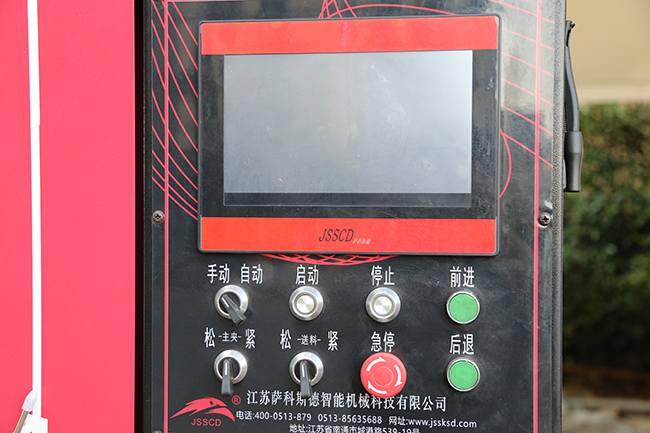

The intelligent control module can precisely adjust the cutting speed, angle and other key process parameters to ensure efficient and accurate cutting results. The high-precision CNC control system, combined with the intuitive human-machine interface (HMI), ensures simple operation and supports fully automated production processes.

Specifications
Model Unit JSSCD-810NC JSSCD-1310 JSSCD-1610 JSSCD-2610
Mainframe dimensions (L*W*H) mm 4100*2000*2500 7100*5050*2360 7400*5600*2460 6500*4900*2500
Cutting range mm 50-810 850-1310 850-1610 1800-2610
Cutting thickness mm 20-100 20-120 20-120 20-120
Saw blade size
425*2.3*3.0*φ50 425*2.3*3.0*φ50 425*2.3*3.0*φ50 425*2.3*3.0*φ50
Pin holes and hole diameters
4*φ16*90 4*φ16*90 4*φ16*90 4*φ16*90

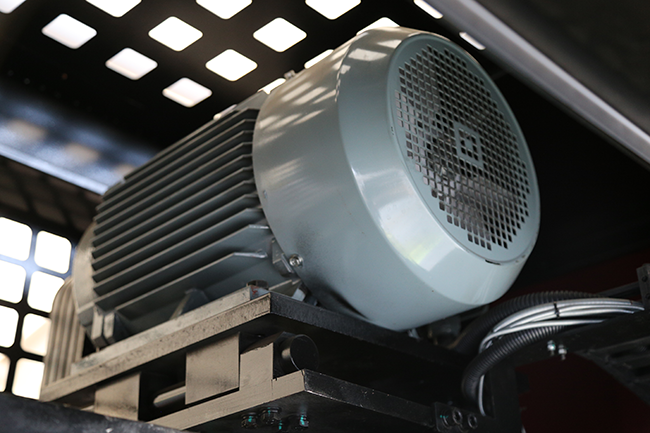

Spindle motor power kw 15(4P) 18.5(4P) 18.5(4P) 18.5(4P)
Spindle speed rpm 20-120 20-120 20-120 20-120
Cut off feed mode
AC servo motor + gantry upper blade AC servo motor + gantry upper blade AC servo motor + gantry upper blade AC servo motor + gantry upper blade
Feed servo motor power kw 3.6 3.6 3.6 3.6
Main clamp method
Hydraulic Type Or Horizontal ,Vertical type Hydraulic Type Or Horizontal ,Vertical type Hydraulic Type Or Horizontal ,Vertical type Hydraulic Type Or Horizontal ,Vertical type

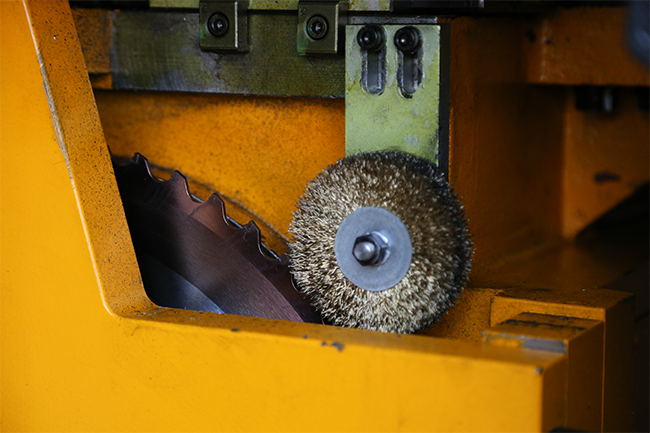

Saw blade debris removal device
Passive/Active circular wire brush (optional) Passive/Active circular wire brush (optional) Passive/Active circular wire brush (optional) Passive/Active circular wire brush (optional)
Gear backlash compensation device
Hollowexternal rotating magnetic powder brake Hollowexternal rotating magnetic powder brake Hollowexternal rotating magnetic powder brake Hollowexternal rotating magnetic powder brake
Feeding drive mode
AC servo motor & ball screw AC servo motor & ball screw AC servo motor & ball screw AC servo motor & ball screw
Feeding servo motor power kw 2 2 2 2
Feeding clamp method
Hydraulic type/ Horizontal clamping Hydraulic type/ Horizontal clamping Hydraulic type/ Horizontal clamping Hydraulic type/ Horizontal clamping
Material removal length at the front mm 10-99 10-99 10-99 10-99
Residual material length at the rear end
95&a(a represents the length less than one cut-off workpiece) 95&a(a represents the length less than one cut-off workpiece) 95&a(a represents the length less than one cut-off workpiece) 95&a(a represents the length less than one cut-off workpiece)
Single feeding length (repeatable feeding) mm 6-590 6-590 6-590 6-590
Hydraulic drive motor power kw 2.25 2.25 2.25 2.25
Rated pressure of the hydraulic system MPA 5.5 5.5 5.5 5.5
Hydraulic oil capacity L 100 100 150 200
Self-lubricating oil system
Timed and quantitative forced oil supply Timed and quantitative forced oil supply Timed and quantitative forced oil supply Timed and quantitative forced oil supply
Micro-lubrication system for cutting
Quasi-dry intermittent oil supply Quasi-dry intermittent oil supply Quasi-dry intermittent oil supply Quasi-dry intermittent oil supply
Blade swing anti-vibration device
Tungsten carbide parallel block Tungsten carbide parallel block Tungsten carbide parallel block Tungsten carbide parallel block

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?

A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q2. Where is your factory located?

A:Our factory is located in Nantong City, Jiangsu Province, China.

It will takes about 1.5 hours from Shanghai Hongqiao station to our city

Q3: What is your factory acceptance test method?

A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)

Q4:What is your method of transaction?

A:We adopt the FOB(Free ON Board) transaction.

Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.

The specific delivery time depends on the items and the quantity of your order.

Q6:How about the payment term

A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)

Q7:Does the band saw blade have any international certifications?

A:Yes,we have obtained CE,ISO international certification.
