Specifications
Certification :
CE
Spindle Motor Power :
7.5 kW
Model Number :
VMC855
Spindle Speed :
8000 rpm
Payment Terms :
T/T
Price :
USD 26000/Sets( ≥5：23000 ≥10：21000）
Machine Weight :
5500 kg
Supply Ability :
10 Units / Month, Accept Large Orders
MOQ :
1 Unit
Delivery Time :
30 work days
Max. Load :
600 kg
Brand Name :
Vedon
Spindle Taper :
BT40
Packaging Details :
Plywood Box
Place of Origin :
China
Worktable Size :
1000×550 mm
Description
High-Precision CNC Machining Centers & Vertical Milling Solutions

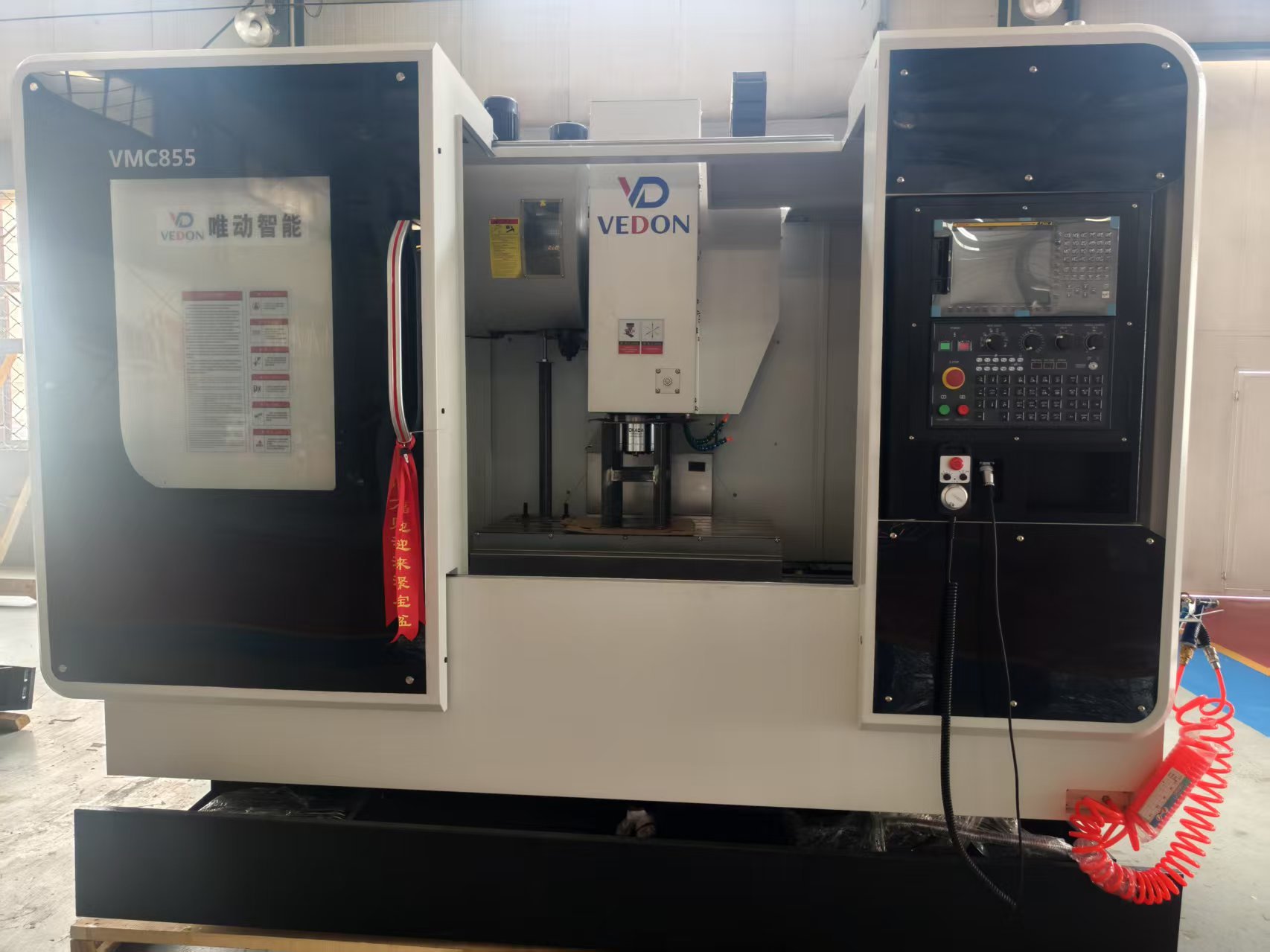

Our VMC855 vertical machining center delivers high‑rigidity, high‑efficiency and precise metal‑cutting performance for general‑purpose manufacturing and complex mold production. Built with heavy‑duty Meehanite cast iron and finite‑element structural optimization, this machine provides outstanding structural stability and strong anti‑vibration capability during cutting, securing stable micron‑level long‑term machining accuracy.

Suitable for automotive parts, mold fabrication and general mechanical component processing, our VMC855 CNC machining center adopts fast automatic tool changer and premium roller linear guideways. Every unit is strictly calibrated and assembled, shortening production cycle time, lowering operator workload while complying with international quality standards. Technical Specifications

Technical Specifications
Category Item Unit VMC855
Machine Travel X-axis mm 800
Y-axis mm 550
Z-axis mm 550
Worktable Size mm 1000*550
Max. Load kg 600
T-slot (No.*Width*Pitch) mm 5*18*100
Distance from Spindle Nose to Table mm 110‑710
Spindle Taper — BT40
Speed rpm 8000
Motor Power kW 7.5
Radial Runout mm ≤0.005
Axial Runout mm ≤0.003

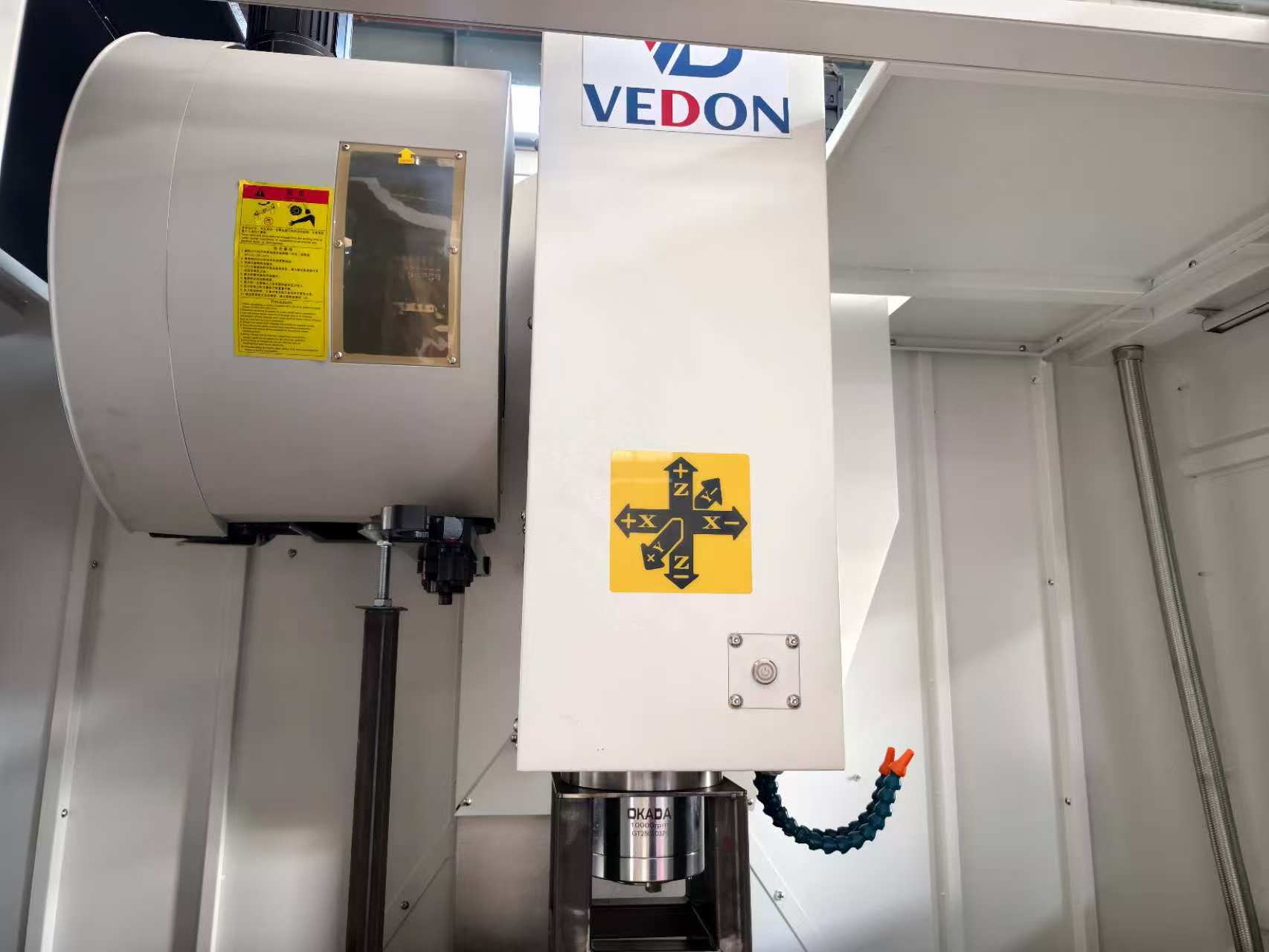

Tool Magazine Capacity pcs 24 (Disc Type Robot)
Tool Change Time (T‑T) s ~2.2
Max. Tool Weight kg 8
CNC System Model — Syntec 22MA / GSK 25i
Control Axis Axis 3
Accuracy Positioning Accuracy (X/Y/Z) mm ±0.008/300
Repeatability (X/Y/Z) mm ±0.005
Feed Rate Rapid Traverse (X/Y/Z) m/min 48
Cutting Feed Rate mm/min 1‑12000
Power & Weight Main Power Supply kVA 20
Machine Weight kg 5500
Overall Dimension (L*W*H) mm 2700*2400*2800
Why Choose Us?
  • Exceptional Precision: High-tensile structural frames and laser compensation ensuring strict positional and repeat accuracy.
  • Rapid Tool Exchange: Arm-type automatic tool changers allowing for 20-30% faster setup and reduced downtime.
  • Custom Engineering: Tailored axis travels and fourth-axis rotary table configurations to optimize your workshop capabilities.
  • Reliable Chip Management: Efficient screw-type chip conveyors and coolant flushing systems to maintain continuous heavy cutting.
Primary Applications
  1. Mold & Die: Injection molds, stamping dies, and complex cavity machining.
  2. Automotive Parts: Transmission housings, engine blocks, and custom mechanical valves.
  3. General Mechanical Hardware: Hydraulic parts, pneumatic components and various precision metal workpieces.
Frequently Asked Questions (FAQ)

Q1: How long is the manufacturing and testing cycle for VMC855 machining center?

A: Standard machine production typically takes 25-35 days. Every unit undergoes a 48-hour continuous cutting test and laser calibration before leaving the factory.

Q2: Can the machine controller languages and electrical standards be adapted locally?

A: Yes, our control systems support multi-language interfaces, and transformers can be configured to match your local industrial power grid requirements.

Q3: What post-purchase technical support is available for overseas clients?

A: We provide remote digital diagnostics, comprehensive operation video manuals, and optional on-site installation and operator training delivered by senior engineers.
