Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler
Specifications
Brand Name :
Gentle Boiler
Model Number :
DZH-2-1.25
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD+10000-15000+set
Payment Terms :
L/C, T/T
Supply Ability :
set+30+per month
Delivery Time :
15 days
Packaging Details :
wooden package
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Style :
Horizontal
Fuel :
wood,coal
Output :
Steam
Boiler Pressure: :
7bar, 10bar, 13bar
Steam temperature :
184-204C
Thermal efficiency: :
78%
Voltage :
380V 50HZ Three Phase
Description

Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler

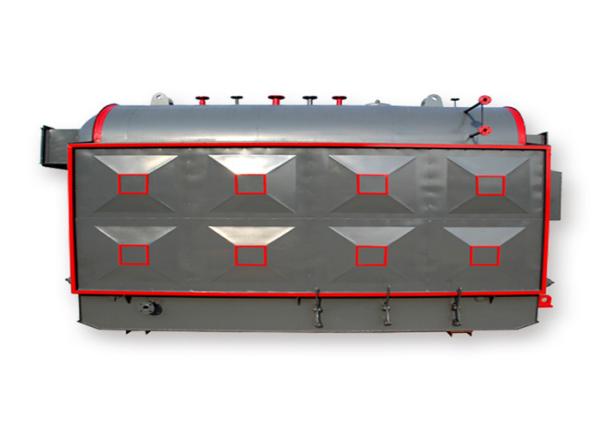

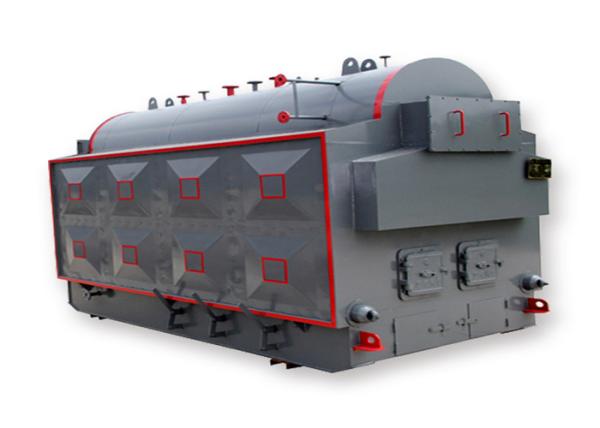

Boiler Product Description

DZH type active grate biomass steam boiler has a wide range of fuel sources. It is a renewable green energy source. It contains almost no sulfur and less ash. Its growth process can absorb all the CO2 generated by the combustion process and achieve zero CO2 emission. Biomass energy will gradually replace coal and become one of the main energy sources. Biomass fuels include straw, wood shoots, bamboo wood processing waste, grain shell skin, fruit shells, sugar residue, oil residue, and so on.Compared with coal-fired boilers, biomass fuels are less expensive and significantly reduce operating costs.

Flowchart of wood steam boiler

Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler

Main Features

1. Moving grate made of cast iron, large furnace design, manual stoker, good applicability of fuel, coal, wood, wood waste, biomass, etc. can be used as fuel.

2. Few moving parts, less investment, low operating costs, low maintenance costs.

3. Forced ventilation, pressure boost fast to make sure enough output.

4. Compact structure, easy to install, reducing the cost of the boiler room and installation cost.

5. Single drum design big water volume, ability to adapt to changes in load.

6. Sufficient combustion, large heating surface, adopt efficient threaded pipe, thermal efficiency higher than the national standard.

Specification

Boiler Model
DZH1-1.25
DZH2-1.25
DZH4-1.25
Steam output (t/h)
1.0
2.0
2.0
working pressure (Mpa)
1.25
1.25
1.6
steam temperature
(℃)
193
193
204
Feed water temperature
(℃)
20
20
20
heat exchange area
(㎡)
25.7
8.409
8.44
Available fuel
BMF
design thermal efficiency
78.59 %
74.88%
79%
exhaust smoke temperature
(℃)
151.9
168.7
151.4
Transport size (L*W*H)
5.1 x 2.25 x 3.05m
5.05 x 2.5 x 3.2m
5.5 x 2.8 x 3.4 m

Industrial used 2 ton wood fired biomass steam boiler,coal fired steam boiler

No. industry product usage
1 Chemical industry polymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2 Plastic industry plastic foam and squeeze to finalize the design,
3 Textile industry resin stenters,dyeing machine and the dry room,high temperature machine,roller
4 Rubber industry cooking,dry,vegetable oil refining
5 Wood industry heating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6 Paper industry multi-layer cardboard of packed carton box,dying and desiccation
7 Others heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc

Regarding the biomass steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
