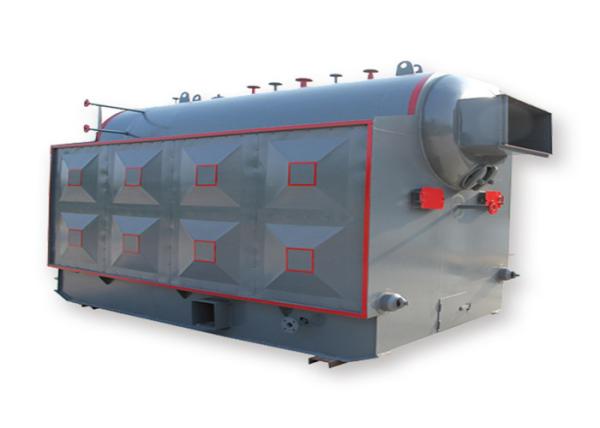

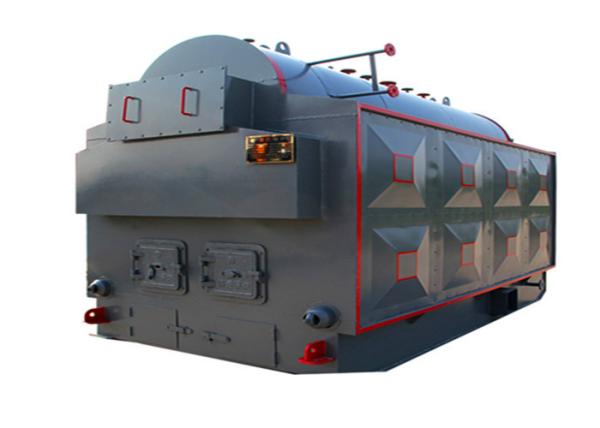

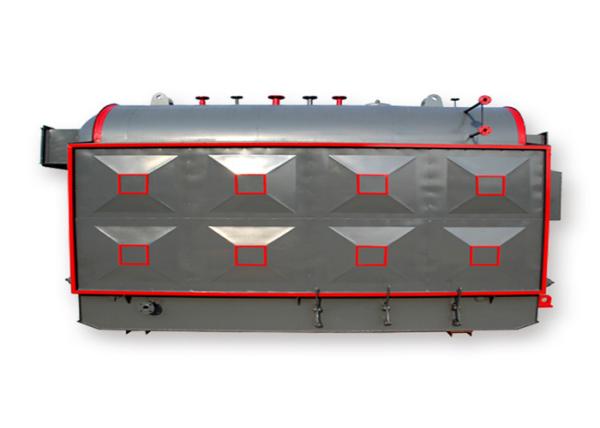

Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Specifications
Brand Name :
Gentle Boiler
Model Number :
DZH2-1.0
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD+10000-15000+set
Payment Terms :
L/C, T/T
Supply Ability :
set+30+per month
Delivery Time :
15 days
Packaging Details :
wooden package
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Style :
Horizontal
Fuel :
wood,coal
Output :
Steam
Boiler Pressure: :
7bar, 10bar, 13bar
Steam temperature :
184-204C
Thermal efficiency: :
78%
Voltage :
380V 50HZ Three Phase
capacity :
2ton per hour, 2000kg/h
Description

Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine

Boiler Product Description

1.Boiler model:DZH
2.Boiler capacity:1-4ton/h
3.Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar)
4.Steam temperature:184 °c,194°c, 204°c,
5.Fuel:coal,wood, wood pellet, firewood, log
6.Structure:horizontal water-fire tube, single drum
7.Type: DZH manual coal feed type coal fried boiler.
8.Application: medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

DZH series steam boiler is the single drum longitudinal type water and fire tube shell water boiler, the burning equipment is the moving grate.

Main Features

1. The body adopts single drum structure, water tube and fire tube mixed design, full layout of heating surface and high thermal efficiency;

2. Mechanized combustion;

3. Environment friendly and energy saving;

4. Complete auxiliaries and high self-control;

5. The body and the base are separately delivered. The installation cycle is short and the installation cost is low.

Specification

Model
Item		DZH0.5-0.7-AII
DZH0.5-1.0-AII		DZH1-0.7-AII
DZH1-1.0-AII
DZH1-1.25-AII		DZH2-0.7-AII
DZH2-1.0-AII
DZH2-1.25-AII
DZH2-1.6-AII		DZH4-1.25-AII
DZH4-1.6-AII
Rated evaporation
capacity (t/h)		0.5124
Working
pressure(Mpa)		0.7/1.00.7/1.0/1.250.7/1.0/1.25/1.61.25/1.6
Rated steam
temperature(℃)		170/184170/184/194170/184/194/204194/204
Feed water
temperature(℃)		20202020
Effective area of
grate(m2)		1.282.13.365.2
Fuel consumption
(Kg/h)		76150301602
Exhaust flue gas
temperature(C)		165165165165
Thermal Efficiency
(%)		80808080
Size(m)3.2x 2.0x 2.64.1x 2.2x 2.94.7x 2.3x 3.25.6x 2.5x 3.5
Weight (t)8121522

Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine

Flowchart of coal steam boiler
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine

This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine
Regarding the biomass steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
Industrial Horizontal Wood Biomass Steam Boiler for Rice Mill Machine

No.industryproduct usage
1Chemical industrypolymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2Plastic industryplastic foam and squeeze to finalize the design,
3Textile industryresin stenters,dyeing machine and the dry room,high temperature machine,roller
4Rubber industrycooking,dry,vegetable oil refining
5Wood industryheating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6Paper industrymulti-layer cardboard of packed carton box,dying and desiccation
7Othersheating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc
