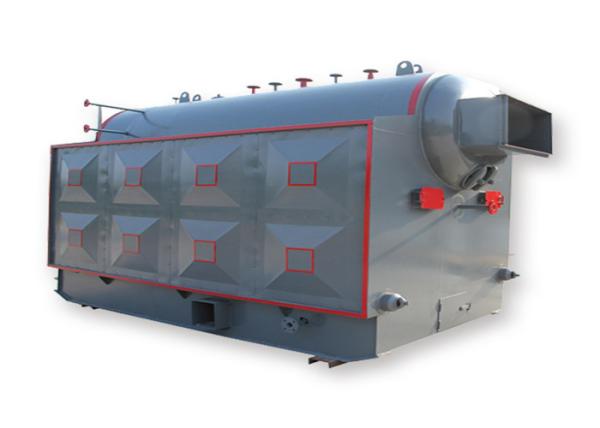

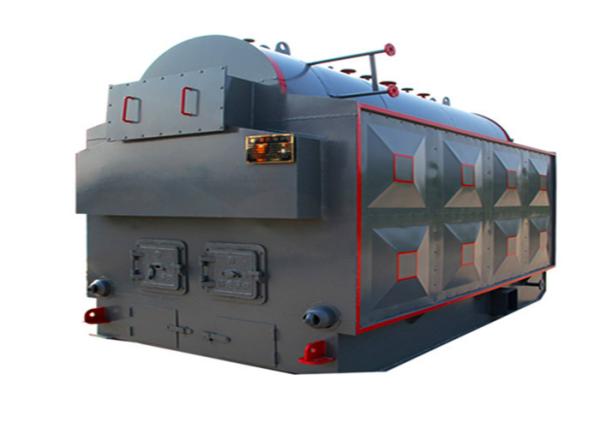

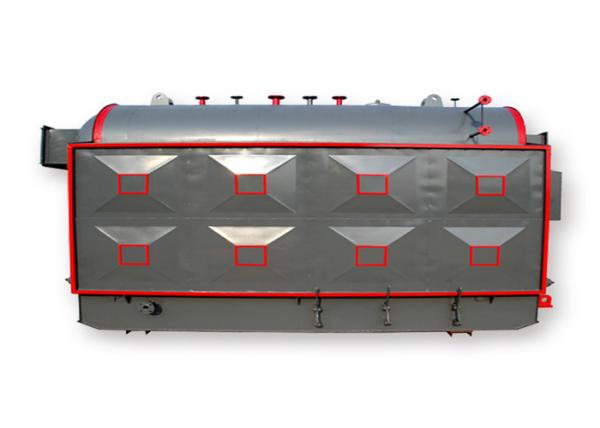

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry
Specifications
Brand Name :
Gentle Boiler
Model Number :
DZH-4-1.25
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD+10000-15000+set
Payment Terms :
L/C, T/T
Supply Ability :
set+30+per month
Delivery Time :
15 days
Packaging Details :
wooden package
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Style :
Horizontal
Fuel :
wood,coal
Output :
Steam
Boiler Pressure: :
7bar, 10bar, 13bar
Steam temperature :
184-204C
Thermal efficiency: :
78%
Voltage :
380V 50HZ Three Phase
capacity :
1-20t/h
Description

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry

Boiler Product Description

DZH type active grate coal steam boiler has a wide range of fuel sources. It is a renewable green energy source. It contains almost no sulfur and less ash. Its growth process can absorb all the CO2 generated by the combustion process and achieve zero CO2 emission. Biomass energy will gradually replace coal and become one of the main energy sources. Biomass fuels include straw, wood shoots, bamboo wood processing waste, grain shell skin, fruit shells, sugar residue, oil residue, and so on.Compared with coal-fired boilers, biomass fuels are less expensive and significantly reduce operating costs.

Flowchart of coal steam boiler

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry

Main Features

  • Automatic Control System---PLC control panel;
  • Automatic Feeding System;
  • Automatic water treatment plant (American FLECK);
  • Automatic fuel combustion adjustment & feed water adjustment;
  • Good coal adaptability and smoke eliminating effect;
  • Protections: Low and high water level alarm, low water level interlock protection;
  • Equipped with Economizer, Induced Draft Fan, Forced Draft Fan, Automatic Feeding System, and all Safety Devices by law.

Specification

Boiler Model
DZH1-1.25
DZH2-1.25
DZH4-1.25
Steam output (t/h)
1.0
2.0
2.0
working pressure (Mpa)
1.25
1.25
1.6
steam temperature
(℃)
193
193
204
Feed water temperature
(℃)
20
20
20
heat exchange area
(㎡)
25.7
8.409
8.44
Available fuel
BMF
design thermal efficiency
78.59 %
74.88%
79%
exhaust smoke temperature
(℃)
151.9
168.7
151.4
Transport size (L*W*H)
5.1 x 2.25 x 3.05m
5.05 x 2.5 x 3.2m
5.5 x 2.8 x 3.4 m

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry

This steam boiler adopt chain grate,suitable for molding pellet fuel,can add a small amount of wood,wood block,also can burn with coal.

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry

This steam boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry

Regarding the biomass steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.

Steam Output 1-20ton/h Coal Fired Steam Boiler Price For Food Industry

No. industry product usage
1 Chemical industry polymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2 Plastic industry plastic foam and squeeze to finalize the design,
3 Textile industry resin stenters,dyeing machine and the dry room,high temperature machine,roller
4 Rubber industry cooking,dry,vegetable oil refining
5 Wood industry heating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6 Paper industry multi-layer cardboard of packed carton box,dying and desiccation
7 Others heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc
