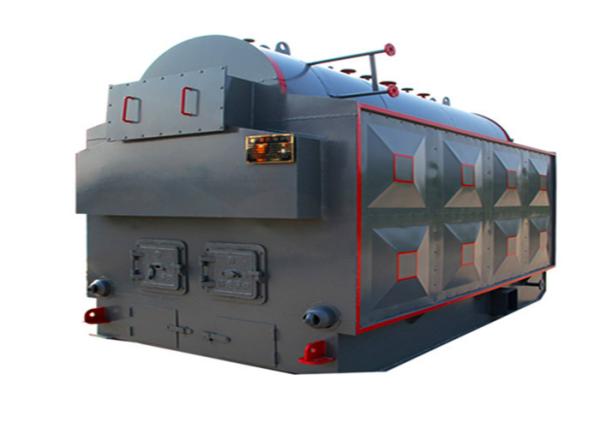

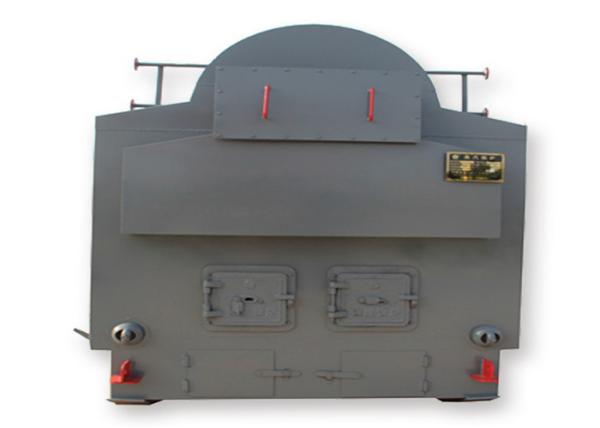

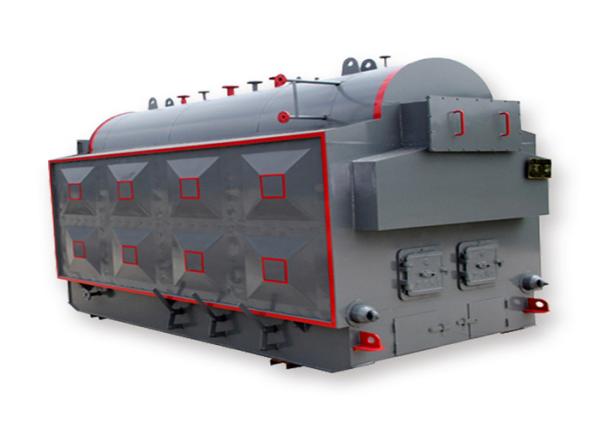

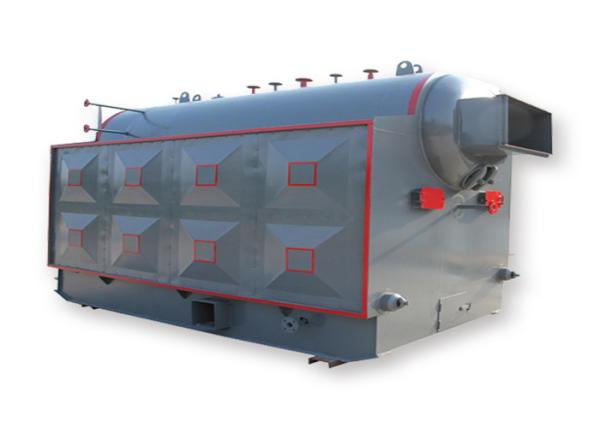

2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization
Specifications
Brand Name :
Gentle Boiler
Model Number :
DZH-4-1.25
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD+10000-15000+set
Payment Terms :
L/C, T/T
Supply Ability :
set+30+per month
Delivery Time :
15 days
Packaging Details :
wooden package
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Style :
Horizontal
Fuel :
wood,coal
Output :
Steam
Boiler Pressure: :
7bar, 10bar, 13bar
Steam temperature :
184-204C
Thermal efficiency: :
78%
Voltage :
380V 50HZ Three Phase
capacity :
2ton per hour, 2000kg/h
Description

Boiler Product Description

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It is widely used in pharmaceutical industry,brewery industry,textile industry,food industry,architectural material industry,hotel industry,ect.

Flowchart of coal steam boiler

2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization

Main Features

  • Automatic Control System---PLC control panel;
  • Automatic Feeding System;
  • Automatic water treatment plant (American FLECK);
  • Automatic fuel combustion adjustment & feed water adjustment;
  • Good coal adaptability and smoke eliminating effect;
  • Protections: Low and high water level alarm, low water level interlock protection;
  • Equipped with Economizer, Induced Draft Fan, Forced Draft Fan, Automatic Feeding System, and all Safety Devices by law.

Specification

Boiler Model
DZH1-1.25
DZH2-1.25
DZH4-1.25
Steam output (t/h)
1.0
2.0
2.0
working pressure (Mpa)
1.25
1.25
1.6
steam temperature
(℃)
193
193
204
Feed water temperature
(℃)
20
20
20
heat exchange area
(㎡)
25.7
8.409
8.44
Available fuel
BMF
design thermal efficiency
78.59 %
74.88%
79%
exhaust smoke temperature
(℃)
151.9
168.7
151.4
Transport size (L*W*H)
5.1 x 2.25 x 3.05m
5.05 x 2.5 x 3.2m
5.5 x 2.8 x 3.4 m

2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization

This boiler adopt chain grate,suitable for molding pellet fuel,can add a small amount of wood,wood block,also can burn with coal.

2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization

This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.

2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization

Regarding the biomass steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.

2ton Easy to instal used coal wood fired steam boiler for mushroom sterilization

No. industry product usage
1 Chemical industry polymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2 Plastic industry plastic foam and squeeze to finalize the design,
3 Textile industry resin stenters,dyeing machine and the dry room,high temperature machine,roller
4 Rubber industry cooking,dry,vegetable oil refining
5 Wood industry heating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6 Paper industry multi-layer cardboard of packed carton box,dying and desiccation
7 Others heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc
