Specifications
Brand Name :
Gentle Boiler
Model Number :
DZH4-1.0
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD+10000-15000+set
Payment Terms :
L/C, T/T
Supply Ability :
set+30+per month
Delivery Time :
15 days
Packaging Details :
wooden package
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Style :
Horizontal
Fuel :
wood,coal
Output :
Steam
Boiler Pressure: :
7bar, 10bar, 13bar
Steam temperature :
184-204C
Thermal efficiency: :
78%
Voltage :
380V 50HZ Three Phase
capacity :
4ton per hour, 4000kg/h
Description


0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry

Boiler Product Description

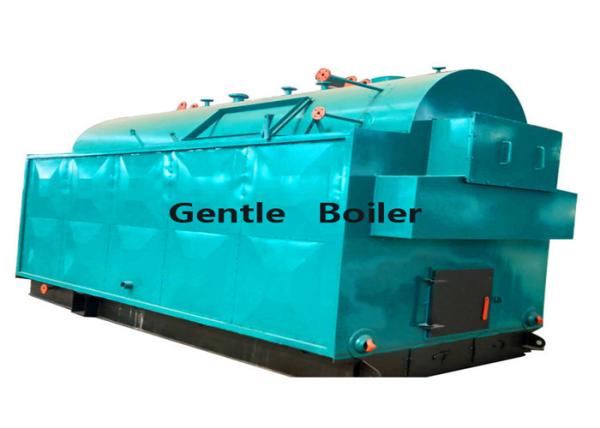

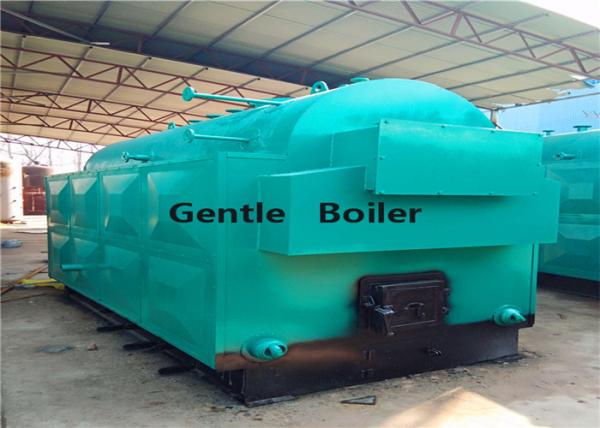

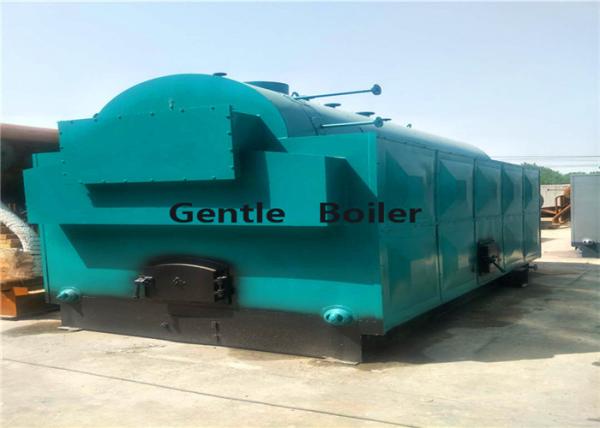

DZH series horizontal structure one drum water fire tube coal & biomass fuel manual fixed grate boiler are energy-saving, eco-friendly and prominent advantages comparing with other boiler structures.

1.Boiler model:DZH
2.Boiler capacity:1-4ton/h
3.Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar)
4.Steam temperature:184 °c,194°c, 204°c,
5.Fuel:coal,wood, wood pellet, firewood, log
6.Structure:horizontal water-fire tube, single drum
7.Type: DZH manual coal feed type coal fried boiler.
8.Application: medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

Biomass Steam Boiler Main Features

1. Moving grate made of cast iron, large furnace design, manual stoker, good applicability of fuel, coal, wood, wood waste, biomass, etc. can be used as fuel.
2. Few moving parts, less investment, low operating costs, low maintenance costs.
3. Forced ventilation, pressure boost fast to make sure enough output.
4. Compact structure, easy to install, reducing the cost of the boiler room and installation cost.
5. Single drum design big water volume, ability to adapt to changes in load.
6. Sufficient combustion, large heating surface, adopt efficient threaded pipe, thermal efficiency higher than the national standard.

Specification

Model
Item		DZH0.5-0.7-AII
DZH0.5-1.0-AII		DZH1-0.7-AII
DZH1-1.0-AII
DZH1-1.25-AII		DZH2-0.7-AII
DZH2-1.0-AII
DZH2-1.25-AII
DZH2-1.6-AII		DZH4-1.25-AII
DZH4-1.6-AII
Rated evaporation
capacity (t/h)		0.5124
Working
pressure(Mpa)		0.7/1.00.7/1.0/1.250.7/1.0/1.25/1.61.25/1.6
Rated steam
temperature(℃)		170/184170/184/194170/184/194/204194/204
Feed water
temperature(℃)		20202020
Effective area of
grate(m2)		1.282.13.365.2
Fuel consumption
(Kg/h)		76150301602
Exhaust flue gas
temperature(C)		165165165165
Thermal Efficiency
(%)		80808080
Size(m)3.2x 2.0x 2.64.1x 2.2x 2.94.7x 2.3x 3.25.6x 2.5x 3.5
Weight (t)8121522


0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry
0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry

Flowchart of coal steam boiler
0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry

This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.
0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry
Regarding the biomass steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
0.5ton to 4ton Biomass Fired Produce Steam Coal Wood Boilers for paper making industry

No.industryproduct usage
1Chemical industrypolymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2Plastic industryplastic foam and squeeze to finalize the design,
3Textile industryresin stenters,dyeing machine and the dry room,high temperature machine,roller
4Rubber industrycooking,dry,vegetable oil refining
5Wood industryheating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6Paper industrymulti-layer cardboard of packed carton box,dying and desiccation
7Othersheating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc
