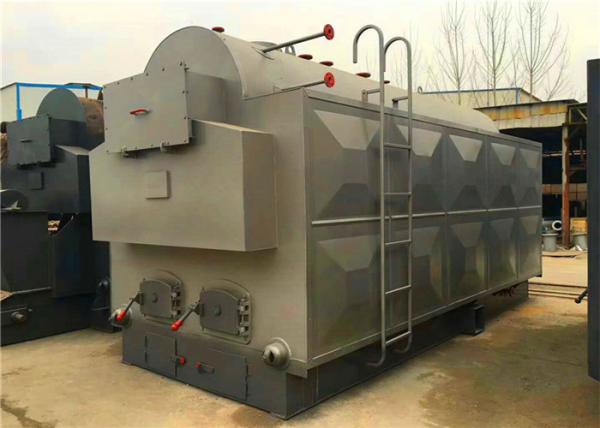

1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization
Specifications
Brand Name :
Gentle Boiler
Model Number :
DZH1.5-1.0
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD+10000-15000+set
Payment Terms :
L/C, T/T
Supply Ability :
set+30+per month
Delivery Time :
15 days
Packaging Details :
wooden package
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Style :
Horizontal
Fuel :
wood,coal
Output :
Steam
Boiler Pressure: :
7bar, 10bar, 13bar
Steam temperature :
184-204C
Thermal efficiency: :
78%
Voltage :
380V 50HZ Three Phase
capacity :
1.5ton per hour, 1500kg/h
Description

1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization

low pressure coal fired steam boiler adopts compact structure and it also has advantages: simple installation, low initial investment, safe and reliable operation, energy conservation, environmental protection, and low water quality requirement.


Boiler Product Description

1.Boiler model:DZH/DZL

2.Boiler capacity:1-20ton/h

3.Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)

4.Steam temperature:184 °c,194°c, 204°c,226°c(As long as below 226°c,we can do it)

5.Fuel:coal,biomass

6.Structure:horizontal water-fire tube, single drum

7.Type:There are two types.One is DZL chain grate stoker automatic feeding fuel and removing dregs type. Another is DZH manual coal feed type coal fried boiler.

8.Application:Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

Performance Advantages

1.Advanced technology such as threaded pipe has more than 80% thermal efficiency.

2.Using high standards, high-quality accessories and automatic control equipment, the boiler has the advantages of sufficient output, stable and reliable operation, and strong overload capacity.

3.The tail is equipped with high-efficiency dust collector and bottom noise induced draft fan, which greatly improves the dust emission standard of this type of boiler and meets the national environmental protection requirements.

4.Quick-install factory-type boiler, the design structure is compact and reasonable, convenient for transportation, small footprint, easy to install, greatly shorten the construction period and save installation costs.

5.Technology consulting, technology services, installation guidance, regular and irregular re-tracking services for users, offer high quality and perfect services at any time, ensure our customer secure purchase, and happy utilization.

Main Parameters of DZH Series coal Steam Boiler

Item Unit DZH1 DZH2 DZH3 DZH4 DZH6
Steam Capacity t/h 1 2 3 4 6
Working Pressure MPa 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6
Steam Temperature ℃ 193/204 193/204 193/204 193/204 193/204
Feed Water Temperature ℃ 20 20 20 20 20
Thermal Efficiency / ≥88
Applicable Fuel / Wood, Straw, Rice Husk, Biomass Pellet
Fuel Consumption Kg/h 176.6 352.3 522.5 697 1044
Heating Area m2 39.82 82 120.2 174.32 239
Grate Area m2 1.97 2.7 4.1 5.43 6.7
Total Power KW 13.7 18 31.5 31.5 45
Water Capacity m3 4.5 4.68 5.9 6.3 11

Remarks: The fuel consumption in above table are counted the low calorific value of biomass pellet as 17084 KJ/Kg (4085Kcal/Kg), if the low calorific value of actual biomass fuels is bigger than this, the corresponding fuel consumption will more save than above data in table

Drum of steam boiler
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization

1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization

1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization

1.one set 1ton steam boiler should be packed into one feet 40ft open top container
2.one set 2ton biomass steam boiler should be load in one 40feet open top container
3.one set 4ton industrial boiler with biomass fuel should be packed into one 20ft flat rack and one 20ft general container.

Flowchart of coal steam boiler
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization

This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization
Regarding the biomass steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
1.5 ton 1500kg packaged coal wood fired steam boiler for Milk sterilization

No. industry product usage
1 Chemical industry polymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2 Plastic industry plastic foam and squeeze to finalize the design,
3 Textile industry resin stenters,dyeing machine and the dry room,high temperature machine,roller
4 Rubber industry cooking,dry,vegetable oil refining
5 Wood industry heating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6 Paper industry multi-layer cardboard of packed carton box,dying and desiccation
7 Others heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc

Dear friend,

Thanks for your time for scaning our products.

We need the following information to confirm the boiler model:

1.Boiler type:steam boiler, hot water boiler or thermal oil boiler?

2.Boiler capacity?

3. Boiler pressure?

4. Boiler application?

After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation,ok?
