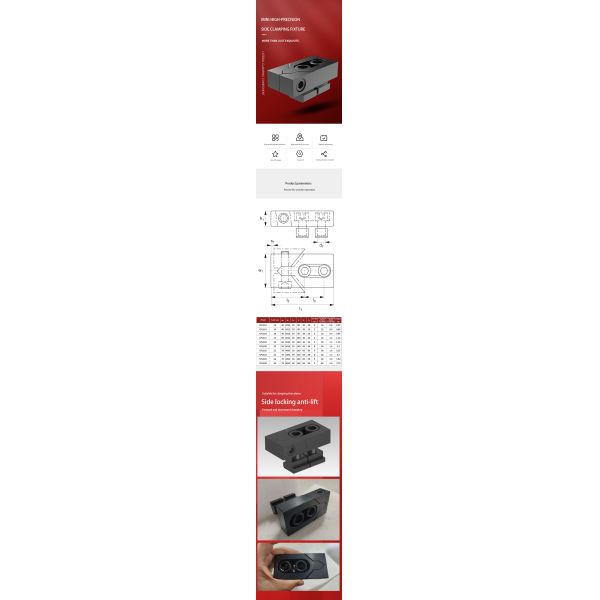

CPLC28 3.35KG Clamping Jaws For Side Fixtures Low-Clearance Design
CPLC28 3.35KG Clamping Jaws For Side Fixtures Low-Clearance Design
Specifications
Brand Name :
ADJIG
Model Number :
CPLC28
Place of Origin :
Chongqing, China
MOQ :
5
Price :
115-120 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Mounting Type :
Side clamping
Weight :
3.35KG
Usage :
Holding workpieces
Application :
CNC machining
Clamping Force :
Adjustable
Size :
Customized
Material :
Heat treated steel
Description

CPLC28 Clamping Jaws for Side Fixtures Low-Clearance Design

Material
Steel, heat treated,blackened.


Technical Notes
Ideal for clamping low-profile plates. Acutated on one side via hex. key (provided).


Tips
Clamping action is forwards and down-wards into the workpiece.

Model W1 d1 h1 l1 l2 l3 Stroke
(mm)		 clamping force
F1(KN)		 clamping force
F2(KN)		 Weight
(kg)
CPLC12 40 M10 20 80 39 26 3 16 0.6 0.57
CPLC14 40 M12 20 80 39 26 3 22 0.9 0.65
CPLC16 40 M12 20 80 39 26 3 22 0.9 0.65
CPLC17 50 M14 25 100 46 34 4 32 1.2 1.15
CPLC18 50 M16 25 100 46 34 4 36 1.4 1.25
CPLC20 50 M16 25 100 46 34 4 36 1.4 1.3
CPLC22 78 M20 30 140 65 50 5 36 1.4 3.15
CPLC24 78 M20 30 140 65 50 5 36 1.4 3.3
CPLC28 78 M24 30 140 65 50 5 40 1.6 3.53
CPLC30 78 M24 30 140 65 50 5 40 1.6 3.79
