Adjustable Side Clamping For Precise Workholding CNC Fixture
Adjustable Side Clamping For Precise Workholding CNC Fixture
Specifications
Brand Name :
ADJIG
Model Number :
CP13-0825-G
Place of Origin :
Chongqing, China
MOQ :
3
Price :
30-42 USD per item
Payment Terms :
T/T,L/C
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Material :
S45C
Color :
Black
Weight :
0.15 kg
Heat treatment :
HRC 38°
Surface Finish :
Blackening treatment
Description

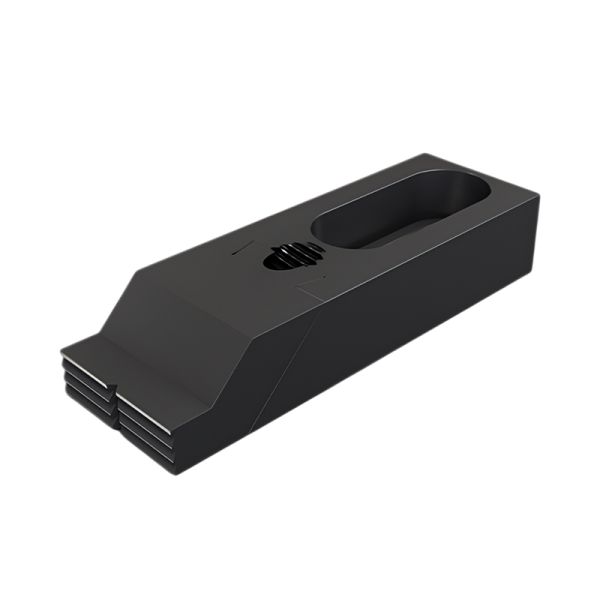

Adjustable Side Clamp For Precise Workholding CNC Fixture

Material: S45C


Heat treated: HRC 38°


Surface finish: Black Oxide.


Application:

Low profile side clamp keeps top surfaces clear for machining, ideal for rough or finished parts, available with plain or serrated jaw.

Clamps and Pulls Down Component



The CP12-ADJUSTABLE SIDE CLAMP is crafted from S45C/CK45, heat-treated to HRC 38, and finished with black oxide. It's designed for low-profile side clamping, keeping top surfaces clear for machining. Suitable for both rough and finished parts, it's available with either plain or serrated jaws, catering to various clamping needs.

Part Number A B C D E F G H J K L TYPE KG
CP13-0825-G 72 25 8.5 45.5 16.5 16 7 14 8.5 5 7 Flat Surface 0.15
CP13-1235-G 105 35 10.5 62.5 30 22 12 20 13.5 6 9 0.45
CP13-1640-G 133 40 14 80.5 35 30 14 14 17 8 13 0.88
CP13-0825-S 73.5 25 8.5 47 16.5 16 7 7 8.5 5 7 Toothed Surface 0.15
CP13-1235-S 107 35 10.5 64 30 22 12 12 13.5 6 9 0.45
CP13-1640-S 135 40 14 82 35 30 14 14 17 8 13 0.88
