Quick Setup Side Clamping Fixture Precision Holding CNC Fixture
Quick Setup Side Clamping Fixture Precision Holding CNC Fixture
Specifications
Brand Name :
ADJIG
Model Number :
CP38-16100-G
Place of Origin :
Chongqing, China
MOQ :
3
Price :
30-42 USD per item
Payment Terms :
T/T,L/C
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Material :
S45C
Color :
Black
Weight :
1.4 kg
Heat treatment :
HRC 38°
Surface Finish :
Blackening treatment
Description

Side Clamping Fixture for Quick Setup Precision Holding CNC Fixture

Material: S45C(JIS) / CK45(DIN),


Heat treated: HRC 38°


Surface finish: Black Oxide.


Application:

Low profile side clamp keeps top surfaces clear for machining, ideal for rough or finished parts, available with plain or serrated jaw.

Clamps and Pulls Down Component

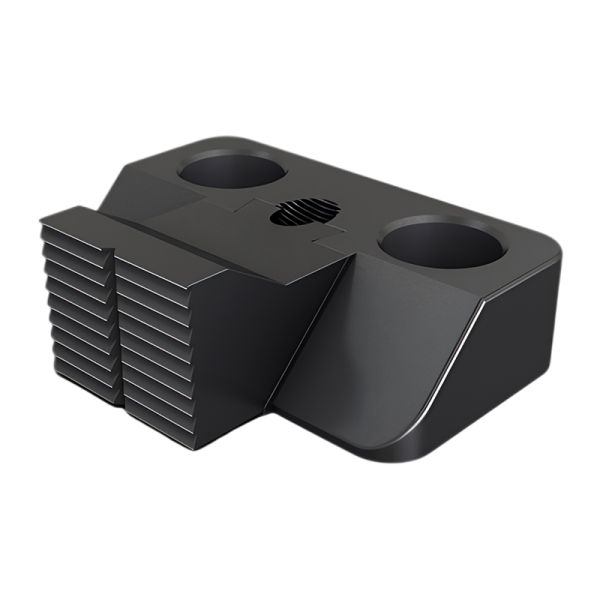

The CP38-ADJUSTABLE SIDE CLAMP is crafted from S45C/CK45, heat-treated to HRC 38, and finished with black oxide. It's designed for low-profile side clamping, keeping top surfaces clear for machining. Suitable for both rough and finished parts, it's available with either plain or serrated jaws, catering to various clamping needs.

Part Number A B C D E F G H 1 J K L TYPE KG
CP38-0865-G 45.14 65 19.5 23 33.5 16 7 40 25 M8 5 7.4 Flat Surface 0.22
CP38-1285-G 65.14 85 29 33 48 22 12 50 35 M12 6 9 0.65
CP38-16100-G 85.64 100 39 48 68 30 14 50 40 M16 8 12.5 1.4
CP38-0865-S 46.45 65 19.5 23 33.5 16 7 40 25 M8 5 7.4 Toothed Surface 0.22
CP38-1285-S 67.14 85 29 33 48 22 12 50 35 M12 6 9 0.65
CP38-16100-S 87.14 100 39 48 68 30 14 50 40 M16 8 12.5 1.4
