8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems
8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems
Specifications
Brand Name :
ADJIG
Model Number :
AJQ-M
Place of Origin :
Chongqing, China
MOQ :
5
Price :
5 USD per item
Payment Terms :
T/T,L/C
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
MODEL :
AJQ-M
CLAMPING FORCE (N) :
8.8
TIGHTENING TORQUE (N.M) :
14.5
WEIGHT(g) :
115
MAIN BODY :
6061T6 ANODIZED FILM/7075 ANODIZED FILM
WEDGE BLOCK :
SUN31L FERRIC OXIDE FILM
Description

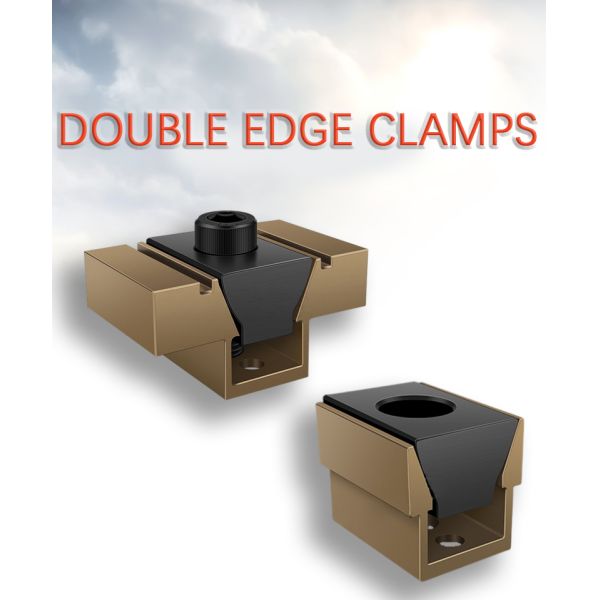

Precision Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems

Fixtures generate powerful lateral forces through a single cam-driven screw, pushing workpieces into fixed rails or locators. Their low-profile design and synchronized jaw movement make them ideal for simultaneously clamping two or more workpieces in confined spaces. Steel jaws can be replaced with machinable aluminum inserts to accommodate custom installation requirements.

Clamping multiple parts | Secure two or more workpieces with a single screw


Back-to-back motion | Jaw synchronized movement to prevent part displacement

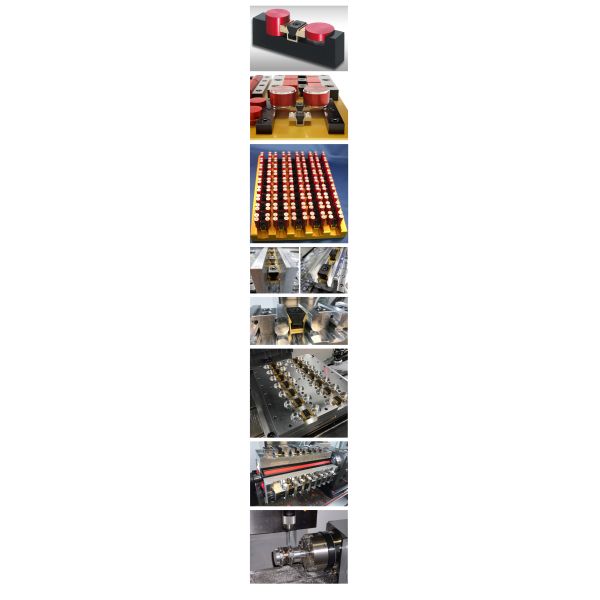

High-density fixture | Designed for crowded fixture layouts and small-batch part production

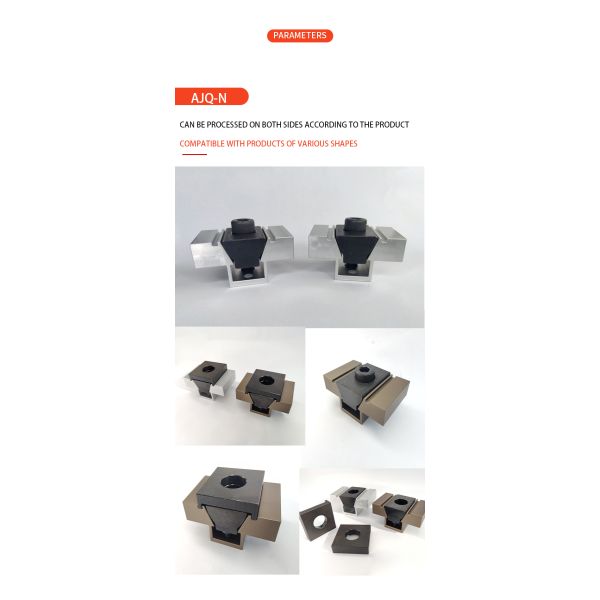

Replaceable jaws | Offers hardened or machinable options


Consistent and repeatable | Reliable and stable clamping force across batches

MODEL CLAMPING FORCE (N) TIGHTENING TORQUE (N.M) WEIGHT(g) MAIN BODY WEDGE BLOCK

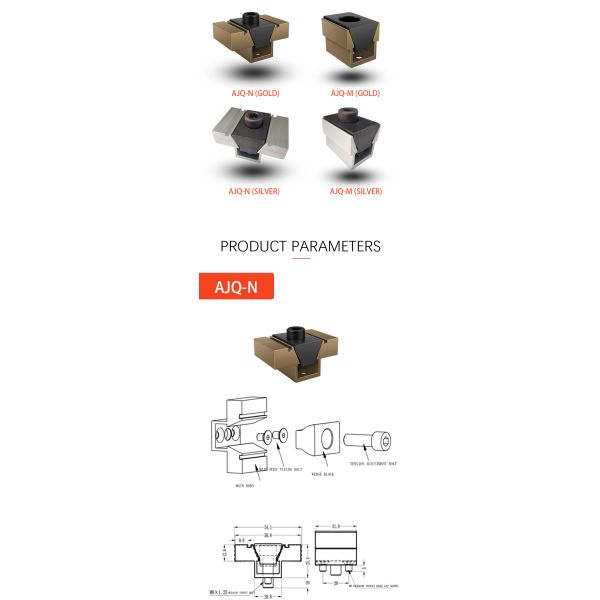

AJQ-N 8.8 14.5 85 6061T6 ANODIZED FILM 7075 ANODIZED FILM SUN31L FERRIC OXIDE FILM

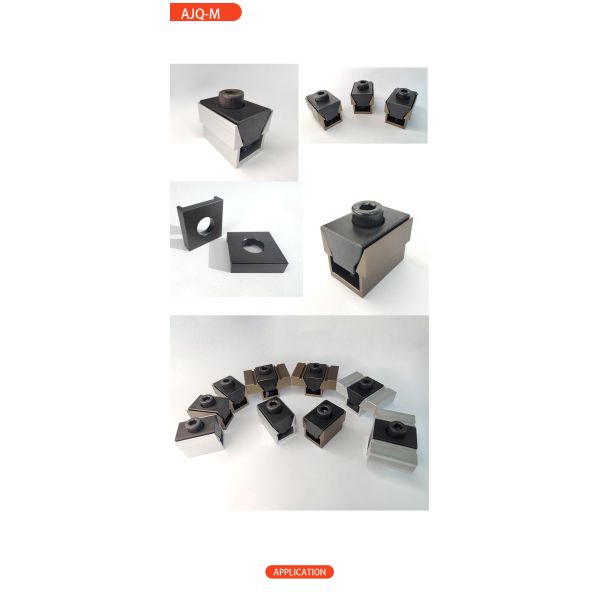

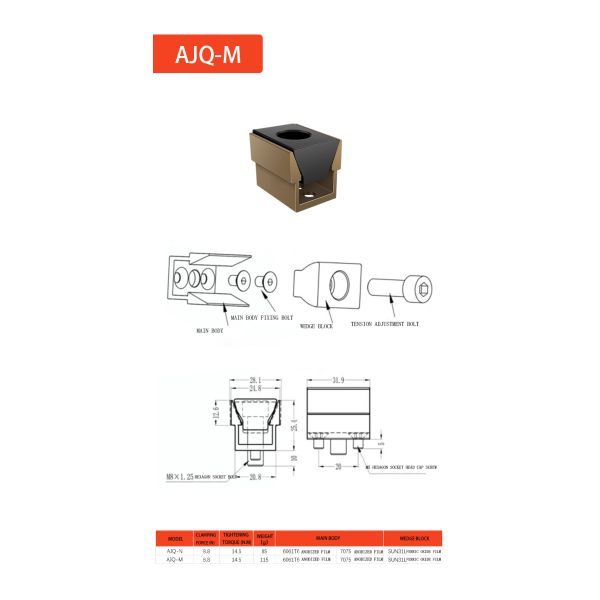

AJQ-M 8.8 14.5 115 6061T6 ANODIZED FILM 7075 ANODIZED FILM SUN31L FERRIC OXIDE FILM

8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems

8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems

8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems

8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems

8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems8.8n Anodized Double Edge Clamps Expanding Micro Clamp For Compact Fixture Systems
