Machinable Fixture Plate Subplate Tooling Plate for Precision Modular Workholding
Machinable Fixture Plate Subplate Tooling Plate for Precision Modular Workholding
Specifications
Brand Name :
ADJIG
Model Number :
BP04
Place of Origin :
Chongqing, China
MOQ :
5
Payment Terms :
L/C,T/T
Supply Ability :
Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/Wooden crate
Price :
560-1410 USD per item
Material :
FC30
Heat Treatment :
Burnished
Description

Machinable Fixture Plate Subplate Tooling Plate for Precision Modular Workholding


MC Base Plate
Material: FC30
Heat Treatment: Burnished
Application: For use in horizontal MC
Features: Can be drilled and machined to create custom fixtures as needed.


This precision Machinable Fixture Plate is the ultimate foundation for building advanced modular workholding systems. Crafted from high-quality aluminum, its fully machinable surface allows you to create custom locating pins, threaded holes, and specialized pockets for perfect part positioning. The integrated grid of precision mounting holes ensures repeatable, rock-solid setups for any CNC machining task. Drastically reduce fixture design and setup time while achieving unparalleled accuracy. This versatile subplate seamlessly integrates with existing modular components, offering limitless configuration possibilities. It's the indispensable cornerstone for high-mix manufacturing, prototyping, and any application demanding maximum flexibility and precision in workholding.

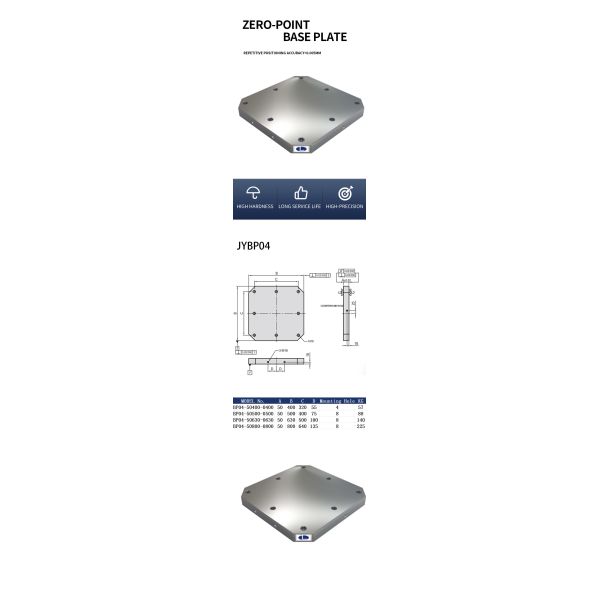

MODEL NO. A B C D Mountingholes KG
BP04-50400-0400 50 400 320 55 4 57
BP04-50500-0500 50 500 400 75 8 88
BP04-50630-0630 50 630 500 100 8 140
BP04-50800-0800 50 800 640 135 8 225
