Workholding Fixture Base Plate CNC Base Plate Machining Center Modular Tooling Plate
Workholding Fixture Base Plate CNC Base Plate Machining Center Modular Tooling Plate
Specifications
Brand Name :
ADJIG
Model Number :
BP15
Place of Origin :
Chongqing, China
MOQ :
5
Payment Terms :
L/C,T/T
Supply Ability :
Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/Wooden crate
Price :
560-1410 USD per item
Material :
FC30
Finish :
Burnished
Description

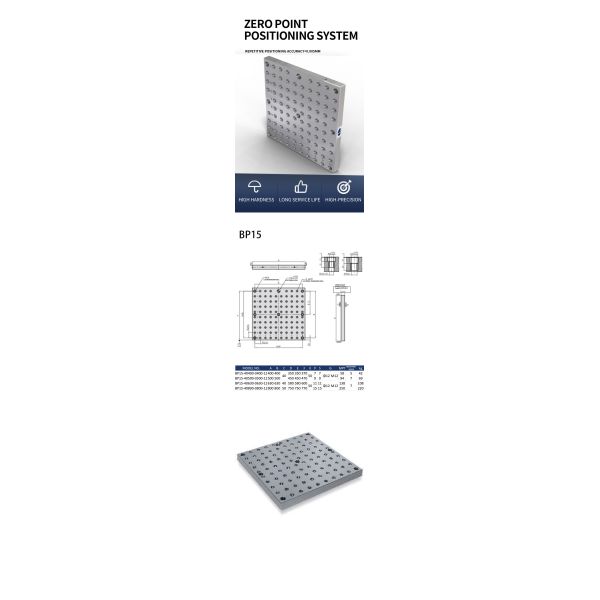

Fixture Plate Sub-Plate Baseplate for CNC Machining Center Modular Tooling Plate Workholding

Sub-Plate
Material: FC30
Finish: Burnished
Application: Suitable for replaceable double-sided bases
Features: Utilizes hole-based positioning with standardized fixture components for rapid assembly of a complete set of customized fixtures meeting specific requirements.

Model No. A B C D E F K P S G MFT Mountingholes KG
BP15-40400-0400-12 400 400 40 350 350 370 50 7 7 Ø12 M12 58 5 42
BP15-40500-0500-12 500 500 450 450 470 9 9 94 7 69
BP15-40630-0630-12 630 630 40 580 580 600 50 11 11 Ø12 M12 138 7 108
BP15-50800-0800-12 800 800 50 750 750 770 15 15 250 220

Model No. A B C D E F K P S G MFT Mountingholes KG
BP15-40400-0400-16 400 400 40 350 350 370 50 7 7 Ø16 M16 58 5 41
BP15-40500-0500-16 500 500 450 450 470 9 9 90 7 67
BP15-40630-0630-16 630 630 40 580 580 600 50 11 11 Ø16 M16 138 7 105
BP15-50800-0800-16 800 800 50 750 750 770 15 15 246 215
