Machinable Fixture Base Plate Modular Tooling System Sub Plate Fixture Plate
Machinable Fixture Base Plate Modular Tooling System Sub Plate Fixture Plate
Specifications
Brand Name :
ADJIG
Model Number :
BP19
Place of Origin :
Chongqing, China
MOQ :
5
Payment Terms :
L/C,T/T
Supply Ability :
Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/Wooden crate
Price :
560-1410 USD per item
Material :
S45C
Heat Treatment :
Burnished
Description

Machinable Sub-Plate Fixture Plate for CNC Workholding Modular Tooling System OEM Customizable

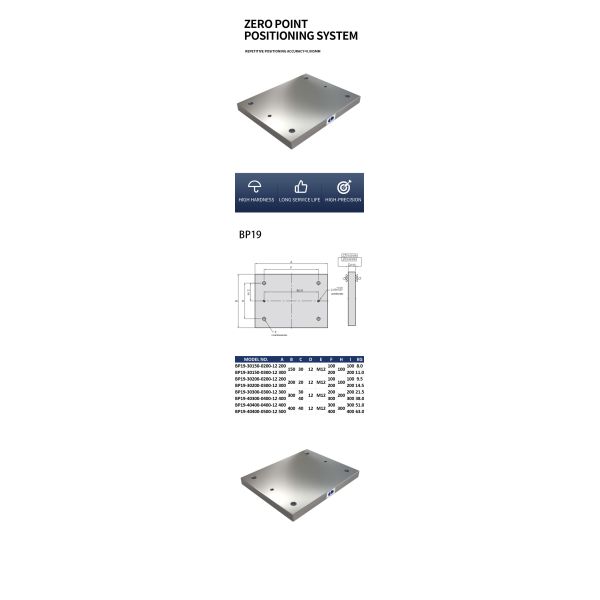

SUB-PLATE
Material: S45C
Heat Treatment: Burnished
Application: Suitable for various substrates or bases
Features: Can be drilled and machined to create custom fixtures according to specific requirements

Model No. A B C D E F H I KG
BP19-30150-0200-12 200 150 30 12 M12 100 100 100 8
BP19-30150-0300-12 300 200 200 11
BP19-30200-0200-12 200 200 30 12 M12 100 100 100 9.5
BP19-30200-0300-12 300 30 200 200 14.5
BP19-30300-0300-12 300 300 40 12 M12 200 200 200 21.5
BP19-40300-0400-12 400 300 300 38
BP19-40400-0400-12 400 400 40 12 M12 300 300 300 51
BP19-40400-0500-12 500 400 400 63

Model No. A B C D E F H I KG
BP19-30150-0200-16 200 150 30 16 M16 100 100 100 8
BP19-30150-0300-16 300 200 200 11
BP19-30200-0200-16 200 200 30 16 M16 100 100 100 9.5
BP19-30200-0300-16 300 30 200 200 14.5
BP19-30300-0300-16 300 300 40 16 M16 200 200 200 21.5
BP19-40300-0400-16 400 300 300 38
BP19-40400-0400-16 400 400 40 16 M16 300 300 300 51
BP19-40400-0500-16 500 400 400 63
