M12 M16 Gridded Fixture Plate Modular Clamping Plate Subplate Grid Holes
M12 M16 Gridded Fixture Plate Modular Clamping Plate Subplate Grid Holes
Specifications
Brand Name :
ADJIG
Model Number :
BP05
Place of Origin :
Chongqing, China
MOQ :
5
Payment Terms :
L/C,T/T
Supply Ability :
Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/Wooden crate
Price :
560-1410 USD per item
Material :
FC30
Heat Treatment :
Burnished
Description

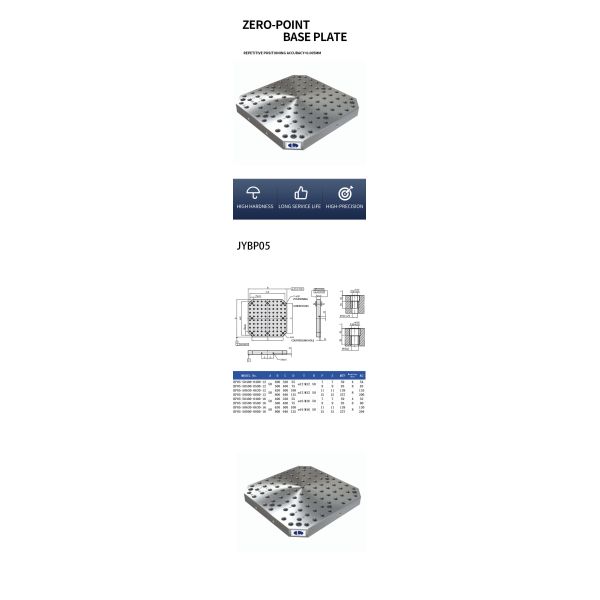

Gridded Fixture Plate Modular Clamping Plate Subplate Grid Holes for Flexible Workholding Systems

Base Plate
Material: FC30
Heat Treatment: Burnished
Application: Suitable for horizontal MC
Features: Utilizes hole-based positioning with standardized fixture components for rapid assembly
A set of fixtures meeting requirements

Model No. A B C D T H P S MTP Mountingholes KG
BP05-50400-0400-12 50 400 320 55 Ø12 M12 50 7 7 59 4 54
BP05-50500-0500-12 500 400 75 9 9 93 8 83
BP05-50630-0630-12 50 630 500 100 Ø12 M12 50 11 11 139 8 135
BP05-50800-0800-12 800 640 135 15 15 237 206
BP05-50400-0400-16 50 400 320 55 Ø16 M16 50 7 7 59 4 52
BP05-50500-0500-16 500 400 75 9 9 93 8 80
BP05-50630-0630-16 50 630 500 100 Ø16 M16 50 11 11 139 8 130
BP05-50800-0800-16 800 640 135 15 15 237 204
