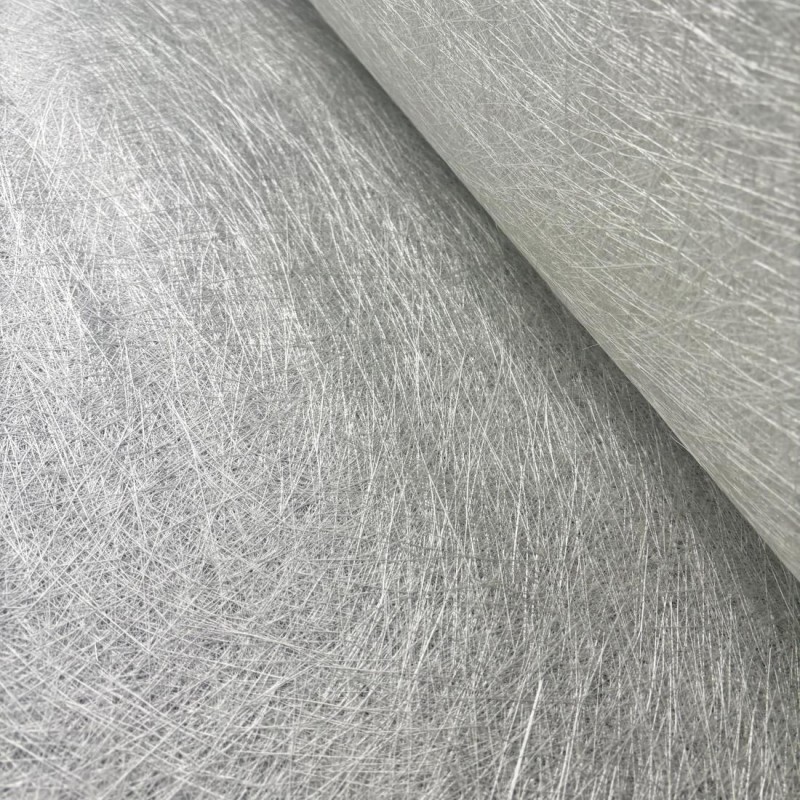

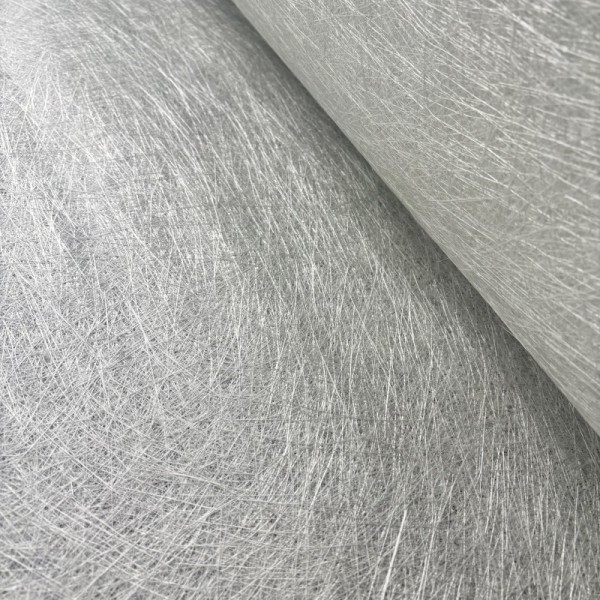

Automotive-Grade Glass Fiber Chopped Strand Mat with High-Performance Resin-Compatible E-Glass Fiber Reinforcement
Automotive-Grade Glass Fiber Chopped Strand Mat with High-Performance Resin-Compatible E-Glass Fiber Reinforcement
Automotive-Grade Glass Fiber Chopped Strand Mat with High-Performance Resin-Compatible E-Glass Fiber Reinforcement
Automotive-Grade Glass Fiber Chopped Strand Mat with High-Performance Resin-Compatible E-Glass Fiber Reinforcement
Automotive-Grade Glass Fiber Chopped Strand Mat with High-Performance Resin-Compatible E-Glass Fiber Reinforcement
Automotive-Grade Glass Fiber Chopped Strand Mat with High-Performance Resin-Compatible E-Glass Fiber Reinforcement
Specifications
Brand Name :
WGSC
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
T/T
Moisturecontent :
<0.5%
Fiber Type :
E-Glass
Grammage :
450-4000(g/m²)​
Width :
1040mm-3300mm
Resin Compatibility :
Polyester, Vinyl Ester, Epoxy
Thickness :
0.5mm to 1.5mm
Color :
White
Acid Resistance :
Excellent
Description

Automotive-Grade Glass Fiber Chopped Strand Mat – High-Performance Resin-Compatible Reinforcement​

Product Overview​

Automotive-Grade Glass Fiber Chopped Strand Mat​ is engineered for lightweight automotive components, combining 50mm chopped E-glass fibers​ with polyester/polyurethane binders. Designed for hand lay-up, RTM, and SMC processes, this mat delivers rapid resin penetration and consistent mechanical properties, critical for automotive interior panels, chassis parts, and crash-resistant structures .

Key Features​

  • Dual-Binder Compatibility: Available in powder​ (7.5-8.0% combustible content) and emulsion​ (3.0-5.0% combustible content) versions for tailored viscosity .
  • Thermal Stability: Withstands continuous service up to 150°C​ in under-hood applications.
  • Mold Release: Low surface tack ensures easy demolding in complex geometries.

Applications​

Component​
Function​
Door Panels
Lightweight structural reinforcement
Hood Liners
Sound dampening & impact resistance
Battery Trays (EV)
Corrosion-resistant electrical insulation

Technical Specs​

Parameter​
Value​
Grammage
300–450 g/m² (±10%)
Tensile Strength (Warp)
≥80 N/150mm (ASTM D3776)
Resin Compatibility
Unsaturated polyester, epoxy, vinyl ester

Packaging & Storage​

  • Primary: Rolled on 76mm diameter tubes​ with PE film wrapping.
  • Bulk: Palletized with stretch wrap for humidity control.
  • Shelf Life: 12 months at 15–35°C, ≤65% RH .
