Vermiculite - Coated Glass Fiber Cloth
Vermiculite - Coated Glass Fiber Cloth
Vermiculite - Coated Glass Fiber Cloth
Vermiculite - Coated Glass Fiber Cloth
Specifications
Brand Name :
WGSC
Certification :
ISO9001
Place of Origin :
CHINA
Alkali Resistance :
Excellent
Fiber Type :
E-Glass
Acid Resistance :
Excellent
Heat Resistance :
Good
Application :
Reinforced Plastic and Insulation
Resin Compatibility :
Polyester, Vinyl Ester, Epoxy
Payment Terms :
T/T
Description

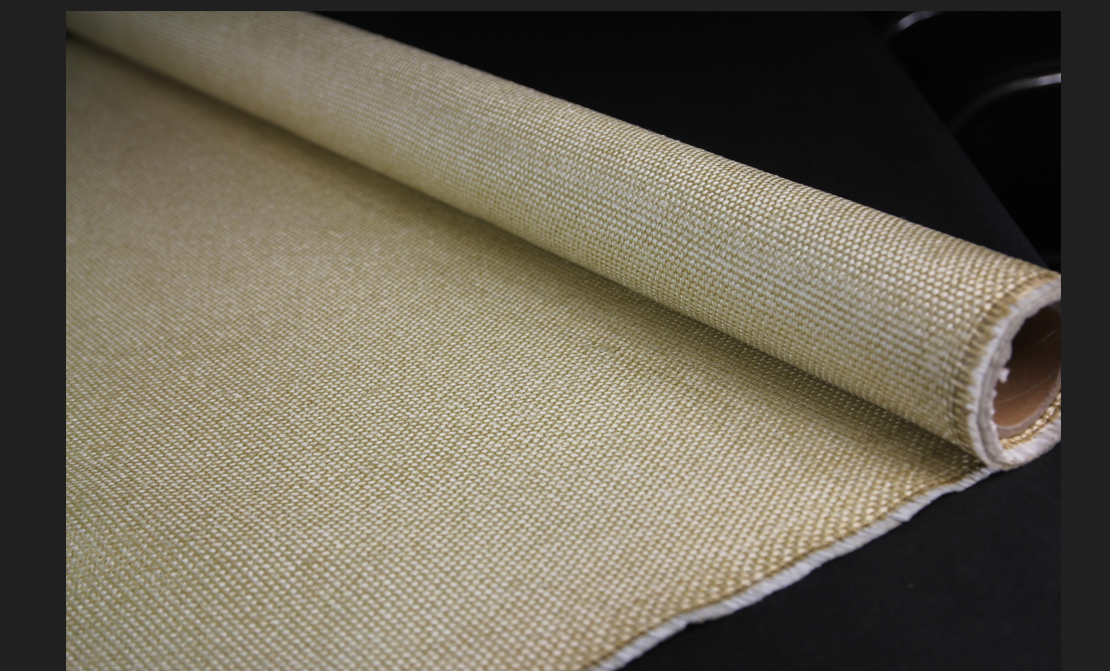

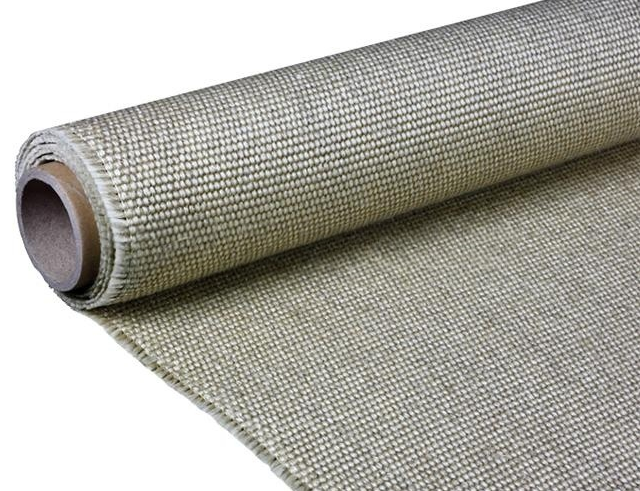

Vermiculite - Coated Glass Fiber Cloth

Vermiculite - coated glass fiber cloth is a high - performance composite material. It is composed of an alkali - free glass fiber (substrate) and a vermiculite (coating material). As a natural mineral, vermiculite forms an inorganic protective layer on the glass fiber surface via a coating process. This structure boosts the composite material’s short - term high - temperature resistance to up to 1000°C and enables a continuous service temperature of up to 800°C.

Main Technical Parameters

Item
Value
Product Model
WGSC - 5008
Weight
1070 ± 10% g/m²
Thickness
1.4 ± 0.05 mm
Color
Tawny
Tensile Strength
Warp: 2900 N/inch; Weft: 1800 N/inch
Flame Retardant Grade
Self - extinguishing when away from fire
Operating Temperature
500°C
Standard Width
1000 mm, 1500 mm, 2000 mm

Key Features

  • •
    Temperature Resistance: Withstands a temperature range of - 70°C to 800°C (short - term up to 1000°C).
  • •
    Thermal Insulation: Boasts low thermal conductivity (0.03–0.056 W/m·K), effectively minimizing heat transfer.
  • •
    Fireproof Property: Non - combustible and self - extinguishing, offering reliable fire safety.
  • •
    Chemical & Molten Metal Resistance: Resists acids, alkalis, and molten metals like aluminum and zinc.
  • •
    Mechanical Strength: Delivers a high tensile strength with a fracture strength of 3600 MPa.
  • •
    Electrical Insulation: Ensures dielectric stability for electrical insulation applications.
  • •
    Wear & Abrasion Resistance: Vermiculite coating enhances wear and abrasion resistance, prolonging service life.
  • •
    Environmental Durability: Tolerates ozone, UV exposure, and thermal shock, maintaining performance in harsh environments.
In summary, vermiculite - coated glass fiber cloth excels in high - temperature resistance, wear resistance, acid/alkali corrosion resistance, and aging resistance. It is an optimal choice for industries demanding superior thermal and chemical performance.
