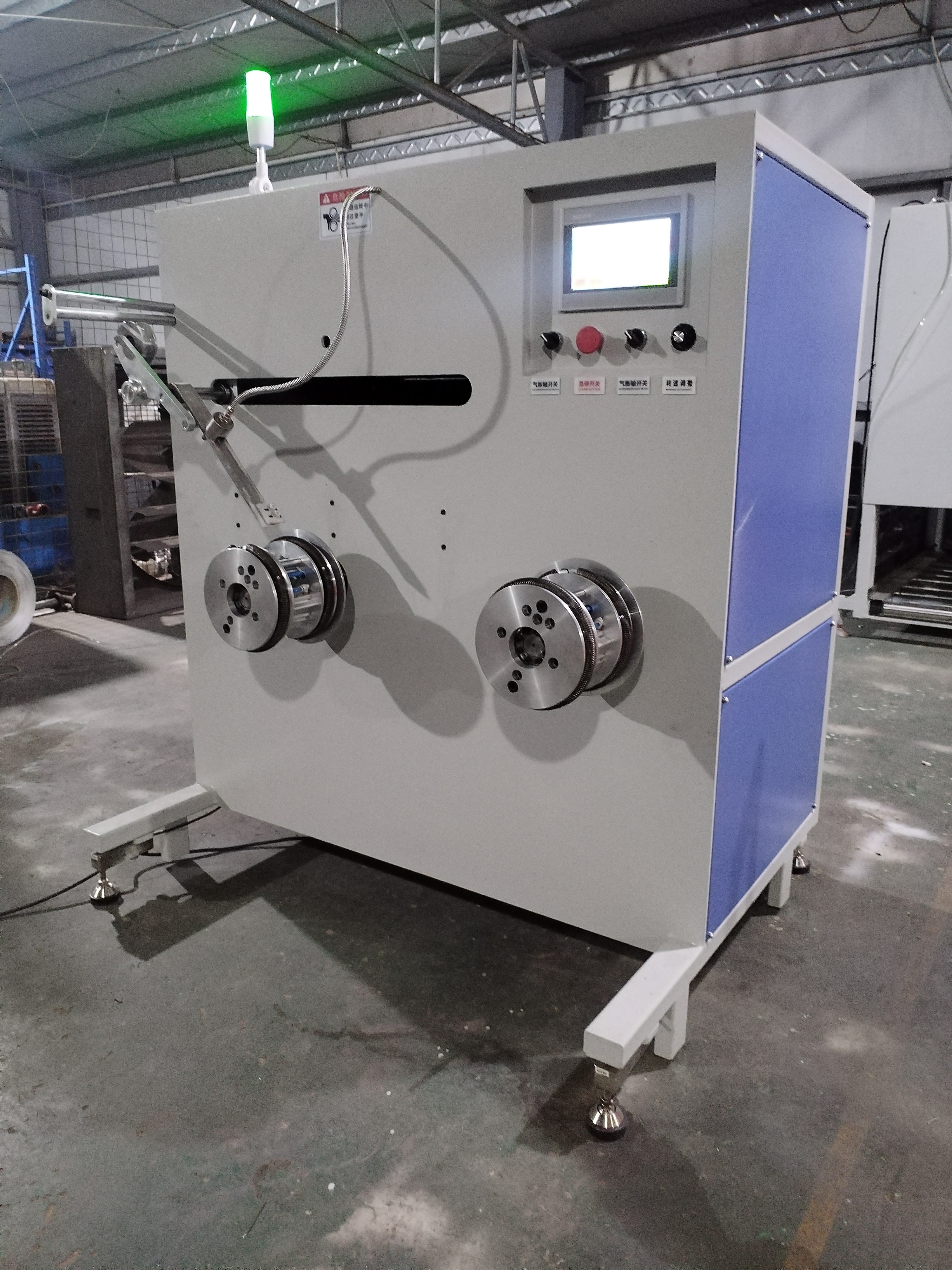

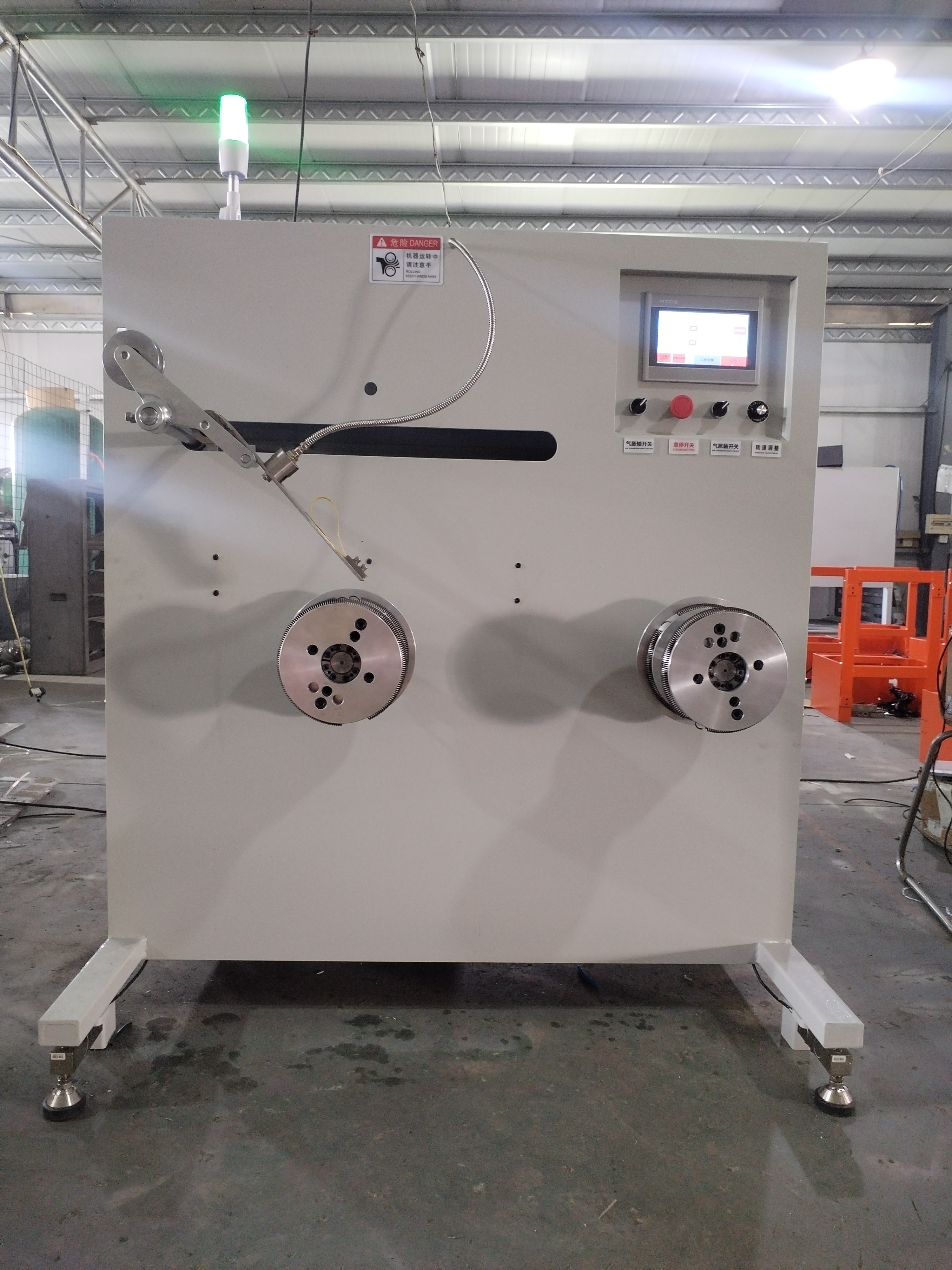

5mm Straps PP Strapping Winder 220V 50hz Plastic Banding Machine
5mm Straps PP Strapping Winder 220V 50hz Plastic Banding Machine
5mm Straps PP Strapping Winder 220V 50hz Plastic Banding Machine
5mm Straps PP Strapping Winder 220V 50hz Plastic Banding Machine
Specifications
Certification :
CE ISO
Configure :
Standard Model, Customizable
Model Number :
PPSA-SS
Characterization :
Fully Automatic Winding Machine
MOQ :
1SET
Delivery Time :
30-60Days
Usage :
Winding Of PP Strapping Band
Payment Terms :
T/T
Price :
$3,500.00 – $4,600.00
Model :
PPSA-SS
Supply Ability :
20Sets/month
Brand Name :
CHLOE
Voltage :
220V/50hz
Packaging Details :
Wooden Box
Place of Origin :
Shanghai, China
Warranty :
1 Year
Description
PP Strap Winder with dual motor power and customizable strap calculation by meter or weight for optimized packaging
This dual-station PP strap winder supports free switching between meter counting and weight counting modes with simple operation. It fits strap widths of 8–18mm (customizable for 5mm straps) and thicknesses of 0.4–1.4mm, compatible with 200mm and 250mm inner-diameter paper cores. The winding speed is adjustable from 50 to 300 meters per minute to meet diverse production demands.
Model PPFA-MFR-900
Strap Width 8-18mm
Strap Thickness 0.4-1.4mm
Strap Paper Core Width ≤200mm
Mandrel Diameter 200mm / 250mm
Maximum Coil Diameter 500mm
Winding Speed 50-300 m/min
Number of Winding Station 2
Winding Servo Power 1500W
Alignment Servo Power 400W
Machine Dimension 900mm*907mm*1576mm (L*W*H)
Machine Weight Approx. 350KG
Working Voltage 220V / 50Hz

5mm Straps PP Strapping Winder 220V 50hz Plastic Banding Machine

Key Features & Advantages
  • Adopts well-known brand core servo, PLC and pneumatic parts for stable operation.
  • High-standard surface coating with good hardness, impact resistance and uniform color.
  • Dual-station design with wide adjustable size and speed to fit diverse PP strap production.
Application Scenarios
  • Finished PP strapping winding on production lines
  • Intelligent strapping production workshops
Packaging & Shipping

Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.

Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.

Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.

Accessories: Includes product certificate, packing list, and separately packed spare parts and components.

Final Inspection: Quality inspectors conduct final checks against export standards before shipment.

5mm Straps PP Strapping Winder 220V 50hz Plastic Banding Machine
Frequently Asked Questions
Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.
Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.
What specifications of strapping does the machine support?
This machine is suitable for PP strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.
How to select the right machine model?
We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.
Do you provide installation and commissioning guidance?
We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.
Do you have a professional R&D team?
Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.
How do you guarantee equipment quality?
Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
