Industrial PP Strapping Winder 0.4mm – 1.4mm Thickness Automatic Strapping Machine
Industrial PP Strapping Winder 0.4mm – 1.4mm Thickness Automatic Strapping Machine
Industrial PP Strapping Winder 0.4mm – 1.4mm Thickness Automatic Strapping Machine
Industrial PP Strapping Winder 0.4mm – 1.4mm Thickness Automatic Strapping Machine
Specifications
Certification :
CE ISO
Configure :
Standard Model, Customizable
Model Number :
PPSA-LM
Characterization :
PP Strapping Winding Machine
MOQ :
1SET
Delivery Time :
30Days
Usage :
Winding Of PP Strapping Band
Payment Terms :
T/T
Price :
$2,300.00 – $3,000.00
Model :
PPSA-LM
Supply Ability :
30Sets/month
Brand Name :
CHLOE
Voltage :
380V/50/60hz
Packaging Details :
Wooden Box
Place of Origin :
Shanghai, China
Warranty :
1 Year
Description
PP Strapping Winder Semi Automatic Device with High Precision Servo Motors and Customizable Strap Dimensions for Industrial
This PP strapping winder Model PPSA-LM is specially developed for standard PP strapping production lines. It fits straps of 8–18mm width and 0.4–1.4mm thickness, compatible with 200mm inner diameter paper cores, and core sizes can be customized.
The maximum winding outer diameter is 550mm, with adjustable winding speed ranging from 50 to 300 m/min. Fitted with a constant tension winding structure, it prevents strap deviation and coil collapse.
The machine adopts core components from top brands to ensure stable winding tension and neatly formed coils. Featuring excellent cost performance, it helps enterprises achieve high-efficiency standardized mass production.
Model PPSA-LM
Strap Width 8-18mm
Strap Thickness 0.4-1.4mm
Strap Paper Core Width ≤200mm
Mandrel Diameter 200mm
Maximum Coil Diameter 550mm
Winding Speed 50-300 m/min
Number of Winding Station 1
Winding Servo Power 1500W
Alignment Servo Power 400W

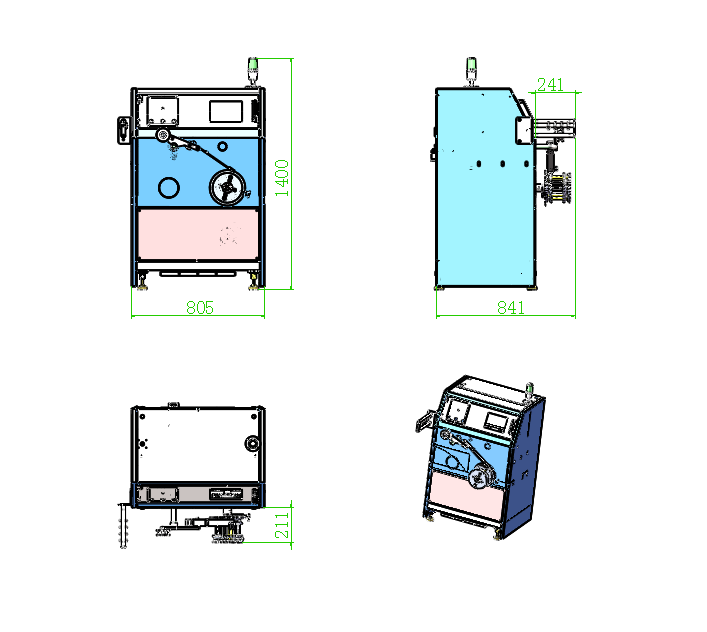

Machine Dimension 805mm*841mm*1400mm (L*W*H)
Machine Weight Approx. 200KG
Working Voltage 220V / 50/60Hz

Industrial PP Strapping Winder 0.4mm – 1.4mm Thickness Automatic Strapping Machine

Key Features & Advantages
  • Easy operation and high production efficiency
  • Customizable air-expanding shaft for wide compatibility
Application Scenarios

1.Finished PP strapping winding on production lines
2.widely used in strapping factories for building materials, home appliances, logistics, ceramics and other industries

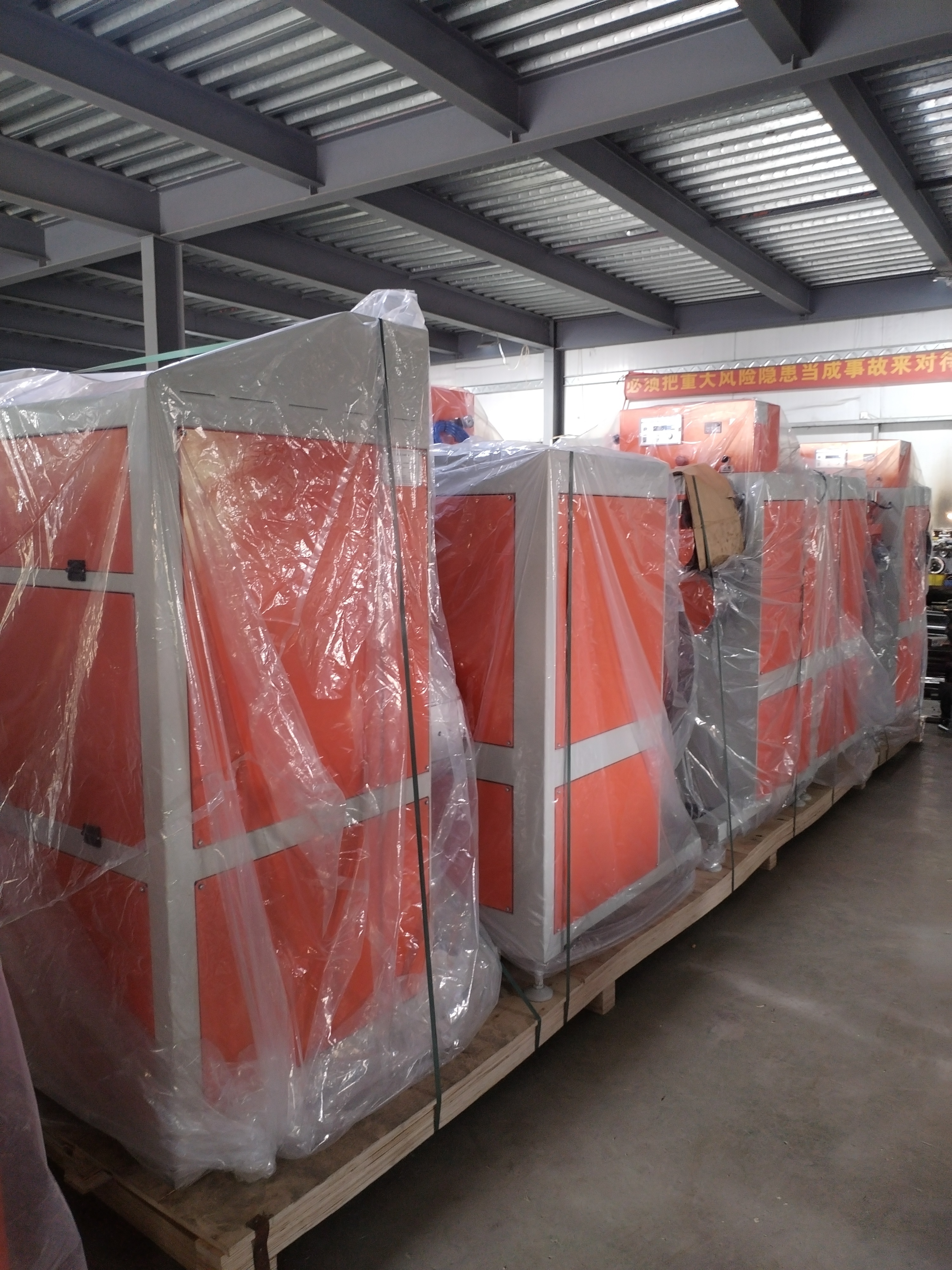

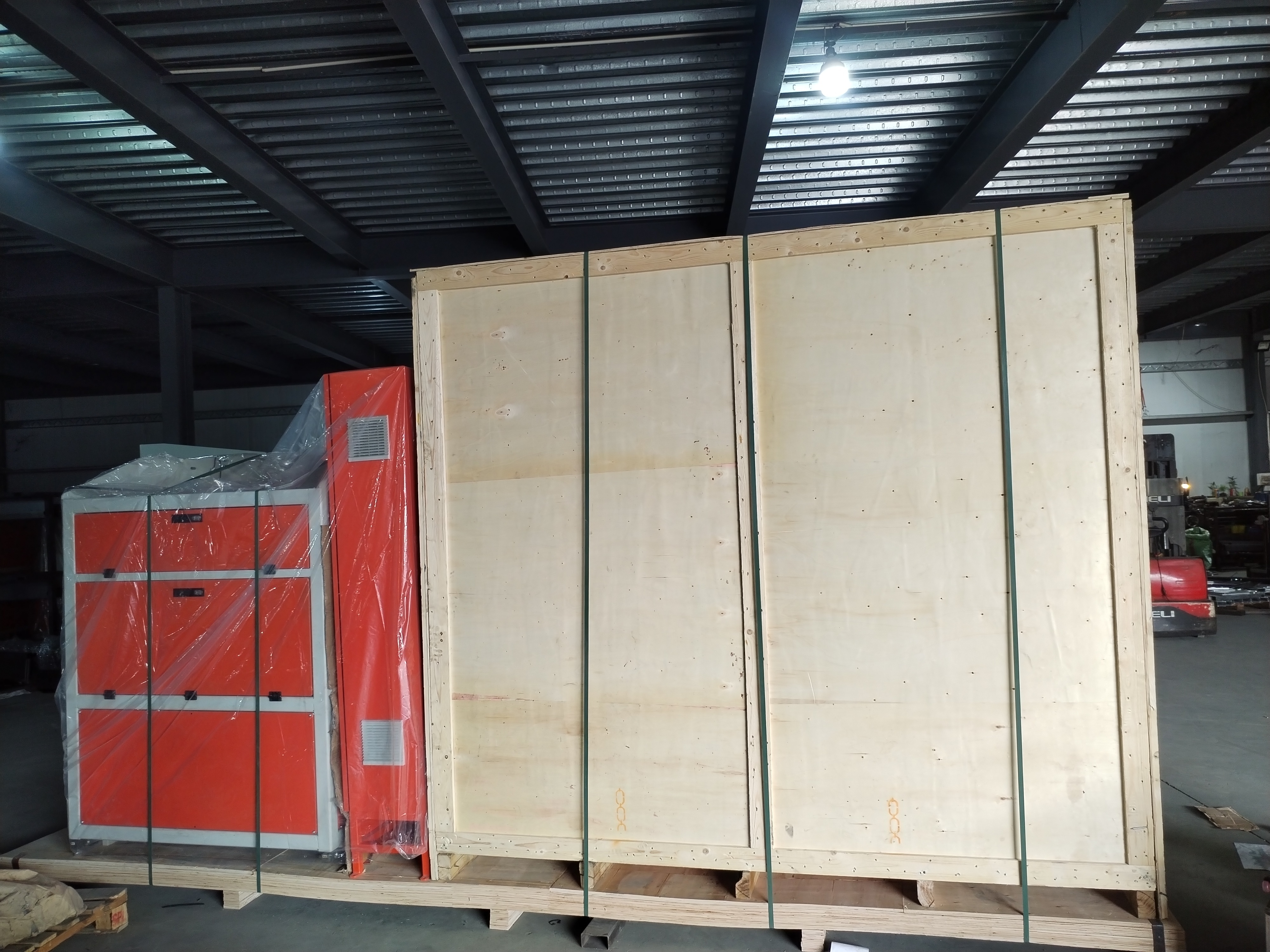

Packaging & Shipping

Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.

Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.

Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.

Accessories: Includes product certificate, packing list, and separately packed spare parts and components.

Final Inspection: Quality inspectors conduct final checks against export standards before shipment.

Industrial PP Strapping Winder 0.4mm – 1.4mm Thickness Automatic Strapping Machine

Industrial PP Strapping Winder 0.4mm – 1.4mm Thickness Automatic Strapping Machine

Frequently Asked Questions
Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.
Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.
What specifications of strapping does the machine support?
This machine is suitable for PP strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.
How to select the right machine model?
We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.
Do you provide installation and commissioning guidance?
We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.
Do you have a professional R&D team?
Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.
How do you guarantee equipment quality?
Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
