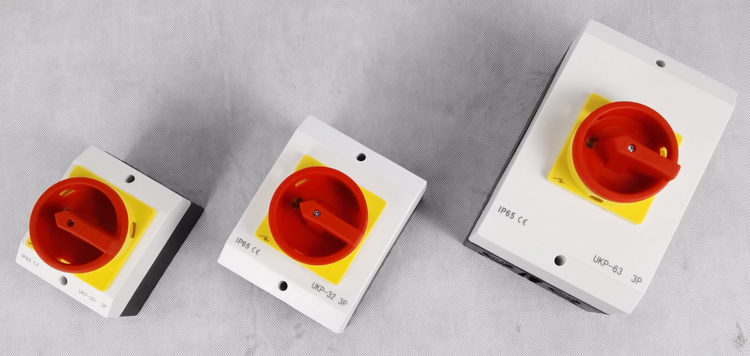

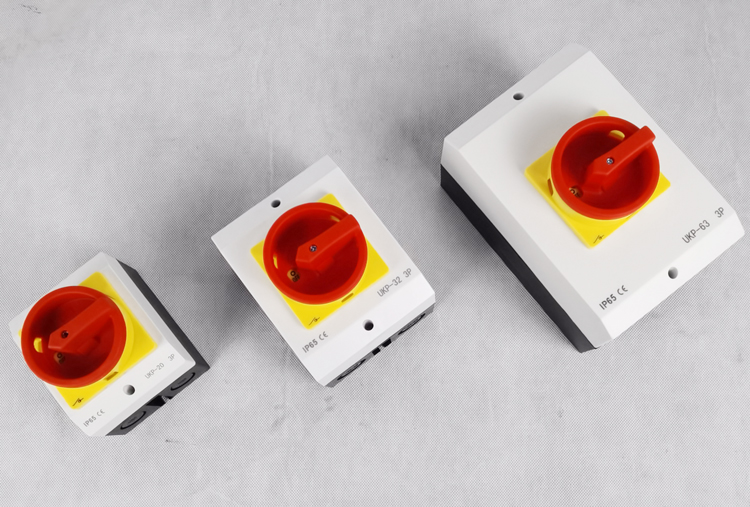

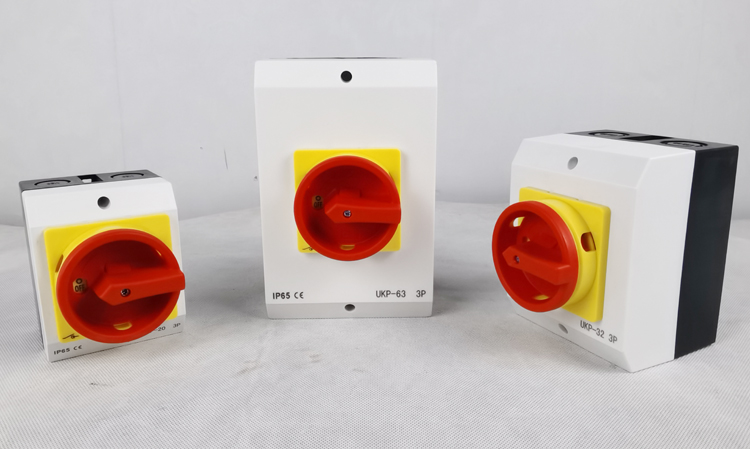

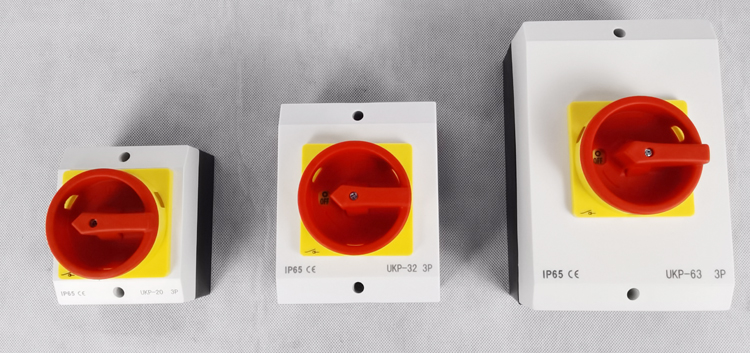

32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase
Specifications
Max. Current :
125A
Waterproof :
Included
Rated Current :
16A/20A/25A/32A/40A/63A/100A/125A
Model Number :
UKP-32/4P
Brand Name :
OEM
Terminal Type :
Screw Terminal
Price :
$6.25 / piece
MOQ :
10 pieces
Place of Origin :
Zhejiang, China
Mechanical Life :
100000
Whether The Smart :
No
Function :
Circuit Control
Type :
Main Switch
Max. Voltage :
440V
Material :
Plastic, Metal, Copper, Silver, ABS+Brass+silver contact
Number Of Poles :
3P/4P
Transform angle :
90°
IP level :
IP65
Application :
Instrument, Industrial Control, Electric Equipment, Circuit Control, Power cut-off switch
Product Name :
Rotary Isolator Switch
Rotation Range :
90°
Description

32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase

32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase

LW30 series Rotary Isolator Switch

Product Description

SHT series and SHP Series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”

Product Description:

  1. SHT series and SHP Series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
  2. SHT series and SHP Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
  3. SHT series and SHP Series Rotary Isolator switch have six current ratings: 16A,20A,25A,32A,40A,63A,100A
  4. SHT series and SHP Series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
  5. SHT series and SHP Series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.

General Features:

  1. Wide range of function for switching, it has 16A,20A,25A,32A,40A,63A,100A
  2. Capability for switching of resistive, or inductive, or mixed loads.
  3. The most economical way for switching electrical loads.
  4. Made of the best materials with high mechanical, electrical and thermal resistance.
  5. Double-break bimetallic contacts made of silver alloy and Copper
  6. 20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).


Advantage:

  1. SHT series and SHP Series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
  2. SHT series and SHP Series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…


Technical parameters:

32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase

Dimensions and installation dimensions:

32A 4-Pole Rotary Load Disconnector Switch IP65 Waterproof Metal and Plastic Rotary Isolator Switch for AC 3-Phase

Normal working conditions:

  1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
  2. Working height: ≤2,000m
  3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.
Main switch Control switch

2. Classified by Usages
AC-23A AC-3

  1. Classified by Protection level

Without Water-proof box:IP2L0 With Water-proof box:IP65

Item Current(A) Number of Poles
UKP-16/20 16A/20A 3P/4P
UKP-25 25A 3P/4P
UKP-32 32A 3P/4P
UKP-40 40A 3P/4P
UKP-63 63A 3P/4P
UKP-80 80A 3P/4P
UKP-100 100A 3P/4P
