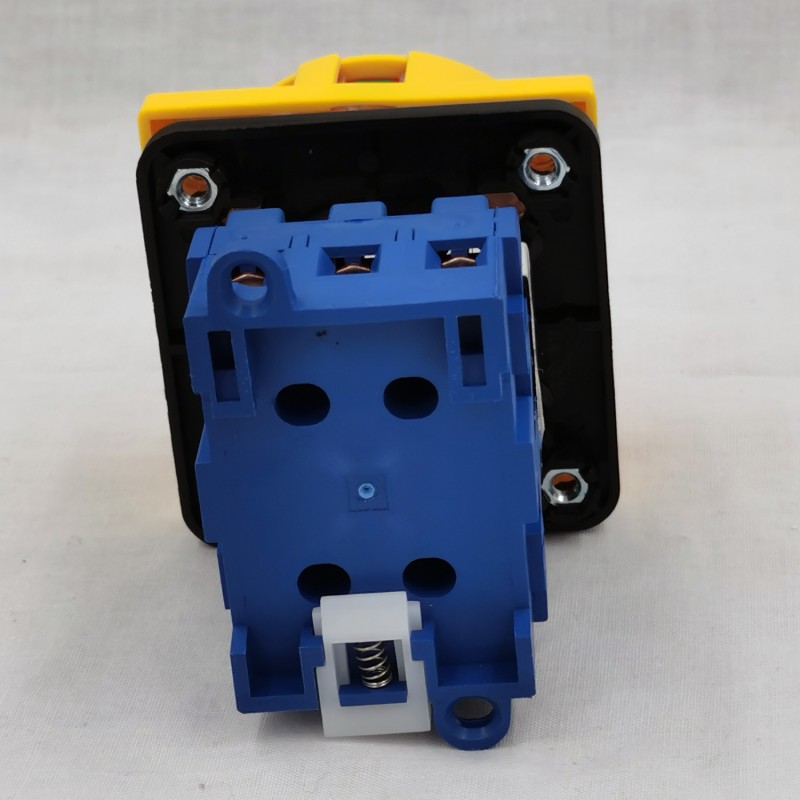

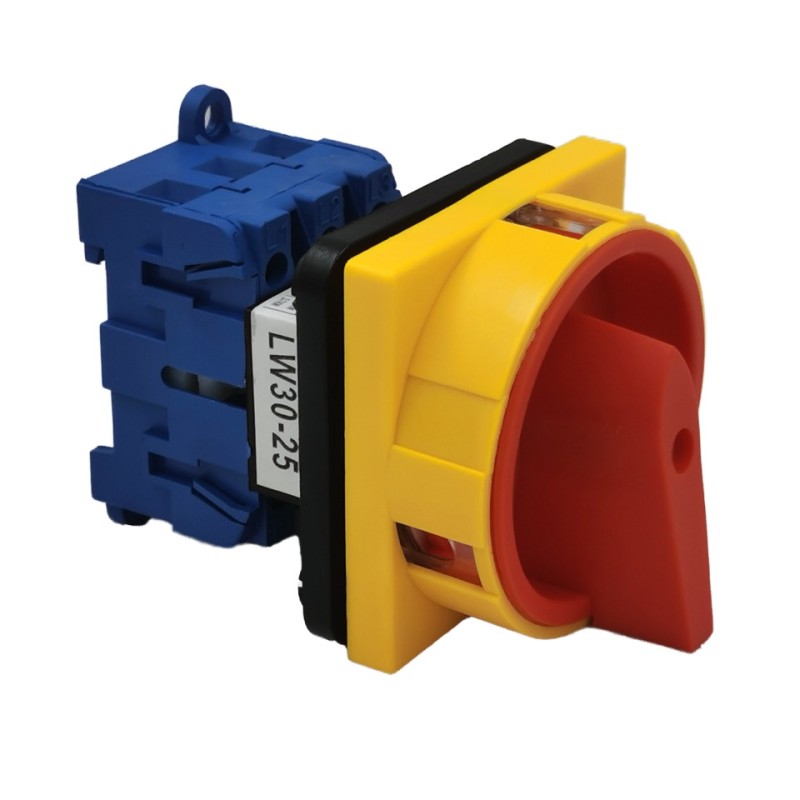

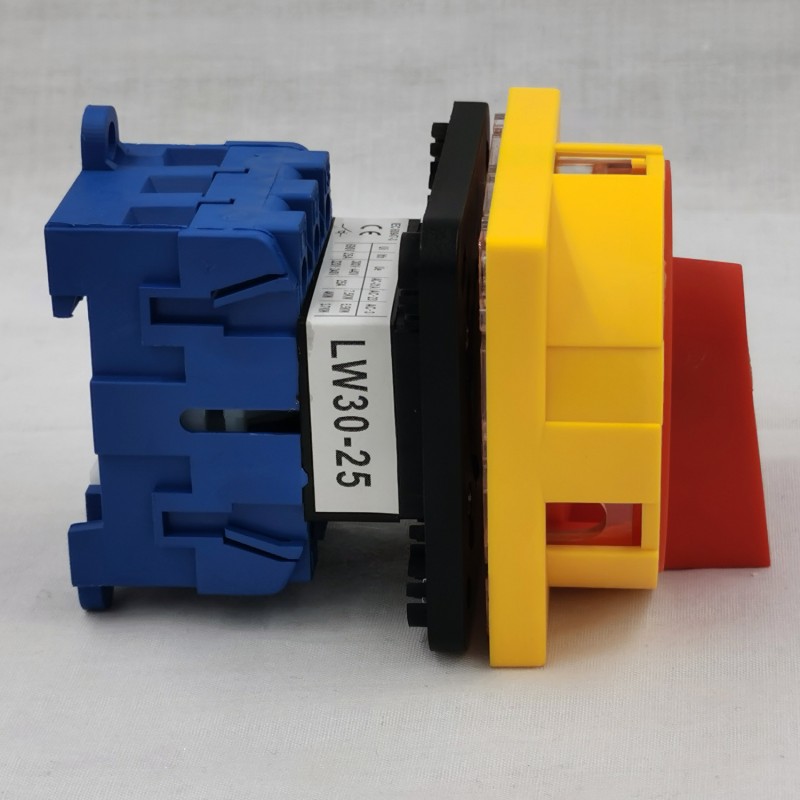

LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch
Specifications
Price :
$3.90 / piece
Product Name :
Isolator Switch
Place of Origin :
Zhejiang, China
Rotation Range :
90°
Type :
Main Switch
Mechanical Life :
0.1*10^6
Function :
Circuit Control
Model Number :
LW30-25/3
Application :
Electric Equipment, Industrial Control, Circuit Control, Control Switch
Rated Current :
20A/25A/32A/40A/63A/80A/100A
Number Of Poles :
3
Terminal Type :
Screw Terminal
MOQ :
1 piece
Brand Name :
MEH
Material :
Metal, Copper, Silver, ABS+Brass+silver contact
Transform angle :
90°
Position :
on-off Positions
Max. Current :
25A
Max. Voltage :
440V
IP level :
IP53
Whether The Smart :
No
Certification :
CE,TUV
Description

LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch

LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch

LW30 series Rotary Isolator Switch

Product Description

LW30 series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”

Product Description:

  1. LW30 series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
  2. LW30 Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
  3. LW30 series Rotary Isolator switch have six current ratings: 20A,25A,32A,40A,63A,80A,100A
  4. LW30 series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
  5. LW30 series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.

General Features:

  1. Wide range of function for switching, it has 20A,25A,32A,40A,63A,80A,100A
  2. Capability for switching of resistive, or inductive, or mixed loads.
  3. The most economical way for switching electrical loads.
  4. Made of the best materials with high mechanical, electrical and thermal resistance.
  5. Double-break bimetallic contacts made of silver alloy and Copper
  6. 20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).


Advantage:

  1. LW30 series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
  2. LW30 series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…


Technical parameters:

Description LW30-25(20) LW30-32 LW30-40 LW30-63 LW30-80
Rated thermal current ITH A 25(20) 32 40 63 80
Rated working voltage LE V 240 440 240 440 240 440 240 440 240 440
Ie/Pe Ie/Pe
AC-21A A/KW 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- 80/- 80/-
AC-22A A/KW 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- 80/- 80/-
AC-23A A/KW 15/4 15/7.5 22/5.5 22/11 30/7.5 30/15 43/11 43/22 57/18.5 57/30
AC-3 A/KW 11.7/3 11.7/5.5 15/4 15/7.5 22/7.5 22/11 36/11 36/18.5 43/15 57/30


Dimensions and installation dimensions:

LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch

Description Dimensions(mm) Installation(mm)
A B C K L E F D1 D2
LW30-20 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-25 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-32 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-40 64 50 64 16 67 48 48 Φ10 Φ4.2
LW30-63 64 50 64 16 67 48 48 Φ10 Φ4.2
LW30-80 64 70 80 22.5 82 48 48 Φ10 Φ4.2
LW30-100 64 70 80 22.5 82 48 48 Φ10 Φ4.2

LW30 Series 25A AC Rotary Isolator Disconnect Switch 3-Pole Main AC Isolator with Din Rail Mounting IP65 Cam Switch

Description
Dimensions(mm)
Installation(mm)
A B C L H E F D2
LW30-20
 45 42 54 50
26
 22 60
Φ4.2
LW30-25
 45 42 54 50
26
 22 60
Φ4.2
LW30-32
 45 42 54 50
26
 22 60
Φ4.2

Normal working conditions:

  1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
  2. Working height: ≤2,000m
  3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.
Main switch Control switch

2. Classified by Usages
AC-23A AC-3

  1. Classified by Protection level

Without Water-proof box:IP2L0 With Water-proof box:IP65
