Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC
Specifications
Type :
Load-Break Switches, Main Switch
Brand Name :
OEM
Material :
Plastic, Copper, ABS+Brass+silver contact
Function :
Circuit Control
Application :
Control Switch
Number Of Poles :
3
Certification :
CE,TUV
Price :
$7.55 / piece
Place of Origin :
Zhejiang, China
Rated Voltage :
600 V, 400 V
Waterproof :
Included
MOQ :
1000 pieces
Number of Pole :
3
Product Name :
Isolator Switch
Transform angle :
90°
Model Number :
LW30-63/3P
Rated Current :
63A, 63A
Description

Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC

Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC

LW30 series Rotary Isolator Switch

Product Description

LW30 series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”

Product Description:

  1. LW30 series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
  2. LW30 Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
  3. LW30 series Rotary Isolator switch have six current ratings: 20A,25A,32A,40A,63A,80A,100A
  4. LW30 series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
  5. LW30 series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.

General Features:

  1. Wide range of function for switching, it has 20A,25A,32A,40A,63A,80A,100A
  2. Capability for switching of resistive, or inductive, or mixed loads.
  3. The most economical way for switching electrical loads.
  4. Made of the best materials with high mechanical, electrical and thermal resistance.
  5. Double-break bimetallic contacts made of silver alloy and Copper

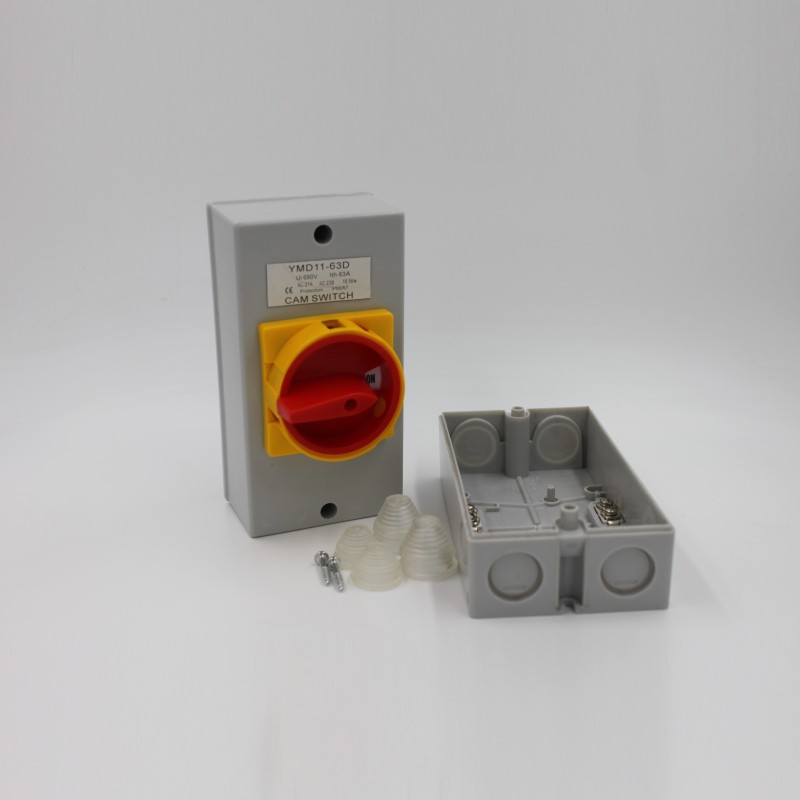

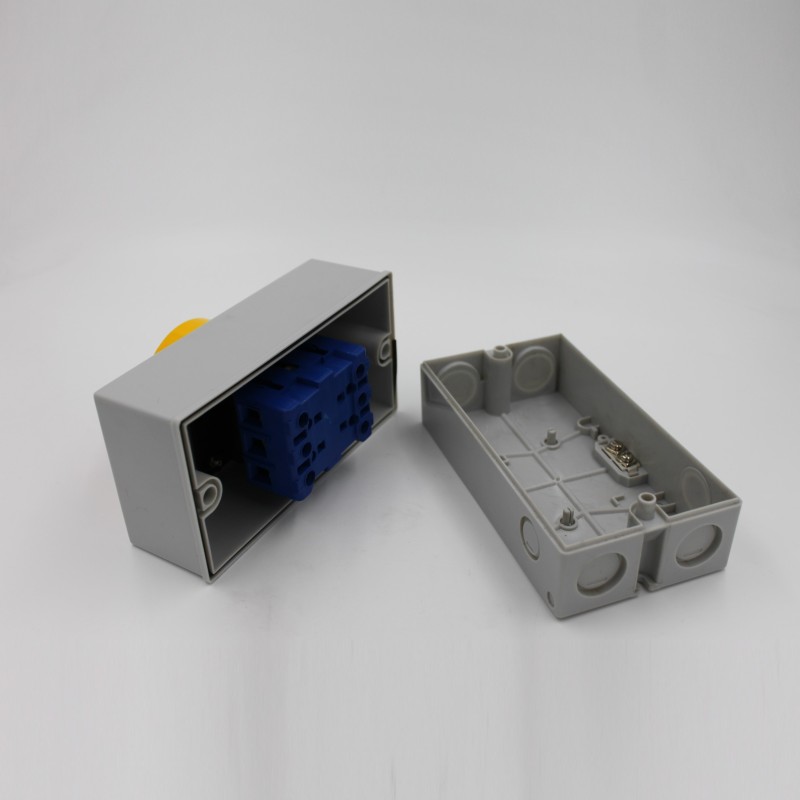

  6. 20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).


Advantage:

  1. LW30 series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
  2. LW30 series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…


Technical parameters:

Description LW30-25(20) LW30-32 LW30-40 LW30-63 LW30-80
Rated thermal current ITH A 25(20) 32 40 63 80
Rated working voltage LE V 240 440 240 440 240 440 240 440 240 440
Ie/Pe Ie/Pe
AC-21A A/KW 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- 80/- 80/-
AC-22A A/KW 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- 80/- 80/-
AC-23A A/KW 15/4 15/7.5 22/5.5 22/11 30/7.5 30/15 43/11 43/22 57/18.5 57/30
AC-3 A/KW 11.7/3 11.7/5.5 15/4 15/7.5 22/7.5 22/11 36/11 36/18.5 43/15 57/30


Dimensions and installation dimensions:

Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC

Description Dimensions(mm) Installation(mm)
A B C K L E F D1 D2
LW30-20 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-25 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-32 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-40 64 50 64 16 67 48 48 Φ10 Φ4.2
LW30-63 64 50 64 16 67 48 48 Φ10 Φ4.2
LW30-80 64 70 80 22.5 82 48 48 Φ10 Φ4.2
LW30-100 64 70 80 22.5 82 48 48 Φ10 Φ4.2

Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC

Description
Dimensions(mm)
Installation(mm)
A B C L H E F D2
LW30-20
 45 42 54 50
26
 22 60
Φ4.2
LW30-25
 45 42 54 50
26
 22 60
Φ4.2
LW30-32
 45 42 54 50
26
 22 60
Φ4.2

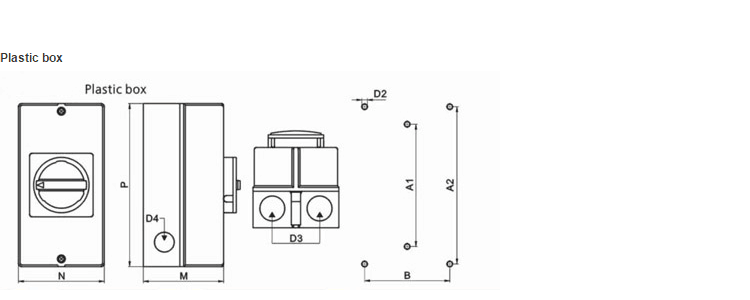

Good Price Waterproof IP65 Rotary Isolator Switch LW30-63 for 3 Phase 3Pole 4Pole 63a Disconnect Switch AC

Description
 Dimensions(mm) Installation(mm)
D3 D4 M N
P
 A1 A2 B
D2
LW30-20
 Φ23 Φ19 85 83
160
 150 -- --
Φ4.2
LW30-25
 Φ23 Φ19 85 83
160
 150 -- --
Φ4.2
LW30-32
 Φ23 Φ19 85 83
160
 150 -- --
Φ4.2
LW30-40
 Φ29 Φ23 100 95
190
 178 -- --
Φ4.2
LW30-63
 Φ29 Φ23 100 95
190
 178 -- --
Φ4.2
LW30-80
 Φ37.5 Φ23 144 105
250
 -- 229 124
Φ6.5
LW30-100
 Φ37.5 Φ23 144 105
250
 -- 229 124
Φ6.5

Normal working conditions:

  1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
  2. Working height: ≤2,000m
  3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.
Main switch Control switch

2. Classified by Usages
AC-23A AC-3

  1. Classified by Protection level

Without Water-proof box:IP2L0 With Water-proof box:IP65
