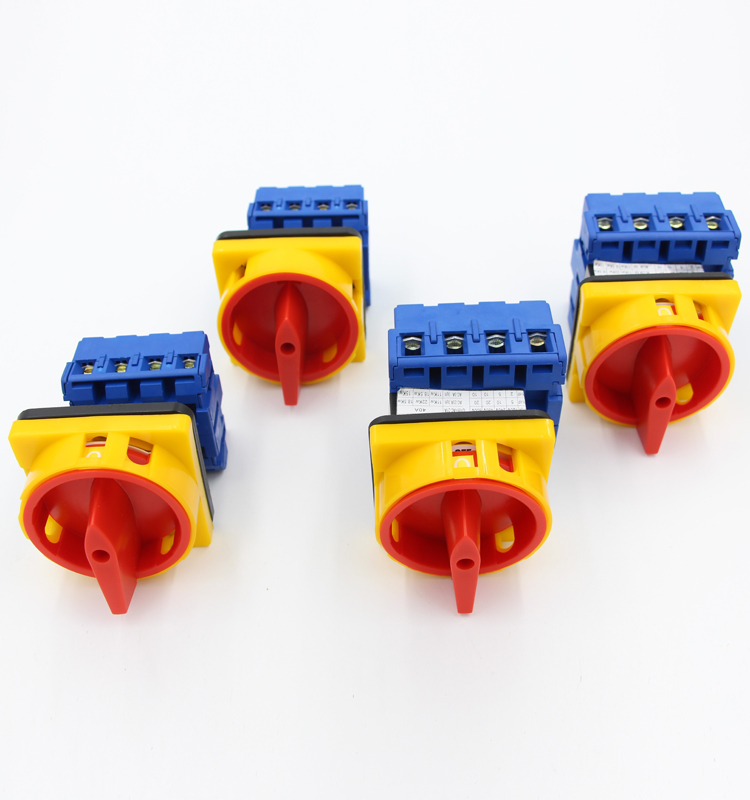

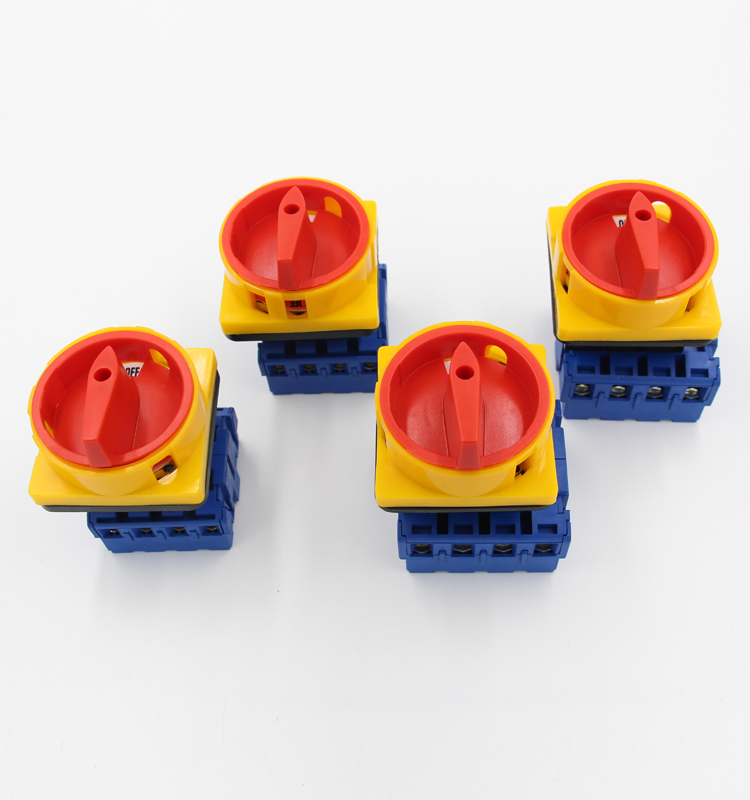

LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications
Specifications
Place of Origin :
Zhejiang, China
Price :
$7.58 / piece
Material :
Metal, ABS, Copper, ABS+Brass+silver contact
Rated Current :
20A/25A/32A/40A/63A/80A/100A
Transform angle :
90°
Max. Voltage :
440V
Function :
Circuit Control
Certification :
CE,TUV
Max. Current :
40A
Application :
Electric Industry, Control Switch
IP Level :
IP53
Type :
Main Switch
MOQ :
1000 pieces
Model Number :
LW30-40/4
Number Of Poles :
4
Whether The Smart :
No
Position :
2 Positions
Brand Name :
MEH
Product Name :
Isolator Switch
Pole :
4-Pole
Description

LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications

LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications

LW30 series Rotary Isolator Switch

Product Description

LW30 series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”

Product Description:

  1. LW30 series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
  2. LW30 Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
  3. LW30 series Rotary Isolator switch have six current ratings: 20A,25A,32A,40A,63A,80A,100A
  4. LW30 series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
  5. LW30 series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.

General Features:

  1. Wide range of function for switching, it has 20A,25A,32A,40A,63A,80A,100A
  2. Capability for switching of resistive, or inductive, or mixed loads.
  3. The most economical way for switching electrical loads.
  4. Made of the best materials with high mechanical, electrical and thermal resistance.
  5. Double-break bimetallic contacts made of silver alloy and Copper
  6. 20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).


Advantage:

  1. LW30 series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
  2. LW30 series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…


Technical parameters:

Description LW30-25(20) LW30-32 LW30-40 LW30-63 LW30-80
Rated thermal current ITH A 25(20) 32 40 63 80
Rated working voltage LE V 240 440 240 440 240 440 240 440 240 440
Ie/Pe Ie/Pe
AC-21A A/KW 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- 80/- 80/-
AC-22A A/KW 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- 80/- 80/-
AC-23A A/KW 15/4 15/7.5 22/5.5 22/11 30/7.5 30/15 43/11 43/22 57/18.5 57/30
AC-3 A/KW 11.7/3 11.7/5.5 15/4 15/7.5 22/7.5 22/11 36/11 36/18.5 43/15 57/30


Dimensions and installation dimensions:

LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications

Description Dimensions(mm) Installation(mm)
A B C K L E F D1 D2
LW30-20 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-25 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-32 64 42 54 13.5 61 48 48 Φ10 Φ4.2
LW30-40 64 50 64 16 67 48 48 Φ10 Φ4.2
LW30-63 64 50 64 16 67 48 48 Φ10 Φ4.2
LW30-80 64 70 80 22.5 82 48 48 Φ10 Φ4.2
LW30-100 64 70 80 22.5 82 48 48 Φ10 Φ4.2

LW30 Series 3-Phase 40A Isolator Switch Main Switch for Solar Applications

Description
Dimensions(mm)
Installation(mm)
A B C L H E F D2
LW30-20
 45 42 54 50
26
 22 60
Φ4.2
LW30-25
 45 42 54 50
26
 22 60
Φ4.2
LW30-32
 45 42 54 50
26
 22 60
Φ4.2

Normal working conditions:

  1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
  2. Working height: ≤2,000m
  3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.
Main switch Control switch

2. Classified by Usages
AC-23A AC-3

  1. Classified by Protection level

Without Water-proof box:IP2L0 With Water-proof box:IP65
