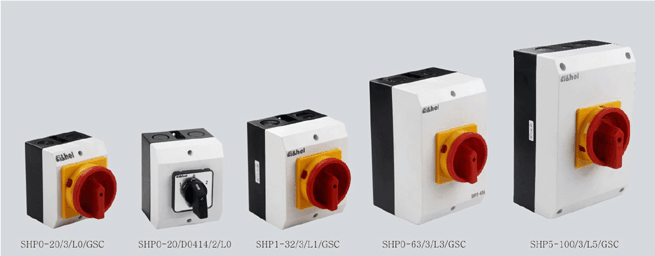

SHT series and SHP Series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”

Product Description:

1. SHT series and SHP Series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
2. SHT series and SHP Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
3. SHT series and SHP Series Rotary Isolator switch have six current ratings: 16A,20A,25A,32A,40A,63A,100A
4. SHT series and SHP Series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
5. SHT series and SHP Series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.

General Features:

1. Wide range of function for switching, it has 16A,20A,25A,32A,40A,63A,100A
2. Capability for switching of resistive, or inductive, or mixed loads.
3. The most economical way for switching electrical loads.
4. Made of the best materials with high mechanical, electrical and thermal resistance.
5. Double-break bimetallic contacts made of silver alloy and Copper

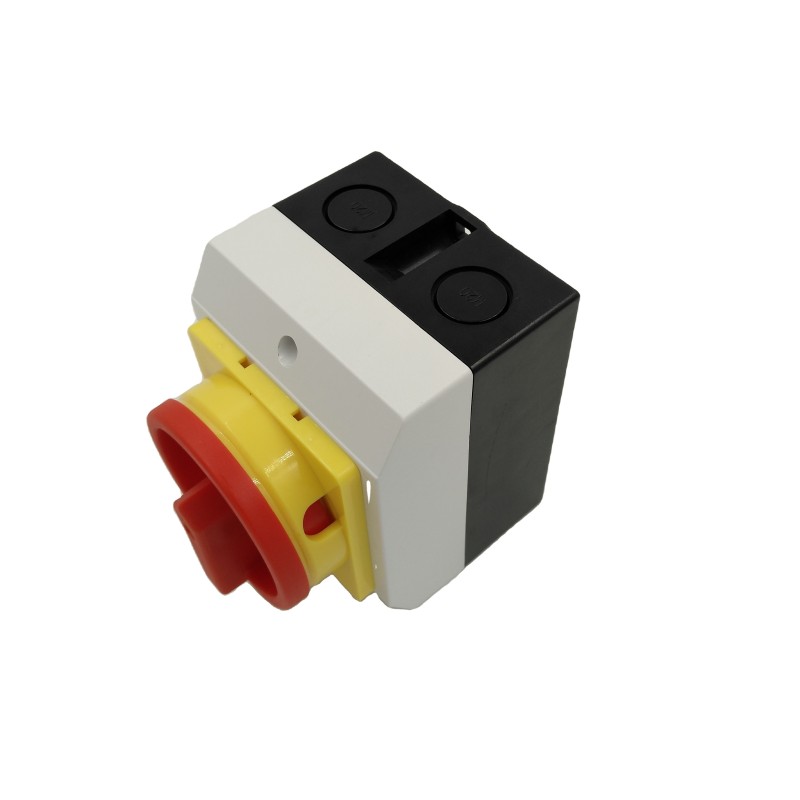

6. 20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).

Advantage:

1. SHT series and SHP Series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
2. SHT series and SHP Series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…

Technical parameters:

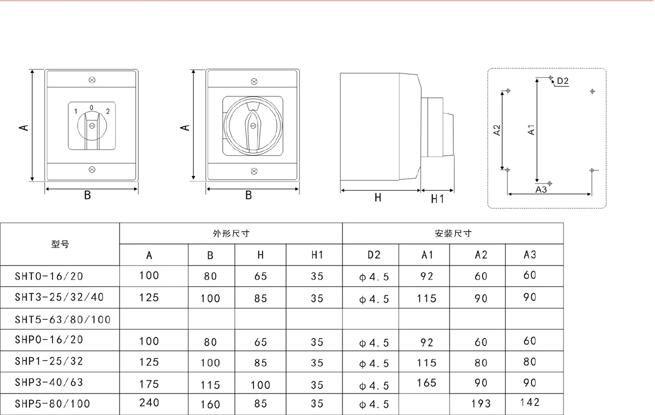

Dimensions and installation dimensions:
