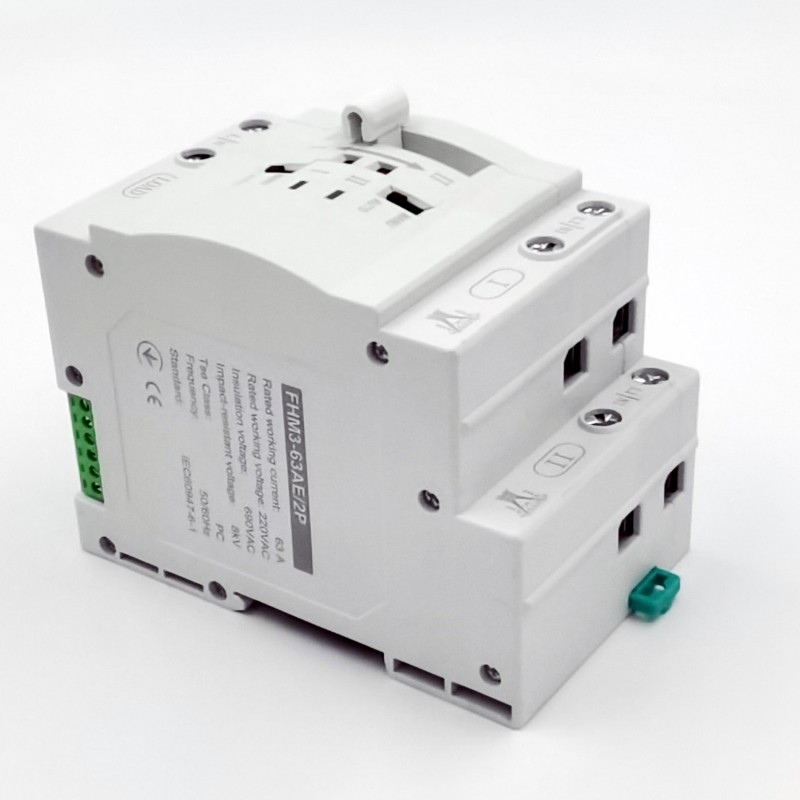

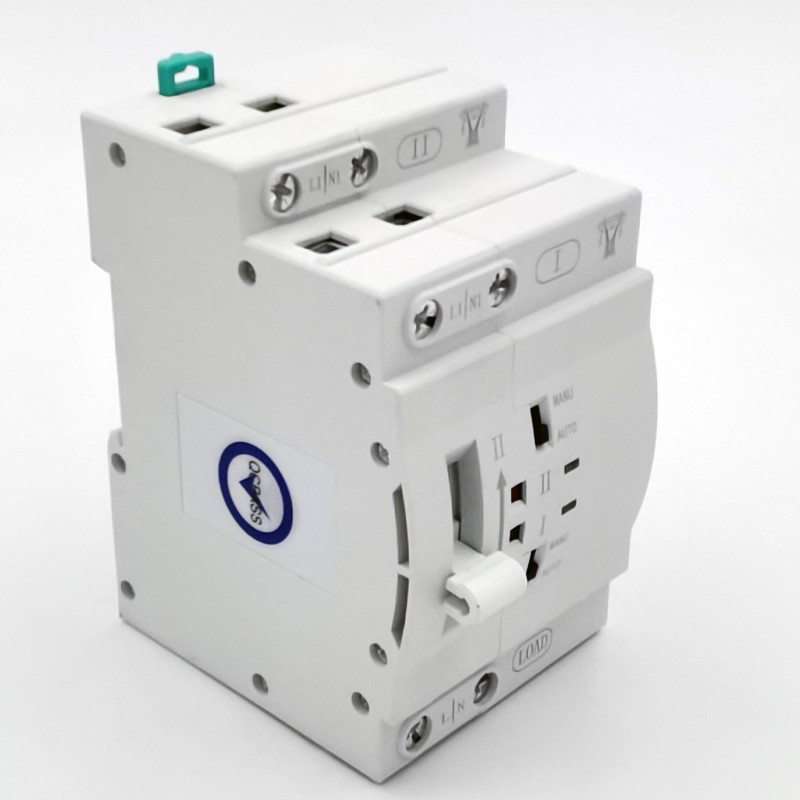

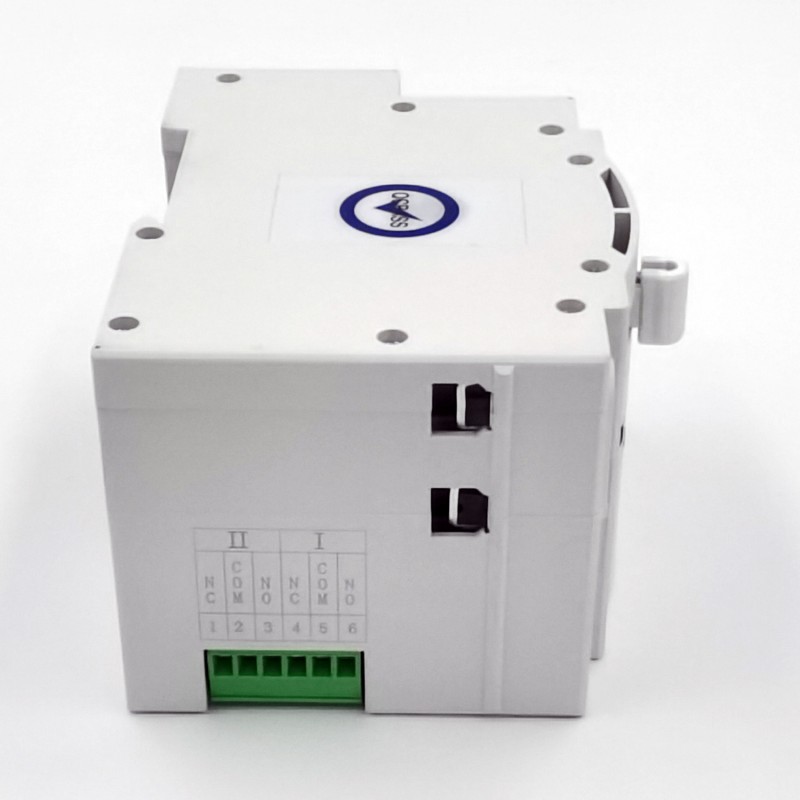

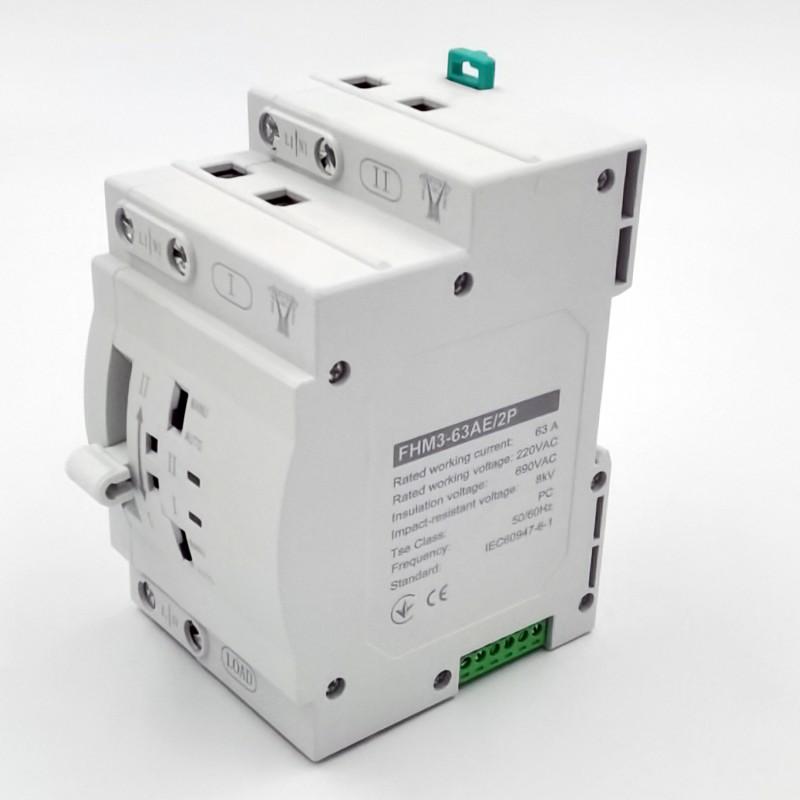

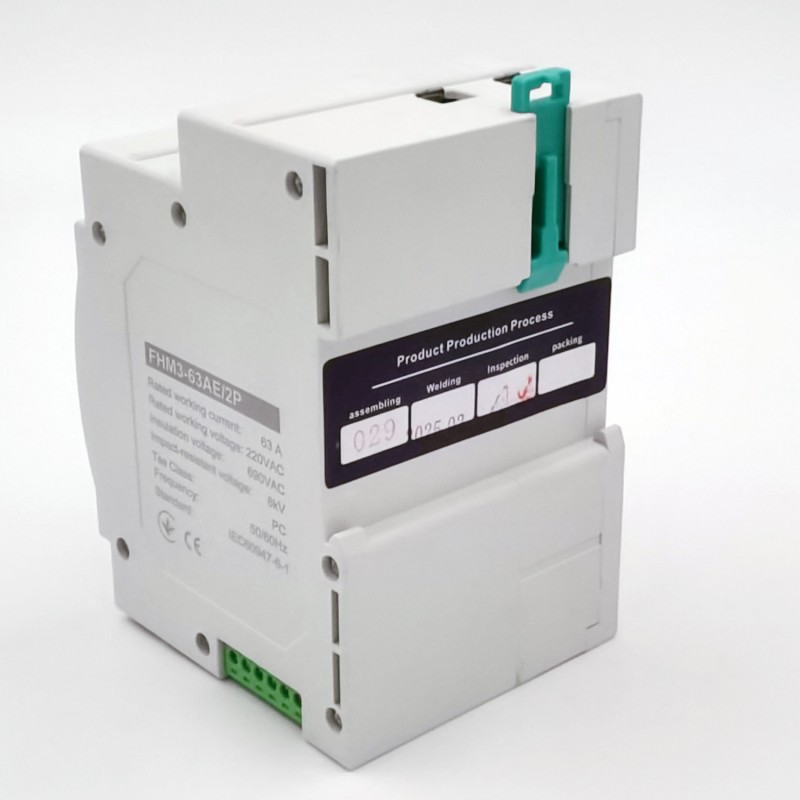

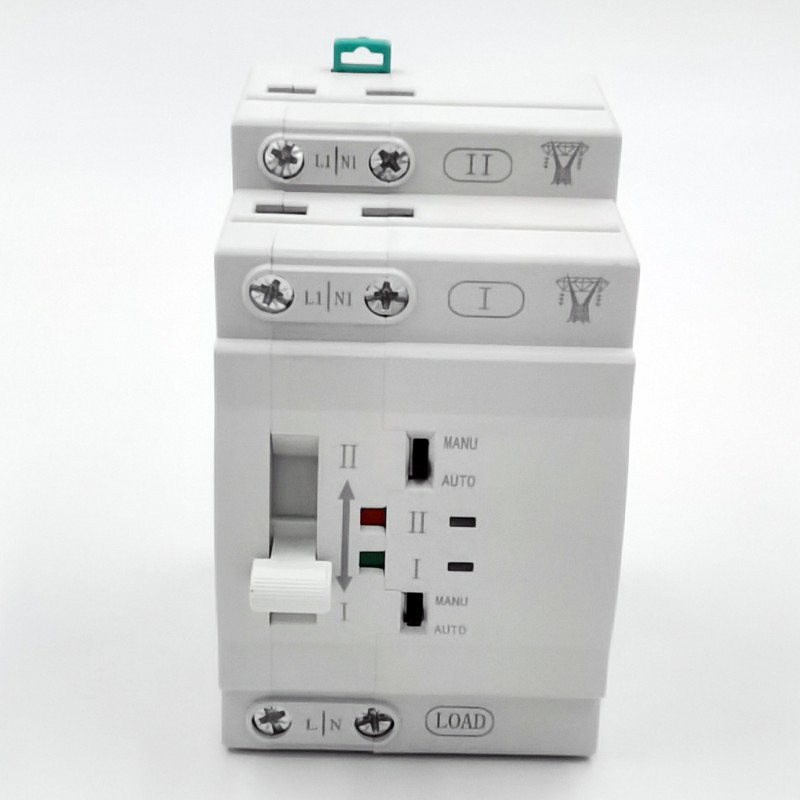

Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Specifications
Certificate :
CE
Place of Origin :
Zhejiang, China
MOQ :
200 pieces
Price :
$12-12.50 / piece
Rated Current :
63 A
Number of Pole :
2
Function :
Automatic Transfer Switch Generator ATS
Type :
PC, Double Power Source
Current :
63A
Frequency :
50Hz/60Hz
Frame Current :
63 A
Operation type :
Automatic Conversion
Brand Name :
OEM
Model Number :
MEH3-63AE/2P
Switching Time :
50ms
Product name :
Automatic Transfer Switch
Pole :
2P
Application :
Households
Phase :
Single Phase
Rated voltage :
AC220V
Description
Product Description
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
Specification
Case grade
63
Rated operating current le(A)
6A
10A
16A
20A
25A
32A
40A
50A
63A
Rated insulation voltage Ui
690V
Rated impulse withstand voltage Uimp
8kV
Rated working voltage Ue
230VAC
Rated frequency
50/60Hz
Class
PC class: can be switched on an loaded without generating short-circuit current
Pole number
2P,4P
Rated short-circuit current lq
50kA
Short circuit protection device (fuse)
RT16-00-63A
Rated impulse withstand voltage
8kV
Control circuit
Rated control voltage Us:AC220V,50Hz
Normal working conditions: 85%Us-110%Us
Auxiliary circuit
AC 220V/110V 50Hz le=5A
Contactor change-over time
<50ms
Operation change-over time
<50ms
Return change-over time
<50ms
Power off time
<50ms
Change-over operation time
<50ms
Mechanical life
≥5000 Times
Electrical life
≥1500 Times
Usage category
AC-31B
Factory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC TypeFactory Priced 63A Automatic Transfer Switch (ATS) 2P 220V for Solar Electric System PC Type
