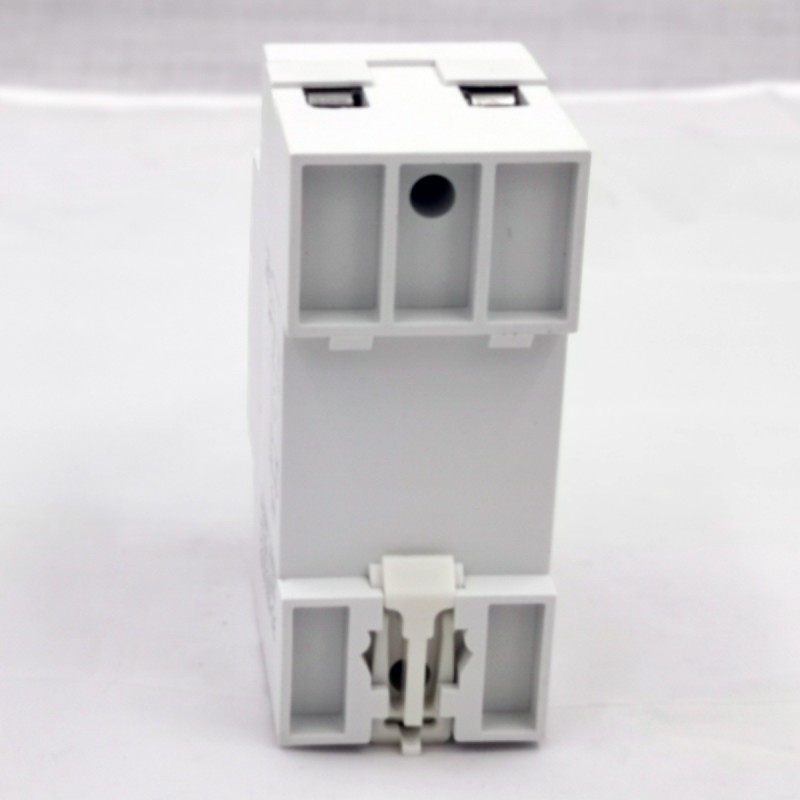

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
Specifications
Phase :
Single Phase
Display :
V+A Dual LED
Rated Current :
1A-63A Adjustable (default 40A)
Efficiency :
0.99
Usage :
Household
Rated voltage :
220V/230VAC
Time delay for recovery :
1-600S
Price :
$3.49 / piece
Current Type :
AC
Frequency :
50/60 Hz
Protection :
Overcurrent Protection, Overvoltage, Undervoltage Protection, Under/Over Voltage
Product Name :
Over and Under Voltage Protector
Place of Origin :
Zhejiang, China
Fault Reset Type :
Manual Reset
Under-Voltage Protector :
140~210V AC
MOQ :
2000 pieces
Display Type :
Led Display
Brand Name :
OEM
Over-Voltage Protector :
230~300V AC
Model Number :
MEH-VA-Protector
Type :
Relay Voltage Stabilizer, Automatic Voltage Regulator
Warranty :
1 Year
Capacity :
0.5 kVA
Material :
Copper, PC
Description

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

230V AC Single Phase Adjustable Over and Under Voltage Protector with Over Current Protection Din rail mounting dual LED display

Product Description

Functions:
1.Over-voltage protection


2.Under-voltage protection


3.Over-current protection


4.Automatic recovery


5.Voltage display(voltage measurement)


6.Current display (current measurement)


7. Voltage calibration: Voltage +-10% adjustable. A13


8. Restore factory settings: press the down button for more than 12s


9. Fault inquiry: Press the UP button from more than 12S


Product Parameters:
1.Model number:MEH-VA-Protector


2.Power supply:230VAC 50/60Hz


3.Max.Loading power:1~40A Adjustable(default:40A); 1~63A Adjustable(default:63A)


4.Over-voltage protection value range:230V~300~OFF(default:270V):


Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)


5.Under-voltage protection value range:140V--210V --OFF(default:170V):


Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)


6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A):


Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)


7.Power-on delay time:1s~600s(default:10s)


8.Power consumption : <2W


9.Electric machinery life : 100,000 times


10.Installation:35mm DIN rail

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Technical parameters:

Rated supply voltage AC 220/230V
Operation Voltage Range AC 80v~400V (1 Phase)
Rated Frequency 50/60Hz
Electric Current(>A) setting range 1~63A
Over Voltage(>U) setting range 230~300V AC
Under Voltage(<U) setting range 140~210V AC
Error 2%
>U and <U trip delay 0.5S
Reset/start delay 1s~600s
Voltage measurement accuracy 1%
Rated insulation voltage 400V
Output Contact 1NO
Protection degree IP20
Pollution degree 3
Altiude <=2000m
Operating Temperature -50°C~55°C
Humidity <=50% at 40°C
Storage Temperature -30°C~70°C

Default Setting:

Technical parameter Setting range Step Factory setting
Over Voltage trip value 230~300V 1V 280V
Under Voltage trip value 140~210V 1V 160V
Over Current trip value 1~63A 1A 20A
Reset/start delay 1s~600s 1s 5s

Current Specification 15A 25A 32A 50A 63A
Rated operating current(ln,A) 15 25 32 50 63
Maximum operating current lmax(A,Within 10 Min) 25 30 40 60 80
Max.power of load((KW) 3.6 5.5 7 11 13.9

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Dimensions and installation dimensions:

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Application Scenarios:

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safetySingle Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Related Products shown:

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safetySingle Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safetySingle Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Certifications

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Packaging & Shipping

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Our Services

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

Company Information

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety

FAQ

Single Phase 230V AC 63A Din Rail Adjustable Voltage&Current Protector Dual LED Display for home appliance safety
