Specifications
Phase :
Single Phase
Display :
LED
Brand Name :
OEM
Model Number :
MEH-VA-Protector
Under-Voltage Protector :
140~210V AC
Certificate :
CE / ISO9001
Place of Origin :
Zhejiang, China
Current Type :
AC
Rated voltage :
220V/230VAC
Warranty :
1 Year
Usage :
SVC
Time delay for recovery :
1-600S
Product Name :
Over and Under Voltage Protector
Protection :
Under/Over Voltage
MOQ :
500 pieces
Price :
$2.95 / piece
Rated Current :
1A-63A Adjustable (default 40A)
Over-Voltage Protector :
230~300V AC
Description

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

230V AC Single Phase Adjustable Over and Under Voltage Protector with Over Current Protection Din rail mounting dual LED display

Product Description

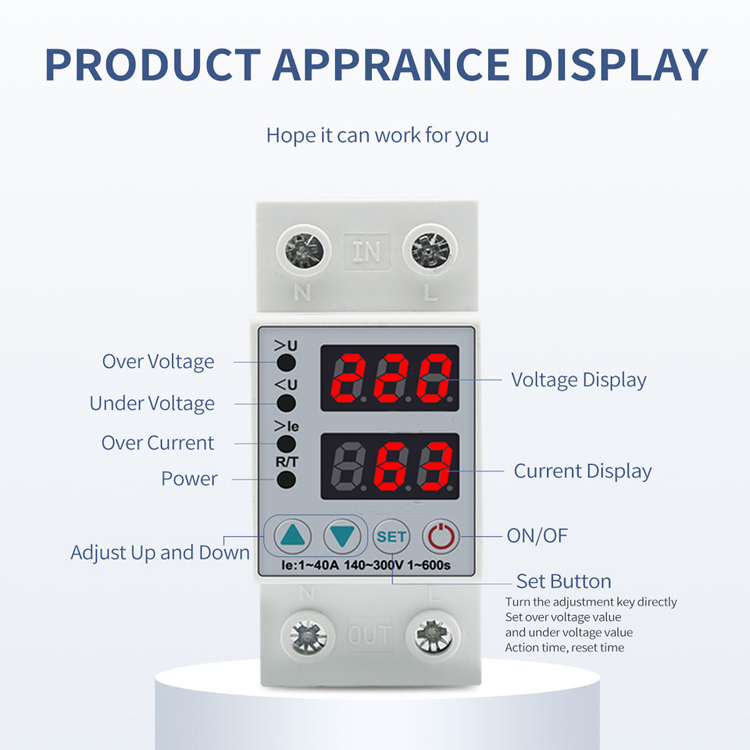

Functions:
1.Over-voltage protection


2.Under-voltage protection


3.Over-current protection


4.Automatic recovery

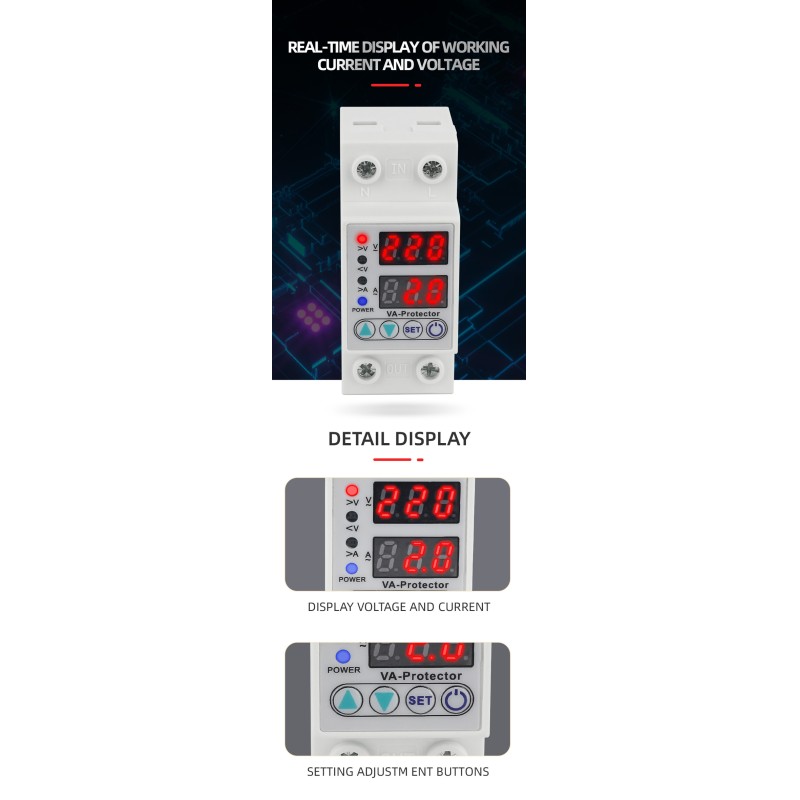

5.Voltage display(voltage measurement)


6.Current display (current measurement)


7. Voltage calibration: Voltage +-10% adjustable. A13


8. Restore factory settings: press the down button for more than 12s


9. Fault inquiry: Press the UP button from more than 12S


Product Parameters:
1.Model number:MEH-VA-Protector


2.Power supply:230VAC 50/60Hz


3.Max.Loading power:1~40A Adjustable(default:40A); 1~63A Adjustable(default:63A)


4.Over-voltage protection value range:230V~300~OFF(default:270V):


Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)


5.Under-voltage protection value range:140V--210V --OFF(default:170V):


Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)


6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A):


Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)


7.Power-on delay time:1s~600s(default:10s)


8.Power consumption : <2W


9.Electric machinery life : 100,000 times

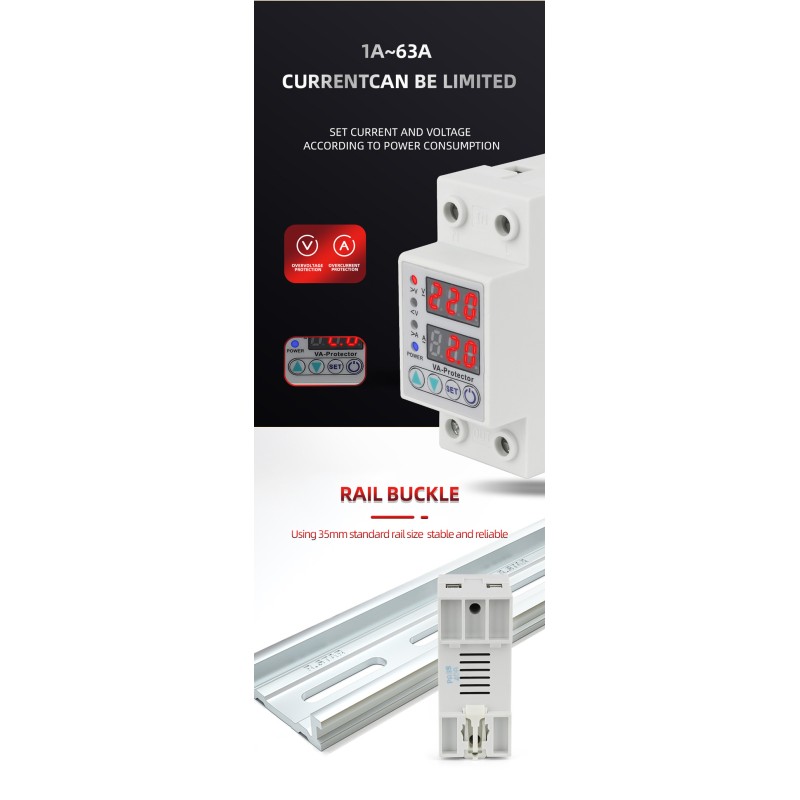

10.Installation:35mm DIN rail

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Single Din Rail 63A 40A Dual LED Display Voltage Protector Adjustable Over Under Voltage Protective Relay for Single Phase

Technical parameters:

Rated supply voltage AC 220/230V
Operation Voltage Range AC 80v~400V (1 Phase)
Rated Frequency 50/60Hz
Electric Current(>A) setting range 1~63A
Over Voltage(>U) setting range 230~300V AC
Under Voltage(<U) setting range 140~210V AC
Error 2%
>U and <U trip delay 0.5S
Reset/start delay 1s~600s
Voltage measurement accuracy 1%
Rated insulation voltage 400V
Output Contact 1NO
Protection degree IP20
Pollution degree 3
Altiude <=2000m
Operating Temperature -50°C~55°C
Humidity <=50% at 40°C
Storage Temperature -30°C~70°C

Default Setting:

Technical parameter Setting range Step Factory setting
Over Voltage trip value 230~300V 1V 280V
Under Voltage trip value 140~210V 1V 160V
Over Current trip value 1~63A 1A 20A
Reset/start delay 1s~600s 1s 5s

Current Specification 15A 25A 32A 50A 63A
Rated operating current(ln,A) 15 25 32 50 63
Maximum operating current lmax(A,Within 10 Min) 25 30 40 60 80
Max.power of load((KW) 3.6 5.5 7 11 13.9
