Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector
Specifications
Product name :
Automatic Transfer Switch
Application :
Industrial Power
MOQ :
50 pieces
Rated voltage :
AC 3*220V(N-L1/L2/L3)
Breaking Capacity :
20 kA
Frame Current :
63 A, 100A
Number of Pole :
3
Type :
PC
Place of Origin :
Zhejiang, China
Return delay to priority phase :
1-600s
Max. Current :
80A/100A
Auto-reclosing delay(Ton) :
1-600s
Phase :
Three Phase
Rated Current :
100A
Voltage accuracy :
<1%
Umax setting range :
230-300V
Price :
$11.65 / piece
Max.Operating phase voltage :
350V
Operation type :
Automatic Conversion
Umin setting range :
140-210V
Description
Product Description

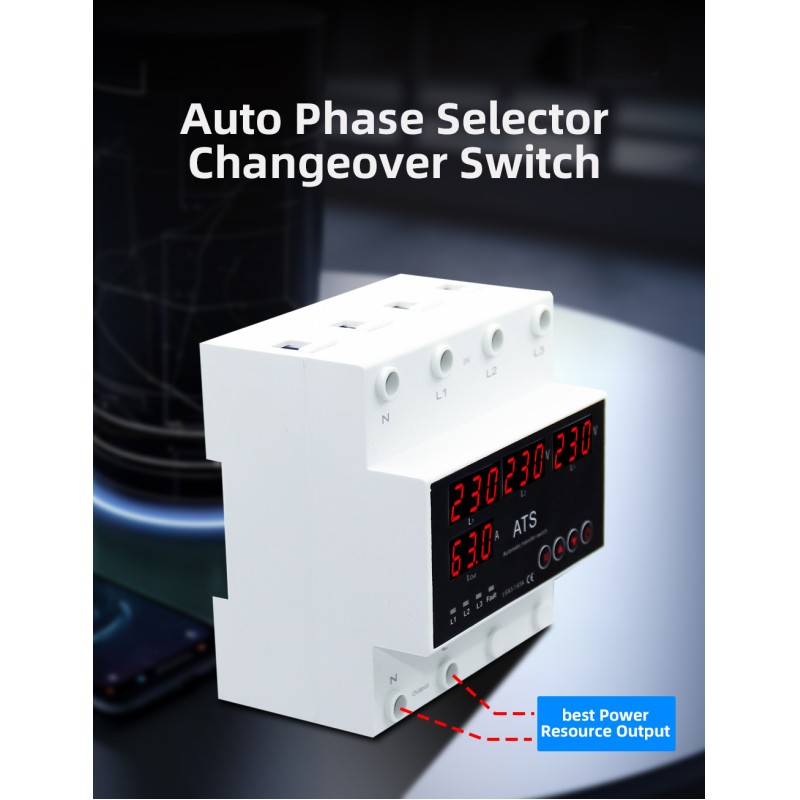

Intelligent Automatic Transfer Switch is designed to supply an single phase 220V load from different power supply, in order to maintain uninterrupted power supply of essential single phase load. According to voltage presence &voltage quality on phases, it will automatically select the optimum power supply and switch the single phase load supply to it.


1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection

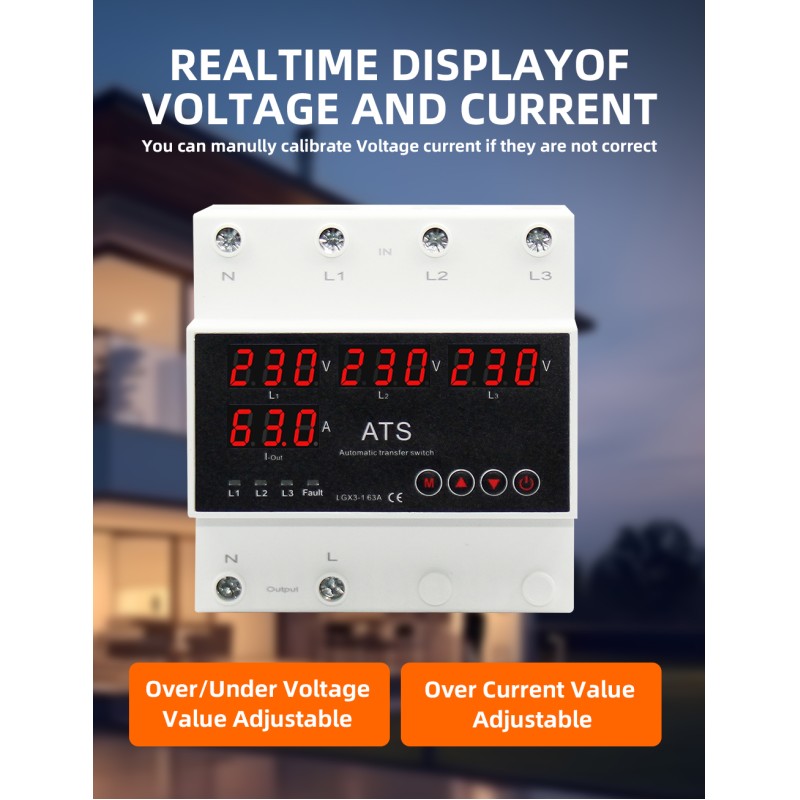

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-9.5% adjustable.
8. Current calibration: Current +- 9.5% adjustable

Main Function:

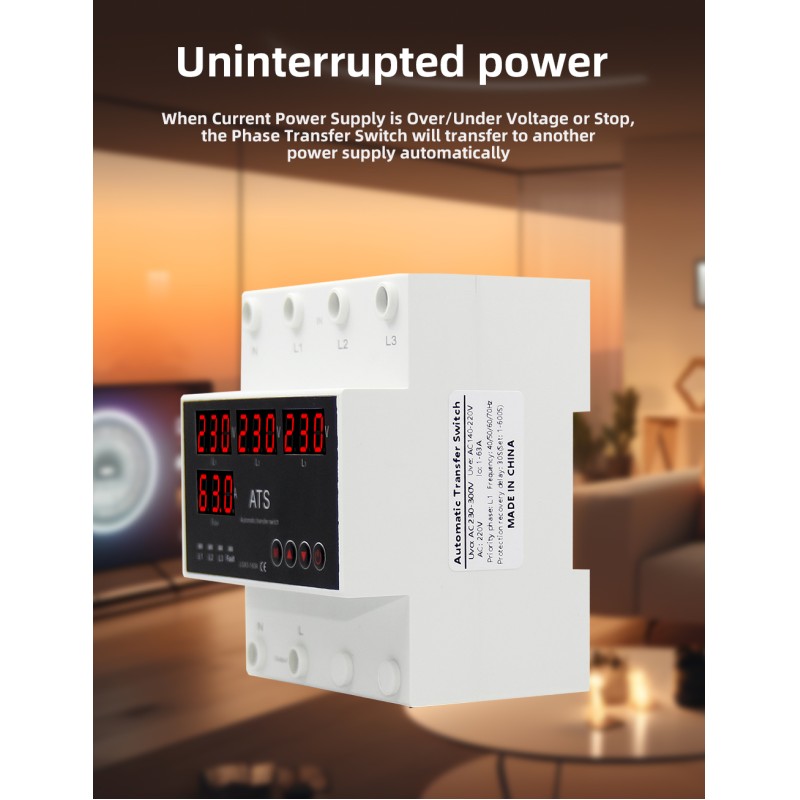

When Current Power Supply is Over/Under Voltage or Stop, the Phase Transfer Switch will transfer to another power supply automatically.It can cut off the power supply instantaneously when the line has over current faulty, so as to protect the electrical equipment from being damaged.

Advantage:

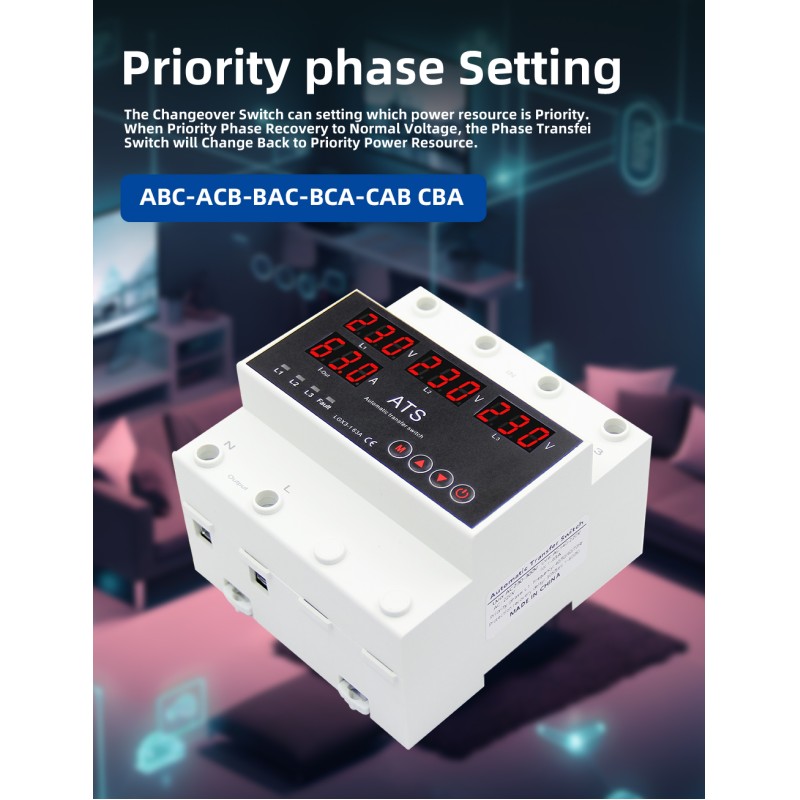

The Changeover Switch can setting which power resource is Priority.

When Priority Phase Recovery to Normal Voltage, the Phase Transfer Switch will Change Back to Priority Power Resource.

A-B-C, A-C-B, B-A-C, B-A-C, C-A-B, C-B-A

EXCLUSIVE DESIGN 63A 100Atriple power triple lines electronic type automatic changeover switch with over-under-voltage protection..

Automatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase SelectorAutomatic Transfer Switch (ATS) PC 63A/100A Three Phase Uninterrupted Power Stabilizer Voltage Protector Phase Selector

Specification:

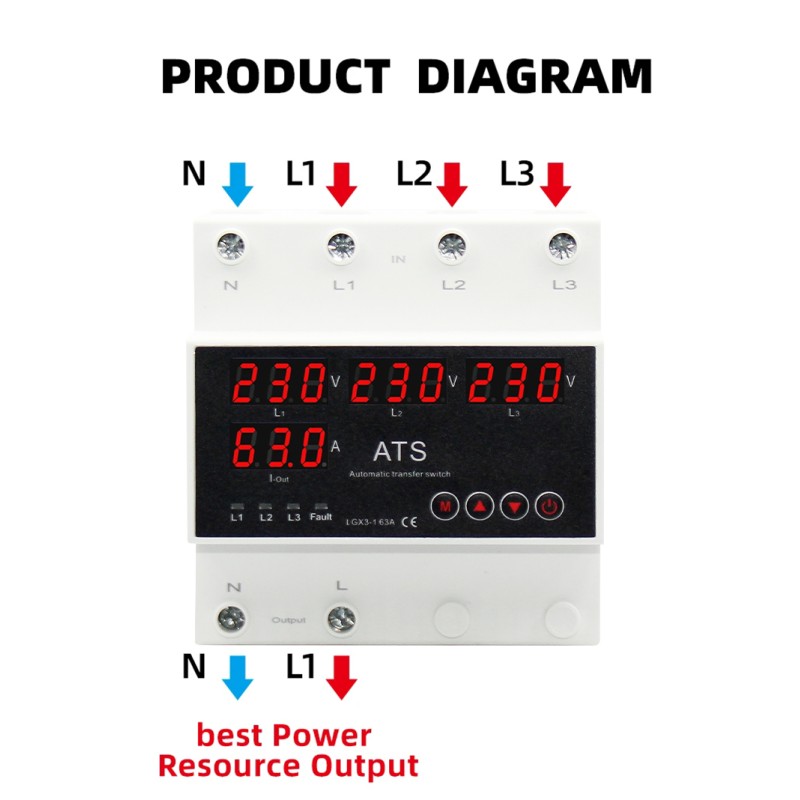

Supply terminals

N,L1,L2,L3

Rated supply voltage

AC 3 * 220V(N-L1/L2/L3)

Rated frequency

40/50/60/70Hz

Umax setting range

230-300V

Umin setting range

140-210V

Auto-reclosing delay(Ton)

1-600s

Return delay to priority phase

1-600s

Switch delay to reserve phases

<0.2s

Voltage hysteresis

5V

Overvoltage trip delay

0.1s; ≥350V: 0.02s

Undervoltage trip delay

0.1s; ≥350V: 0.02s

Voltage accuracy

<1%

Max. operating phase voltage

350V

Rated operating current

63A/80A/100A

Max. operating current

80A/90A/100A

Pollution degree

3

Electrical life

105

Mechanical life

105

Altitude

≤2000m

Ambient temperature

-25℃~+50℃

Permissable relative humidity

≤50% at 40℃(without condensation)

Storage temperature

-25℃~+55℃

Conductor size

0. 5mm2~1mm2
