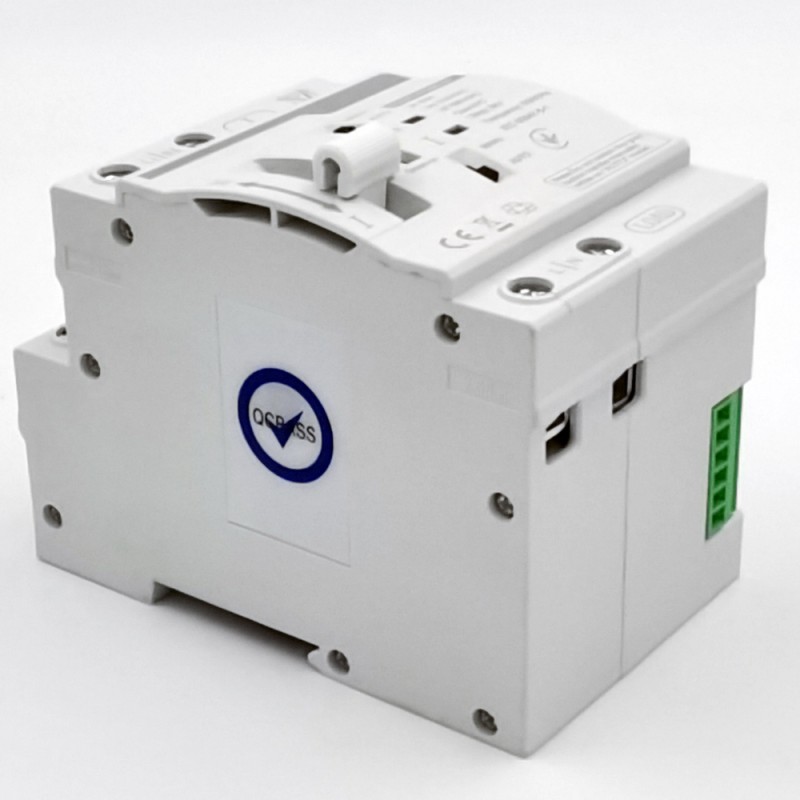

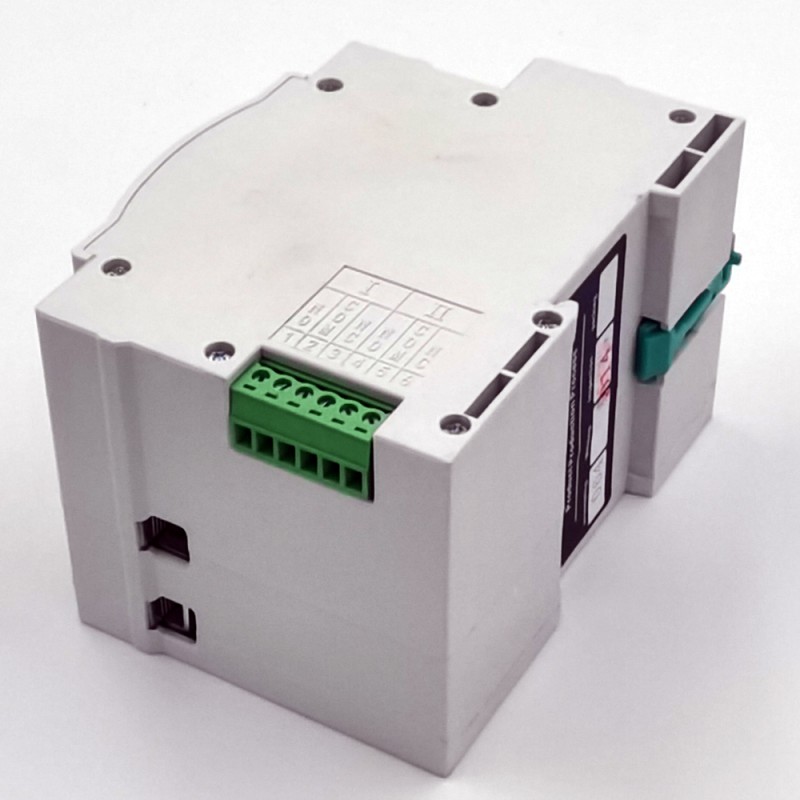

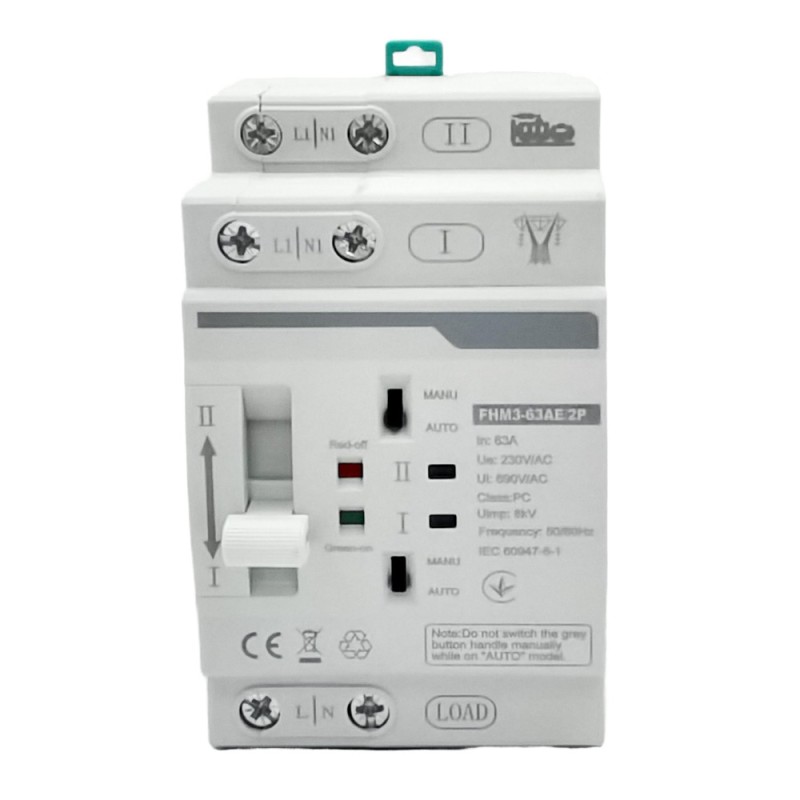

Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Specifications
Type :
PC, Double Power Source
Pole :
2P
Application :
Households
MOQ :
5
Number of Pole :
2
Frame Current :
63 A
Product name :
Automatic Transfer Switch
Switching Time :
50ms
Phase :
Single Phase
Price :
€11.03
Current :
63A
Place of Origin :
Zhejiang, China
Operation type :
Automatic Conversion
Rated voltage :
AC230V
Model Number :
MEH3-63AE/2P
Brand Name :
OEM
Function :
Automatic Transfer Switch Generator ATS
Frequency :
50Hz/60Hz
Description
Product Description
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
Specification
Case grade
63
Rated operating current le(A)
6A
10A
16A
20A
25A
32A
40A
50A
63A
Rated insulation voltage Ui
690V
Rated impulse withstand voltage Uimp
8kV
Rated working voltage Ue
230VAC
Rated frequency
50/60Hz
Class
PC class: can be switched on an loaded without generating short-circuit current
Pole number
2P,4P
Rated short-circuit current lq
50kA
Short circuit protection device (fuse)
RT16-00-63A
Rated impulse withstand voltage
8kV
Control circuit
Rated control voltage Us:AC220V,50Hz
Normal working conditions: 85%Us-110%Us
Auxiliary circuit
AC 220V/110V 50Hz le=5A
Contactor change-over time
<50ms
Operation change-over time
<50ms
Return change-over time
<50ms
Power off time
<50ms
Change-over operation time
<50ms
Mechanical life
≥5000 Times
Electrical life
≥1500 Times
Usage category
AC-31B
Double Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2PDouble Power Source 2P 230V Single Phase 50Hz/60Hz 50ms Automatic Transfer Switching Generator 63A PC Model MEH3-63AE/2P
