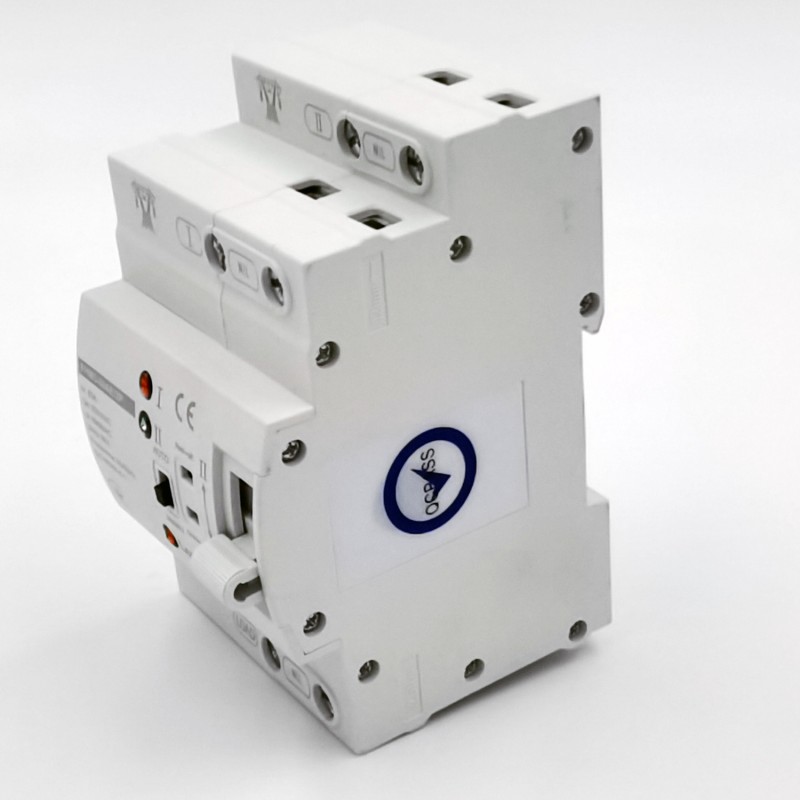

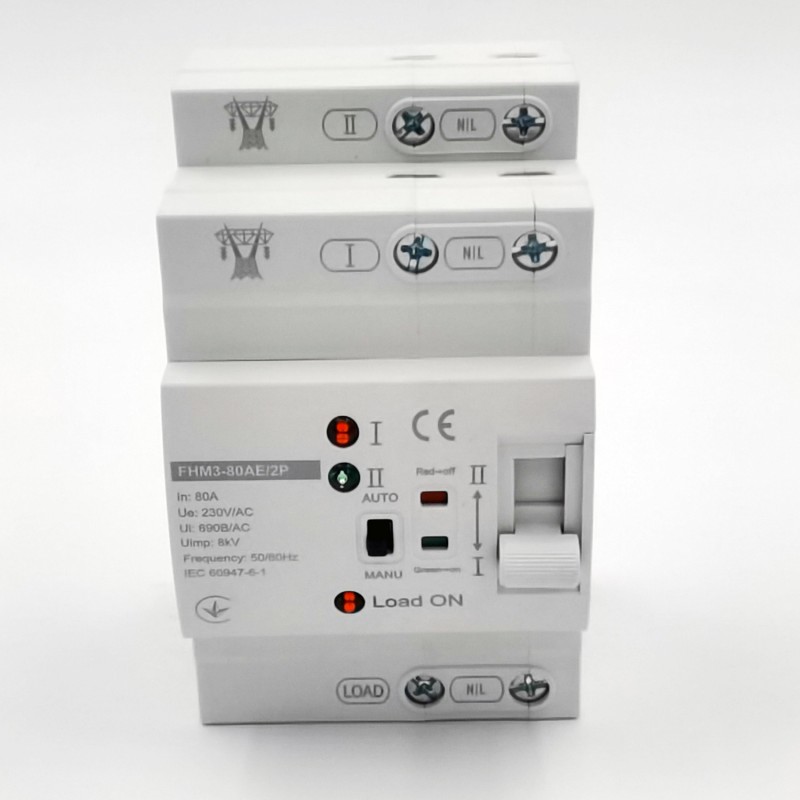

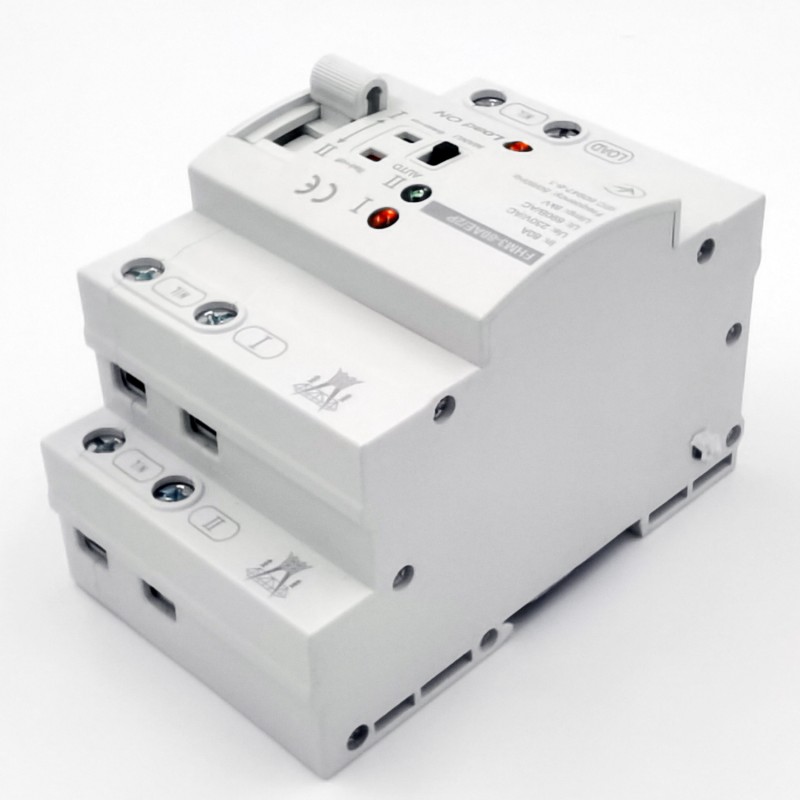

Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Automatic 2P 80A AC220V Dual Power Transfer Switch Gear Home Device ATS Dual Power Changeover 2P Automatic Electric Home Device
Specifications
Rate Current :
80A
Phase :
Single Phase
Type :
PC, Double Power Source
Operation type :
Automatic Conversion
Certificate :
CE
Product name :
Automatic Transfer Switch
MOQ :
200 pieces
Number of Pole :
2
Frequency :
50Hz/60Hz
Rated voltage :
AC220V
Switching Time :
50ms
Function :
Automatic Transfer Switch Generator ATS
Brand Name :
OEM
Price :
$12-12.50 / piece
Model Number :
MEH3-80AE/2P
Frame Current :
63 A
Pole :
2P
Application :
Households, Industrial Power
Place of Origin :
Zhejiang, China
Description
Specification
Case grade 80
Rated operating current le(A) 10A 16A 20A 25A 32A 40A 50A 63A 80A
Rated insulation voltage Ui 690V
Rated impulse withstand voltage Uimp 8kV
Rated working voltage Ue 230VAC
Rated frequency 50/60Hz
Class PC class: can be switched on an loaded without generating short-circuit current
Pole number 2P,4P
Rated short-circuit current lq 50kA
Short circuit protection device (fuse) RT16-00-63A
Rated impulse withstand voltage 8kV
Control circuit Rated control voltage Us:AC220V,50Hz
Normal working conditions: 85%Us-110%Us
Auxiliary circuit AC 220V/110V 50Hz le=5A
Contactor change-over time <50ms
Operation change-over time <50ms
Return change-over time <50ms
Power off time <50ms
Change-over operation time <50ms
Mechanical life ≥5000 Times
Electrical life ≥1500 Times
Usage category AC-31B
