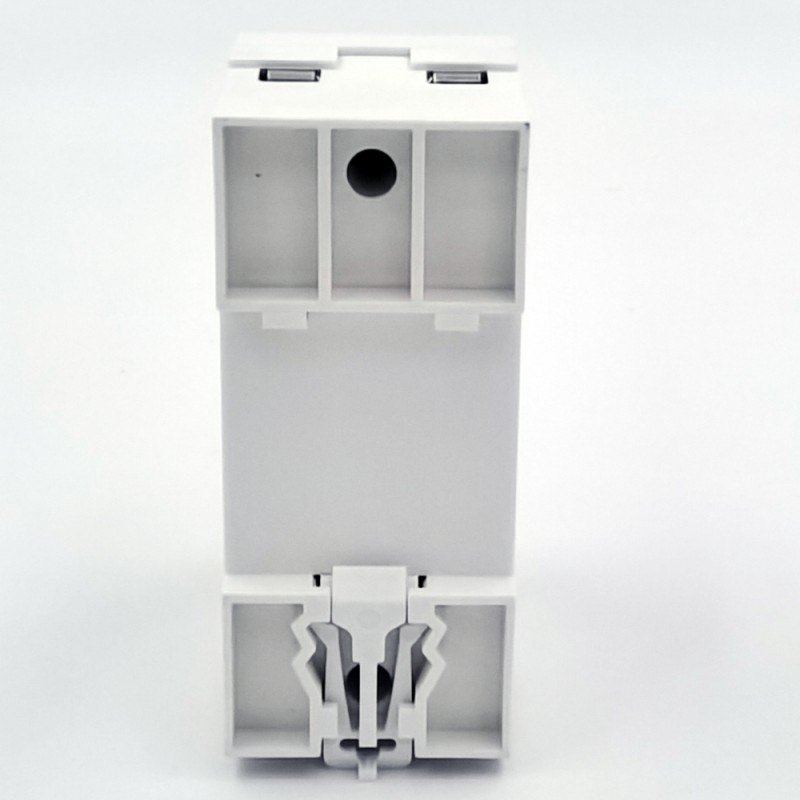

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage
Specifications
Place of Origin :
Zhejiang, China
Rated voltage :
220V/230VAC
Time delay for recovery :
1-999S
Output voltage :
220V
Over-Voltage Protector :
130~300V AC
Product Name :
Over and Under Voltage Protector
Model Number :
MEH-VA-Protector
Brand Name :
OEM
Protection :
Overcurrent Protection, Overvoltage, Undervoltage Protection, Under/Over Voltage
MOQ :
500
Rated Current :
1A-63A Adjustable
Phase :
Single Phase
Warranty :
1 Year
Price :
$3.40
Efficiency :
0.99
Display :
V+A Dual LED
Frequency :
50/60 Hz
Usage :
SVC
Current Type :
AC
Display Type :
Led Display
Under-Voltage Protector :
80~210V AC
Type :
Relay Voltage Stabilizer, Automatic Voltage Regulator, Switching Voltage Regulator
Material :
Copper, PC
Description

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

230V AC Single Phase Adjustable Over and Under Voltage&Current Protector with Over Current Protection Din rail mounting dual LED display 63A

Product Description

Functions:
1.Over-voltage protection


2.Under-voltage protection


3.Over-current protection


4.Automatic recovery


5.Voltage display(voltage measurement)


6.Current display (current measurement)


7. Voltage calibration: Voltage +-10% adjustable. A13


8. Restore factory settings: press the down button for more than 12s


9. Fault inquiry: Press the UP button from more than 12S


Product Parameters:
1.Model number:MEH-VA-Protector


2.Power supply:230VAC 50/60Hz


3.Max.Loading power:1~40A Adjustable(default:40A); 1~63A Adjustable


4.Over-voltage protection value range:230V~300~OFF(default:270V):


Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)


5.Under-voltage protection value range:140V--210V --OFF(default:170V):


Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)


6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A):


Over-current action range:0.1~30 second (default:0.5s)
Over-current r ecovery delay time:1s~500s(default:30s)


7.Power-on delay time:1s~600s(default:10s)


8.Power consumption : <2W


9.Electric machinery life : 100,000 times


10.Installation:35mm DIN rail

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

220V/230V AC Single Phase Din Rail Copper PC Adjustable Protector Relay SVC Automatic Voltage Regulator Dual LED Display Voltage

Technical parameters:

Rated supply voltage AC 220/230V
Operation Voltage Range AC 80v~400V (1 Phase)
Rated Frequency 50/60Hz
Electric Current(>A) setting range 1~63A
Over Voltage(>U) setting range 230~300V AC
Under Voltage(<U) setting range 140~210V AC
Error 2%
>U and <U trip delay 0.5S
Reset/start delay 1s~600s
Voltage measurement accuracy 1%
Rated insulation voltage 400V
Output Contact 1NO
Protection degree IP20
Pollution degree 3
Altiude <=2000m
Operating Temperature -50°C~55°C
Humidity <=50% at 40°C
Storage Temperature -30°C~70°C

Default Setting:

Technical parameter Setting range Step Factory setting
Over Voltage trip value 230~300V 1V 280V
Under Voltage trip value 140~210V 1V 160V
Over Current trip value 1~63A 1A 20A
Reset/start delay 1s~600s 1s 5s

Current Specification 15A 25A 32A 50A 63A
Rated operating current(ln,A) 15 25 32 50 63
Maximum operating current lmax(A,Within 10 Min) 25 30 40 60 80
Max.power of load((KW) 3.6 5.5 7 11 13.9
