Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Specifications
Brand Name :
CSQ
Model Number :
customized products
Certification :
FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Place of Origin :
China
MOQ :
20-50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs per month
Delivery Time :
20-45 work days
Packaging Details :
Foam+carton box
Name :
Customized ceramic sliding bearing
Category :
Ceramic pump bearing
Material :
304 Stainless Steel SSIC+G
Size :
Customized,according to the drawings
Use :
canned motor pump
Package :
Foam+carton box
keyword :
canned motor pump bearing
type :
crucial transmission part
Description

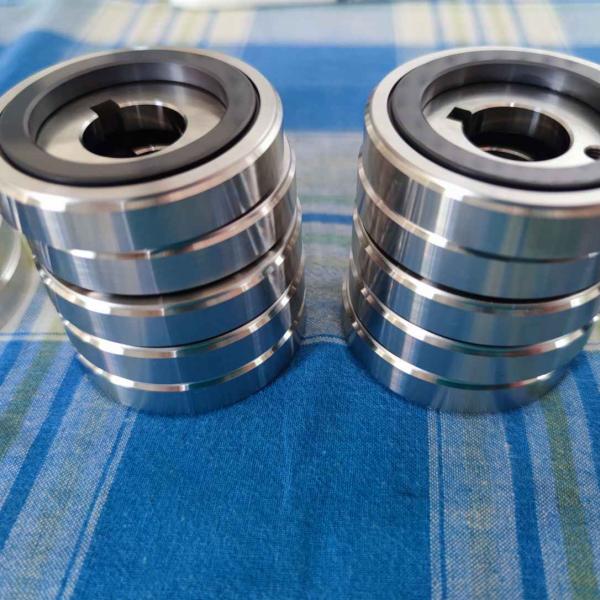

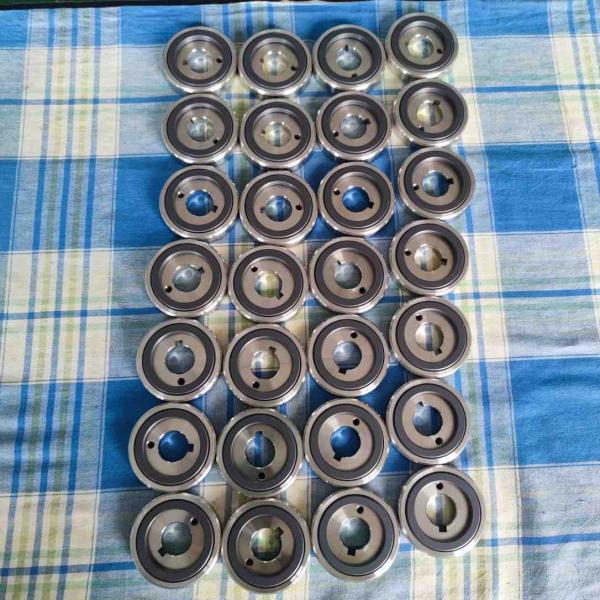

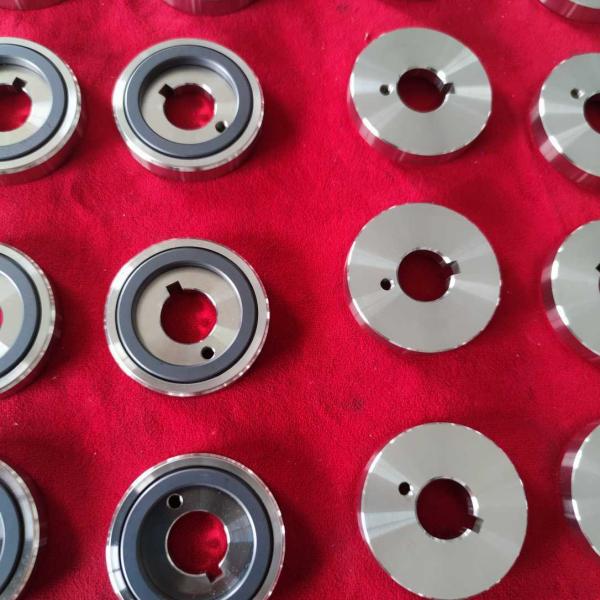

Description of Sliding Bearing for Canned Motor Pump:


Sliding bearing is a crucial transmission part, as the support and rotary unit of canned motor pump. With the excellent corrosion resistance, wear resistance and other properties, silicon carbide (SSiC+G) is one of the best sliding bearing material for the pumps.

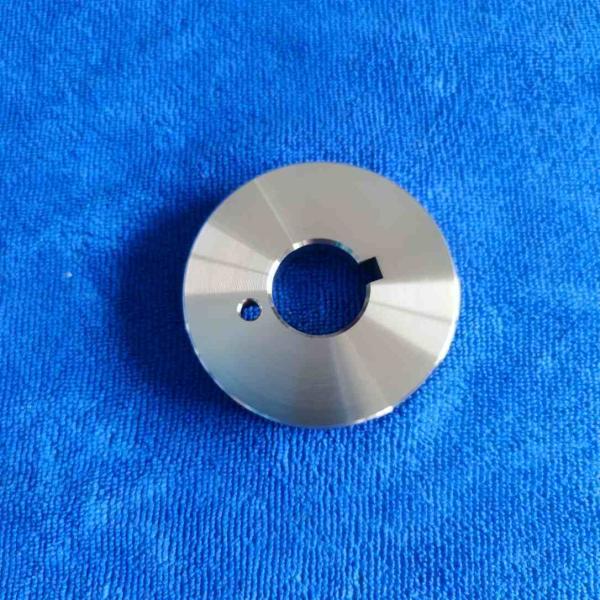

A thrust disk is a mechanical component of sliding bearing, designed to handle axial loads in rotating machinery (e.g., turbines, compressors, motors). Its precision-engineered flat surface distributes axial forces evenly, minimizing friction and ensuring stable operation.


Key Features:

  • High Load Capacity: Made of high-strength alloy steel and SSIC for extreme pressure/temperature resistance.
  • Low Friction: Hardened surface or coatings reduce wear.
  • Dynamic Balance: Precision-balanced to prevent vibrations at high speeds.

Applications of the Thrust Disk:

  • Aerospace (engine thrust systems)
  • Energy (wind turbines, gas turbines)
  • Industrial machinery (pumps, gearboxes)


Application of Canned Motor Pump:


1.The canned motor pump is suitable for typical corrosive environments involving inorganic substances, acids, alkalis, and salts. In these applications, sintered silicon carbide (SSiC) serves as the standard material for sliding bearings.


2.The canned motor pump can operate in both common corrosive conditions and with media that are prone to vaporization.


Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance


Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance


Key Features

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)











Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance







Our factory and processing machine:


We have three factories in China, can meet the needs for different custmers, and also we have advanced pressing, sintering and processing machines.

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion ResistanceSilicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion ResistanceSilicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
