SSiC Ceramic Sliding Bearing Mechanical Seals For Rotating Machinery
SSiC Ceramic Sliding Bearing Mechanical Seals For Rotating Machinery
SSiC Ceramic Sliding Bearing Mechanical Seals For Rotating Machinery
SSiC Ceramic Sliding Bearing Mechanical Seals For Rotating Machinery
Specifications
Brand Name :
CSQ
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 pcs in 35-45 work days
Delivery Time :
35-45 work days
Packaging Details :
Foam+cartom box
Name :
Customized SSiC Mechanical Seals
Category :
Ceramic pump component
Material :
Pressureless sintered silicon carbide
Size :
Customized,according to the drawings
Use :
Rotating Machinery
Pacage :
Foam+cartom box
Description

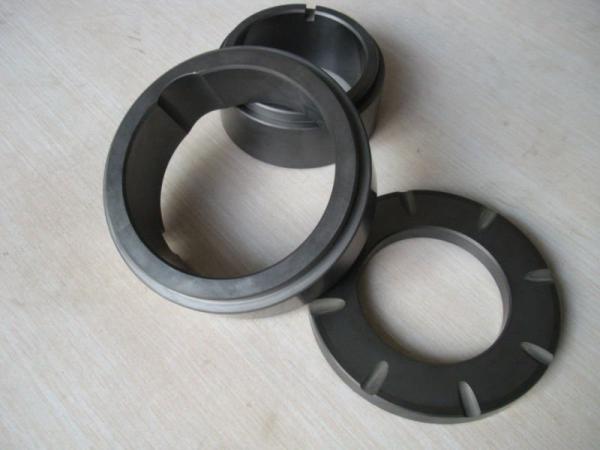

Customized SSiC Mechanical Seals For Rotating Machinery

Description of Customized SSiC Mechanical Seals:

Mechanical seal is a kind of shaft sealing device rotating the michanery, it is formed by at least a pair of end face perpendicular to the rotation axis, and under the force of fluid pressure and compensation institution elastic force (stone force) and with the cooperation of the auxiliary seal, the faces keep seat and the relativ sliding, to prevent the fluid leakage.

Generally it consists of two segments, namely rotating ring and static ring. These rings can still realize rotary motion for each other with smaller resistance, under the much more pressure.

Main application of Customized SSiC Mechanical Seals:

The rotating ring and static ring is generally formed by the group of pure SSiC rings, or one SSiC and the othe is SSiC+C material.

Rotating and static ring: a pair of pure SSiC rings, applicable for strong corrosive medium.

Rotating and static ring: a SSiC ring, and a SiC+C, applicable for the medium easy to vaporized.

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

SSiC Ceramic Sliding Bearing Mechanical Seals For Rotating Machinery
