Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps
Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps
Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps
Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps
Specifications
Brand Name :
CSQ
Model Number :
Customized
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 pcs in 40-50 days
Delivery Time :
40-50 work days
Packaging Details :
Foam+cartom box
Name :
Ceramic spiral bushing
Category :
Ceramic sliding bearing
Material :
Silicon carbide or zirconia
Size :
Customized, according to the drawings
Use :
In Pump
MOQ :
20 pieces
Pacage :
Foam+cartom box
Delivery time :
40-50 work days
Description

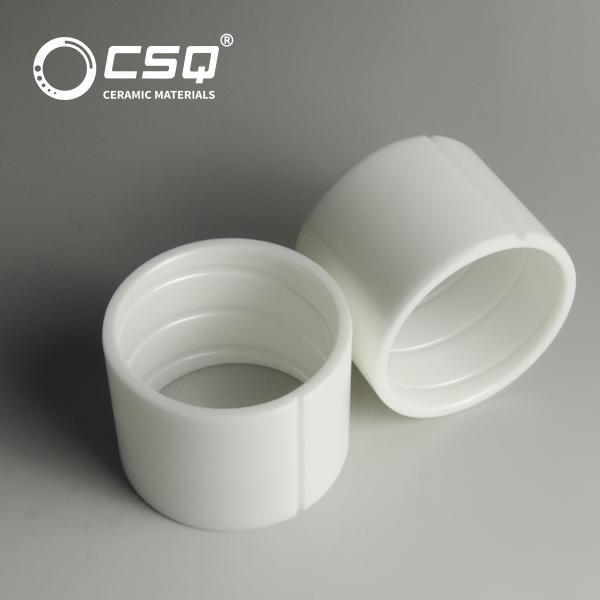

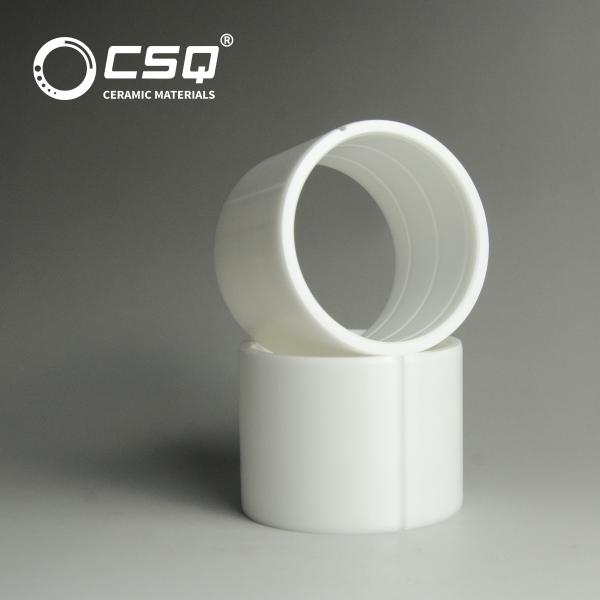

Customized Spiral Bushing For Pumps Of Silicon Carbide Or Zirconia

Description of ceramic spiral bushing:

Because of the excellent properties of silicon carbide and zirconia material, especially their good chemical stability and corrosion resistance, they are widely used in the industries with special working condition. Our company can customize the spiral bushings of SSiC or ZrO2 according to customer's drawings of many kinds of size. We had stably supplied ceramic spiral bushings for European pump companies, like Witte Maag for many years.

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)


►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps
