High Temp Ceramic Sliding Bearing Canned Motor Pump Pressureless Sintered Silicon Carbide
High Temp Ceramic Sliding Bearing Canned Motor Pump Pressureless Sintered Silicon Carbide
High Temp Ceramic Sliding Bearing Canned Motor Pump Pressureless Sintered Silicon Carbide
High Temp Ceramic Sliding Bearing Canned Motor Pump Pressureless Sintered Silicon Carbide
High Temp Ceramic Sliding Bearing Canned Motor Pump Pressureless Sintered Silicon Carbide
High Temp Ceramic Sliding Bearing Canned Motor Pump Pressureless Sintered Silicon Carbide
Specifications
Brand Name :
CSQ
Place of Origin :
China
MOQ :
20 pcs
Payment Terms :
T/T
Delivery Time :
35-45 work days
Packaging Details :
Foam+cartom box
Price :
Negotiable
Supply Ability :
20 pcs in 35-45 work days
Name :
Customized ceramic sliding bearing
Category :
Ceramic pump bearing
Material :
SSiC ( Pressureless sintered silicon carbide )
Size :
Customized
Use :
Canned Motor Pump
Pacage :
Foam+cartom box
MOQ :
20 pieces
Delivery time :
35-45 work days, according to the drawings
Description

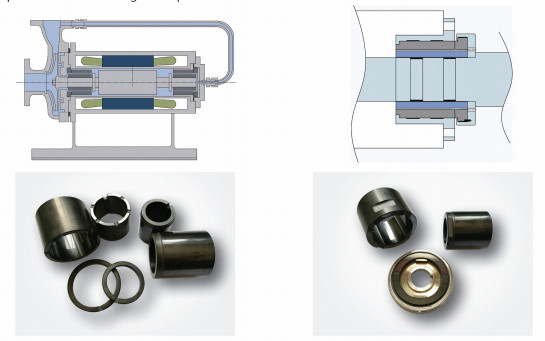

Customized ceramic sliding bearing of SSiC for canned motor pump

Description of Customized ceramic sliding bearing:

Sliding bearing is a crucial transmission part, as the support and rotary unit of canned motor pump. With the excellent corrosion resistance, wear resistance and other properties, silicon caibide (SSiC) is one of the best sliding bearing material for the pumps.

Main appilication of Canned motor pump:

1. It is used in common corrosive condition, such as the medium of inorganic matter, acid, alkaline and salt. In such condition, SSiC (sintered) is taken as standard sliding bearing.

2. It is used in common corrosive condition, and the medium easy to vaporized

Why choose us:

Although SSiC material has many good properties, but it's also have disadvantage fragility, which is a huge manufacturing problem for many other companys. Our company can optimize and design the pump sliding bearings for the customers, and to realize the best performance. Our company has many years of experiences in manufacturing these parts. We are the supplier for English HMD/Germany Maag/Germany Witte for many years.

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

High Temp Ceramic Sliding Bearing Canned Motor Pump Pressureless Sintered Silicon Carbide
